0-10 — CYLINDER HEAD COVER (#162144) — 121 parça

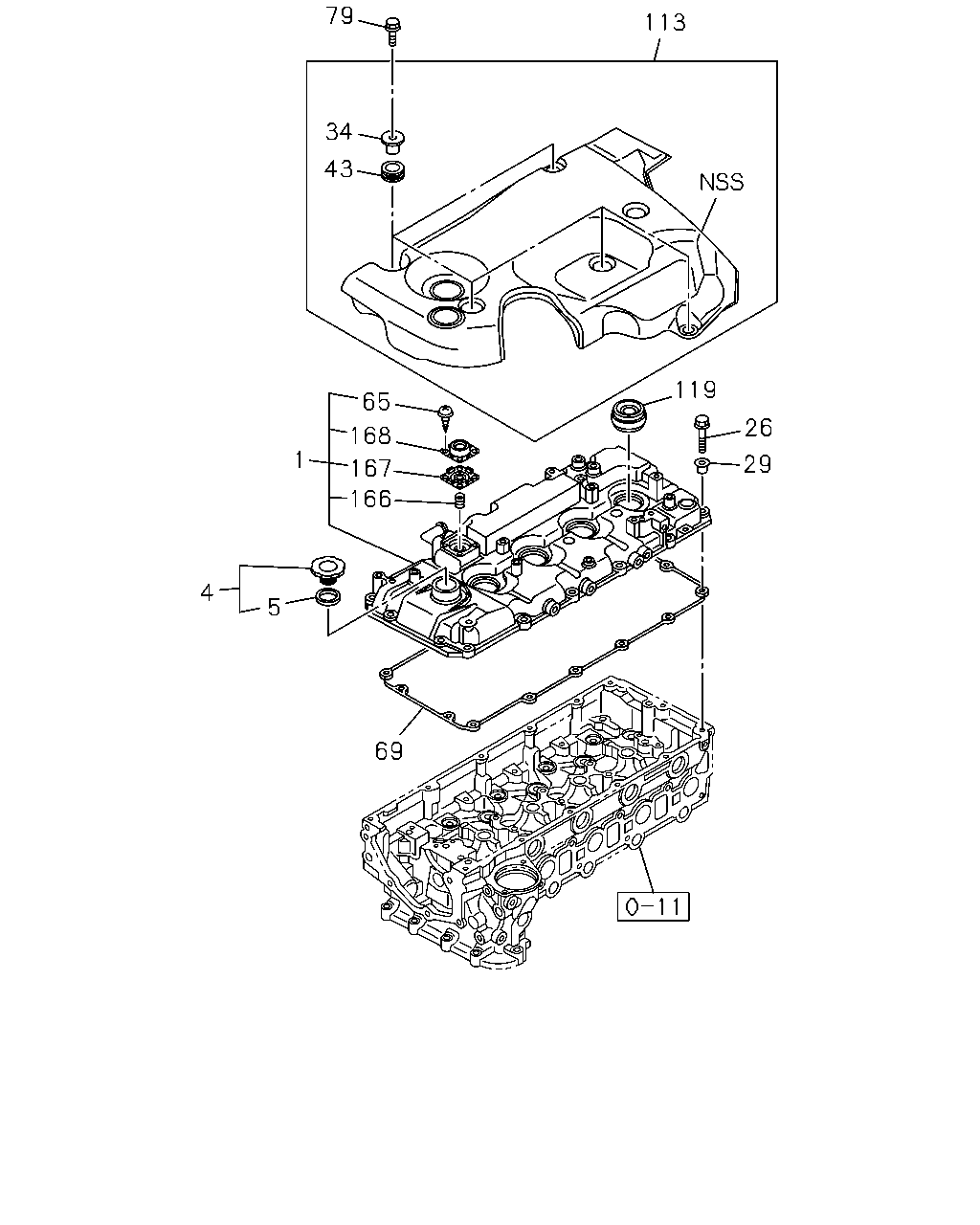

79 43 34 113 4 5 65 166 167 168 1 26 29 119 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1509-	●
1	00.386 COVER; CYL HD TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98275-043-2	01	1	1509-		●
1	00.386 COVER; CYL HD	8-98220-002-3	01	1	1506-1508		●
1	00.386 COVER; CYL HD EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98220-002-3	01	1	1509-		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1506-1508		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1509-	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1506-1508		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1509-	●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	15	1	1506-		●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	1509-	●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	15	1	1509-		●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	15	1	1506-1508		●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1509-	●
34	00.413 BUSHING; MTG RUBBER,CYL HD COVER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98036-120-0	06	1	1509-		●
34	00.413 BUSHING; MTG RUBBER,CYL HD COVER	8-98036-120-0	05	1	1506-1508		●
34	00.413 BUSHING; MTG RUBBER,CYL HD COVER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98036-120-0	05	1	1509-		●
43	00.413 RUBBER; MTG,HD COVER,OUTER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98036-119-0	06	1	1509-		●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-98036-119-0	05	1	1506-1508		●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98036-119-0	05	1	1509-		●
65	00.413 SCREW; ADAPTER 02.361 M5X10 W/LK WASHER	0-36220-510-0	04	1	1509-		●
65	00.413 SCREW; ADAPTER 02.361 M5X10 W/LK WASHER	0-36220-510-0	04	1	1506-1508		●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1509-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-200-0	01	1	1509-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-200-0	01	1	1506-1508		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	1509-	●
79	00.293 BOLT; COVER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1509-		●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1509-	●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1506-1508		●
79	00.293 BOLT; COVER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1509-		●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1509-	●
113	00.386 COVER; CYL HEAD COVER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98257-602-1	01	1	1509-		●
113	00.386 COVER; CYL HEAD COVER	8-98225-306-0	01	1	1506-1508		●
113	00.386 COVER; CYL HEAD COVER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98225-306-0	01	1	1509-		●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1506-1508		●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1509-	●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1506-1508		●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1509-	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1506-1508		●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1509-	●	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1506-1508		●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1509-	●	●

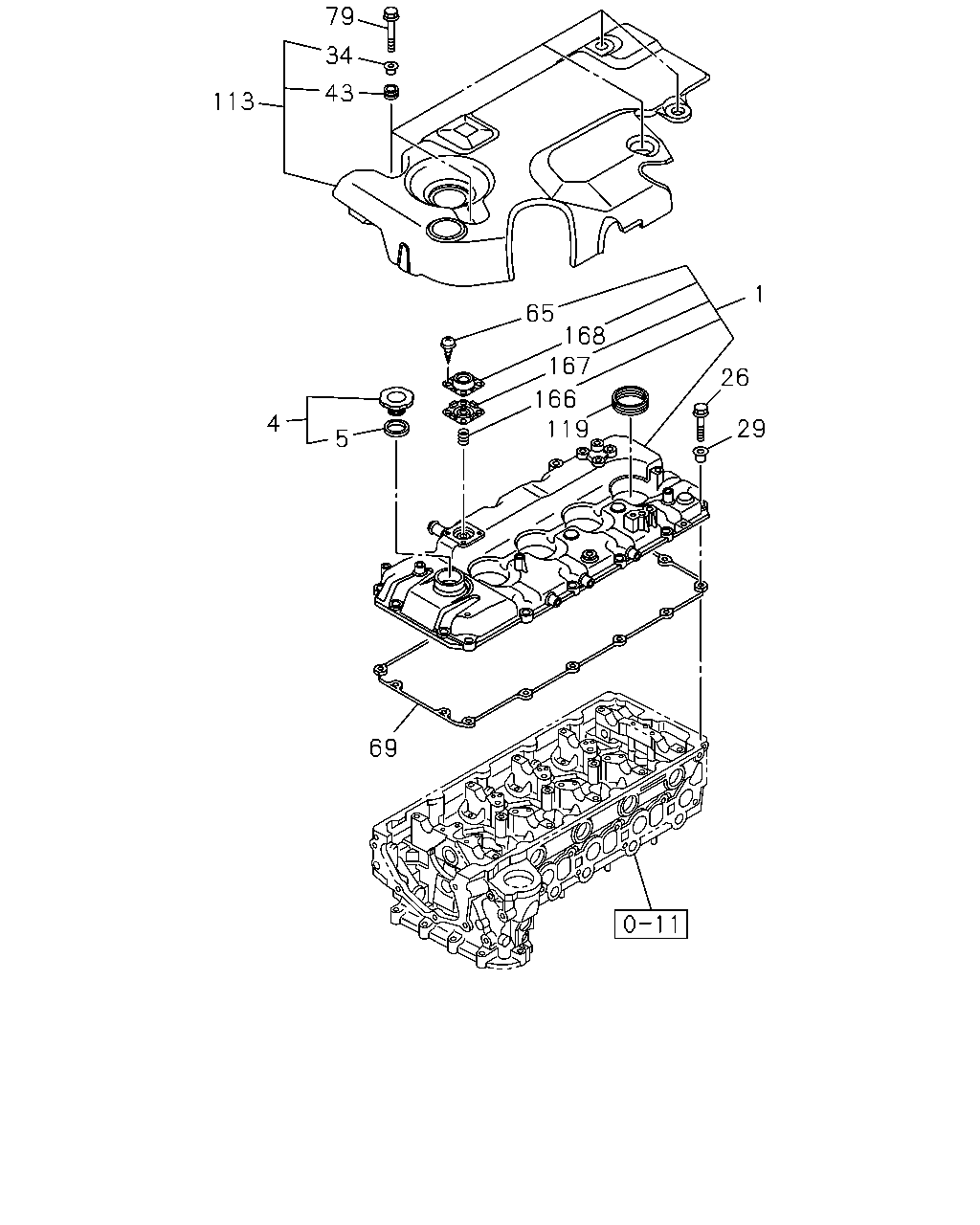

79 34 43 113 119 26 29 1 65 168 166 167 5 4 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1509-	●
1	00.386 COVER; CYL HD TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98275-043-2	01	1	1509-		●
1	00.386 COVER; CYL HD	8-98220-002-3	01	1	1506-1508		●
1	00.386 COVER; CYL HD EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98220-002-3	01	1	1509-		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1506-1508		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1509-	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1506-1508		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1509-	●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	15	1	1506-		●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	1509-	●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	15	1	1509-		●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	15	1	1506-1508		●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1509-	●
34	00.413 BUSHING; MTG RUBBER,CYL HD COVER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98036-120-0	06	1	1509-		●
34	00.413 BUSHING; MTG RUBBER,CYL HD COVER	8-98036-120-0	05	1	1506-1508		●
34	00.413 BUSHING; MTG RUBBER,CYL HD COVER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98036-120-0	05	1	1509-		●
43	00.413 RUBBER; MTG,HD COVER,OUTER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98036-119-0	06	1	1509-		●
43	00.413 RUBBER; MTG,HD COVER,OUTER	8-98036-119-0	05	1	1506-1508		●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98036-119-0	05	1	1509-		●
65	00.413 SCREW; ADAPTER 02.361 M5X10 W/LK WASHER	0-36220-510-0	04	1	1509-		●
65	00.413 SCREW; ADAPTER 02.361 M5X10 W/LK WASHER	0-36220-510-0	04	1	1506-1508		●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1509-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-200-0	01	1	1509-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-200-0	01	1	1506-1508		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	1509-	●
79	00.293 BOLT; COVER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1509-		●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1509-	●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1506-1508		●
79	00.293 BOLT; COVER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1509-		●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1509-	●
113	00.386 COVER; CYL HEAD COVER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98257-602-1	01	1	1509-		●
113	00.386 COVER; CYL HEAD COVER	8-98225-306-0	01	1	1506-1508		●
113	00.386 COVER; CYL HEAD COVER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98225-306-0	01	1	1509-		●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1506-1508		●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1509-	●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1506-1508		●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1509-	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1506-1508		●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1509-	●	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1506-1508		●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1509-	●	●

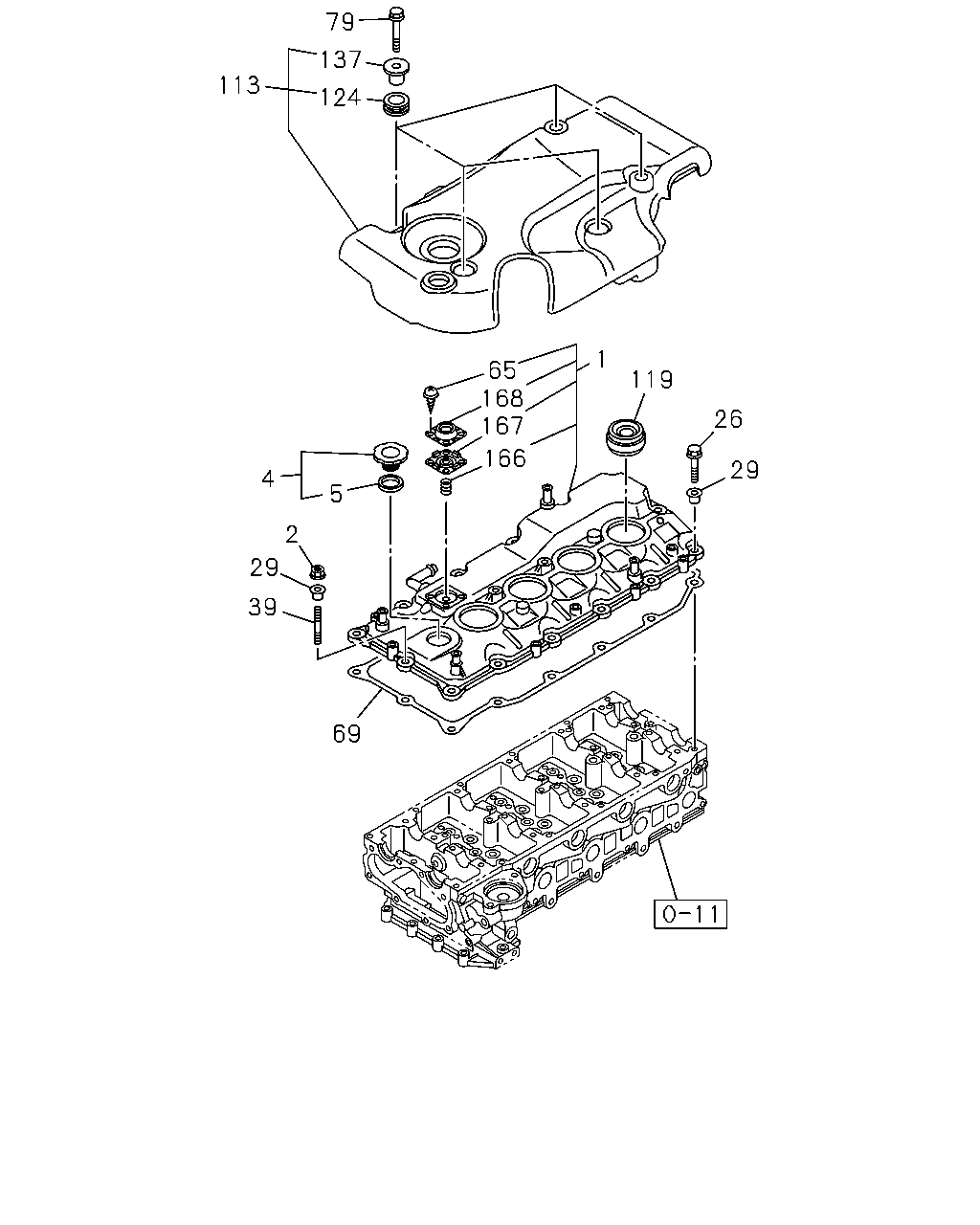

113 79 124 137 1 119 29 26 65 166 167 168 5 4 2 29 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1509-	●
1	00.386 COVER; CYL HD TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98275-043-2	01	1	1509-		●
1	00.386 COVER; CYL HD	8-98220-002-3	01	1	1506-1508		●
1	00.386 COVER; CYL HD EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98220-002-3	01	1	1509-		●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1509-	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1506-1508		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1509-	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1506-1508		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1509-	●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	15	1	1506-		●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	1509-	●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	15	1	1509-		●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	15	1	1506-1508		●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1509-	●
39	00.413 STUD; COVER,HD M6X30 L=38	8-97372-795-0	01	1	1509-	●
65	00.413 SCREW; ADAPTER 02.361 M5X10 W/LK WASHER	0-36220-510-0	04	1	1509-		●
65	00.413 SCREW; ADAPTER 02.361 M5X10 W/LK WASHER	0-36220-510-0	04	1	1506-1508		●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1509-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-200-0	01	1	1509-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-200-0	01	1	1506-1508		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	1509-	●
79	00.293 BOLT; COVER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1509-		●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1509-	●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	05	1	1506-1508		●
79	00.293 BOLT; COVER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1509-		●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1509-	●
113	00.386 COVER; CYL HEAD COVER TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98257-602-1	01	1	1509-		●
113	00.386 COVER; CYL HEAD COVER	8-98225-306-0	01	1	1506-1508		●
113	00.386 COVER; CYL HEAD COVER EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-98225-306-0	01	1	1509-		●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1506-1508		●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1509-	●	●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	1509-	●
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	1509-	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1506-1508		●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1509-	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1506-1508		●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1509-	●	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1506-1508		●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1509-	●	●
