◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51627 - NLR/NMR(85)LHD EURO5B+ ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#162143) — 24 parça

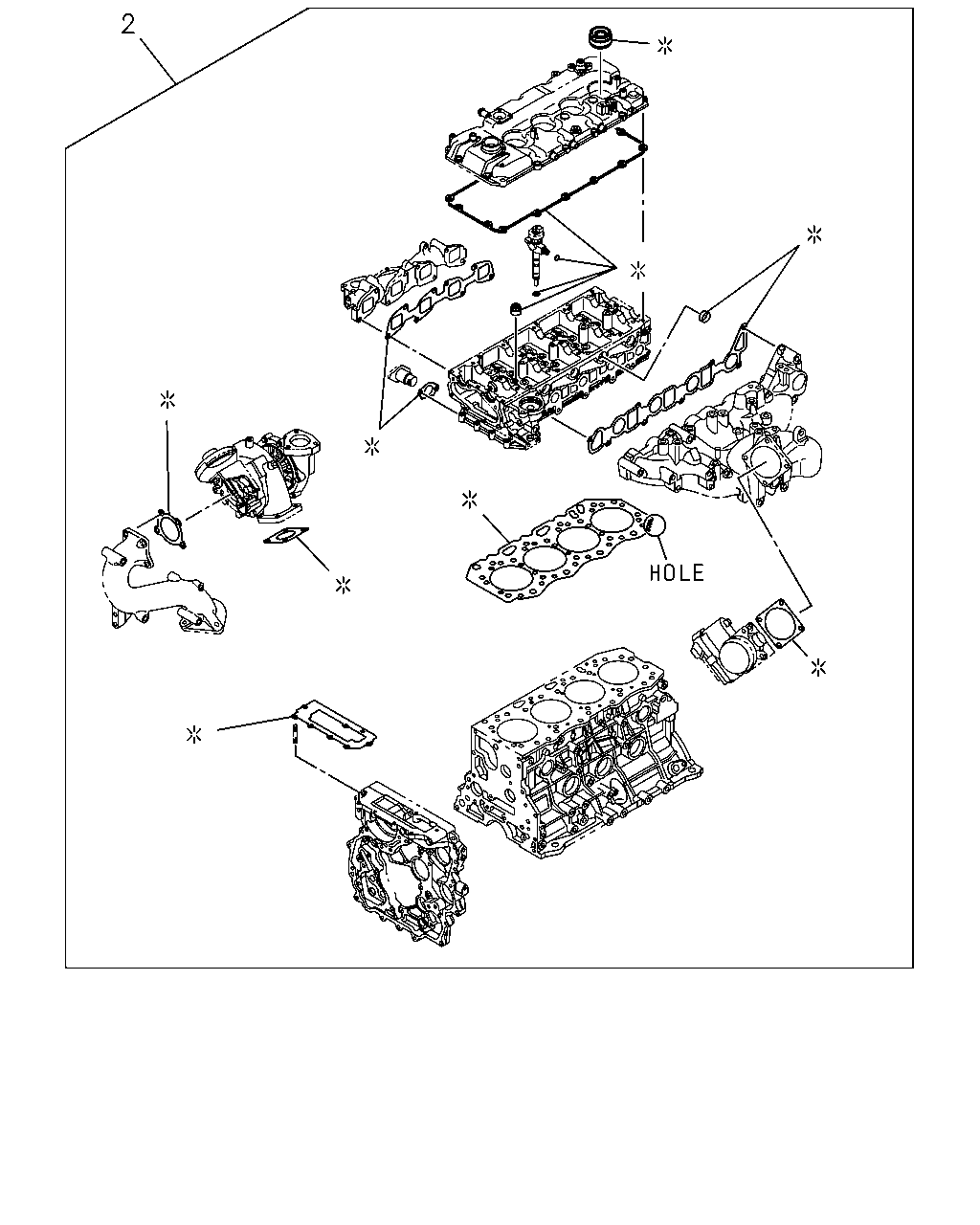

çizim 479031
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-NOTCH 		5-87817-647-0 01 1 1509- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-NOTCH 		5-87817-648-0 01 1 1509- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-NOTCH 		5-87817-649-0 01 1 1509- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.14 1-HOLE 		5-87817-505-0 01 1 1509- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.19 2-HOLE 		5-87817-506-0 01 1 1509- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.24 3-HOLE 		5-87817-507-0 01 1 1509- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.14 1-HOLE 		5-87817-499-0 01 1 1506-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.14 1-HOLE 		5-87817-499-0 01 1 1509- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.19 2-HOLE 		5-87817-500-0 01 1 1506-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.19 2-HOLE 		5-87817-500-0 01 1 1509- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.24 3-HOLE 		5-87817-501-0 01 1 1506-1508 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.24 3-HOLE 		5-87817-501-0 01 1 1509- ●

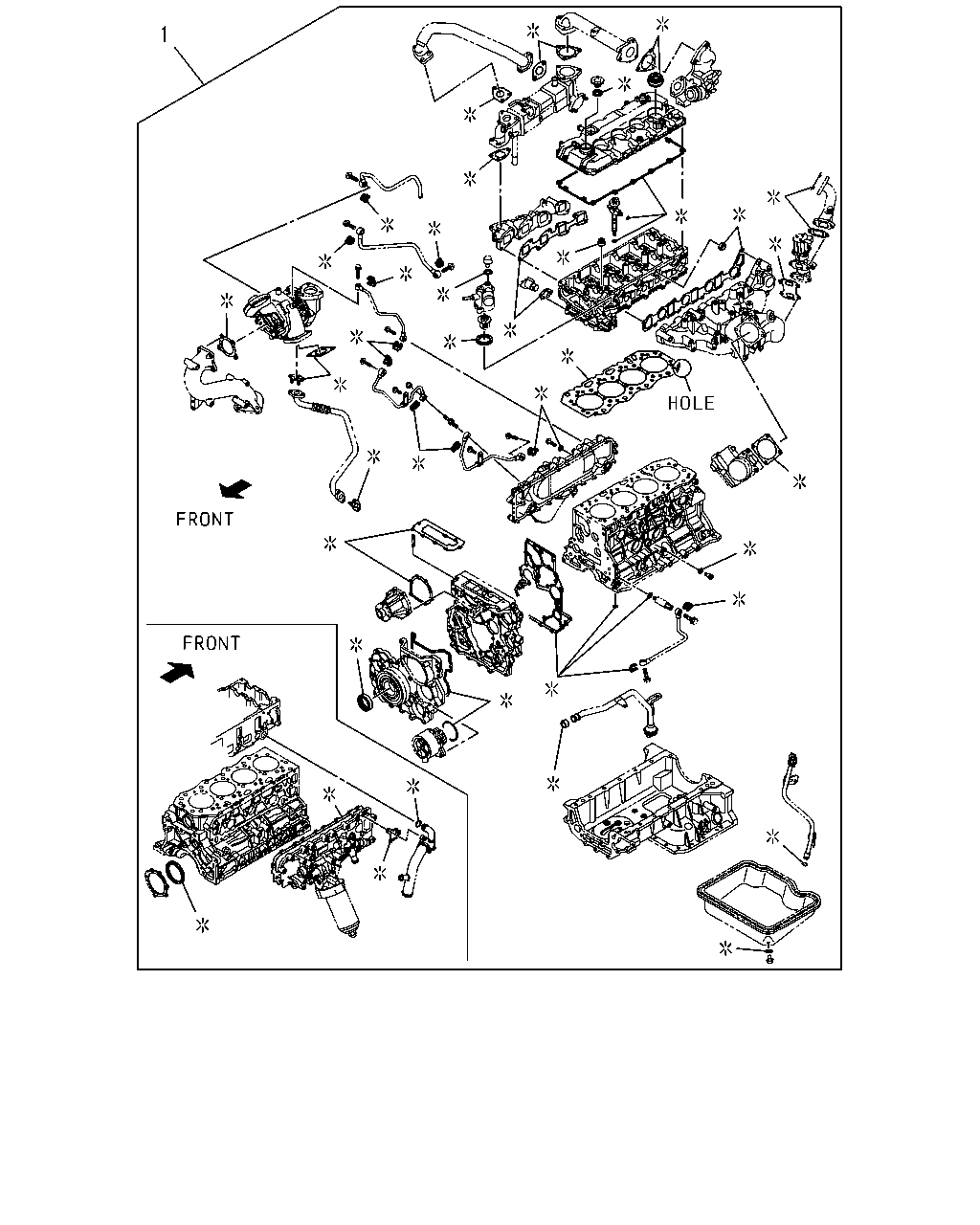

çizim 480131
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-NOTCH 		5-87817-644-0 01 1 1509- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-NOTCH 		5-87817-645-0 01 1 1509- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-NOTCH 		5-87817-646-0 01 1 1509- ●
1 00.010 GASKET SET; ENG OVERHAUL
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.14 1-HOLE 		5-87817-514-0 01 1 1509- ●
1 00.010 GASKET SET; ENG OVERHAUL
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.19 2-HOLE 		5-87817-515-0 01 1 1509- ●
1 00.010 GASKET SET; ENG OVERHAUL
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.24 3-HOLE 		5-87817-516-0 01 1 1509- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.14 1-HOLE 		5-87817-496-0 01 1 1506-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.14 1-HOLE 		5-87817-496-0 01 1 1509- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.19 2-HOLE 		5-87817-497-0 01 1 1506-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.19 2-HOLE 		5-87817-497-0 01 1 1509- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.24 3-HOLE 		5-87817-498-0 01 1 1506-1508 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) T=1.24 3-HOLE 		5-87817-498-0 01 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
