◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#162140) — 21 parça

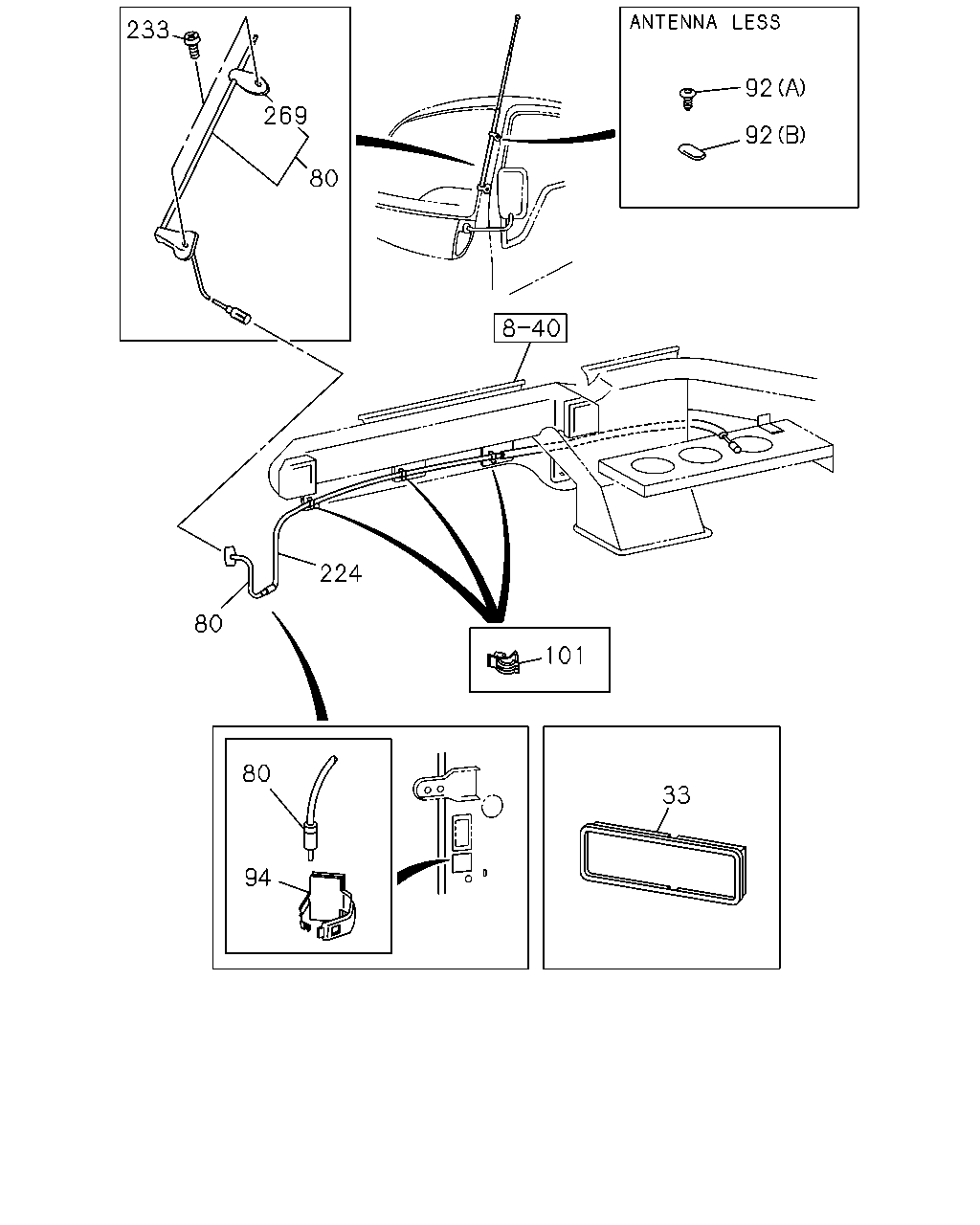

çizim 480886
233 269 80 92 92 224 80 80 94 33 101
BalonParca AdiParca NoAdetTipApplied Date
33 COVER; RADIO 8-97856-203-3 01 1 1507-
80 ANTENNA
ANTENNA<U73> 		8-97211-565-0 01 1 1507-
92 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (A) OD=12 L=14.8 		8-94279-921-0 01 1 1507-
92 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-3 01 1 1507-
94 CLIP; ANTENNA FEEDER
ANTENNA<U73> 		1-09987-155-3 01 1 1507-
101 CLIP; FEEDER TO BRKT
ANTENNA<U73> ID=7 		5-09707-053-0 03 1 1507-
224 CABLE; EXT,FEEDER
ANTENNA<U73> 		8-97213-766-0 01 1 1507-
233 SCREW
ANTENNA<U73> M6X20 		8-97120-686-0 01 1 1507-
233 SCREW
ANTENNA<U73> M6X16 		8-97123-696-0 01 1 1507-
269 SUPPORT KIT; ANTENNA
ANTENNA<U73> 		8-97219-080-0 01 1 1507-

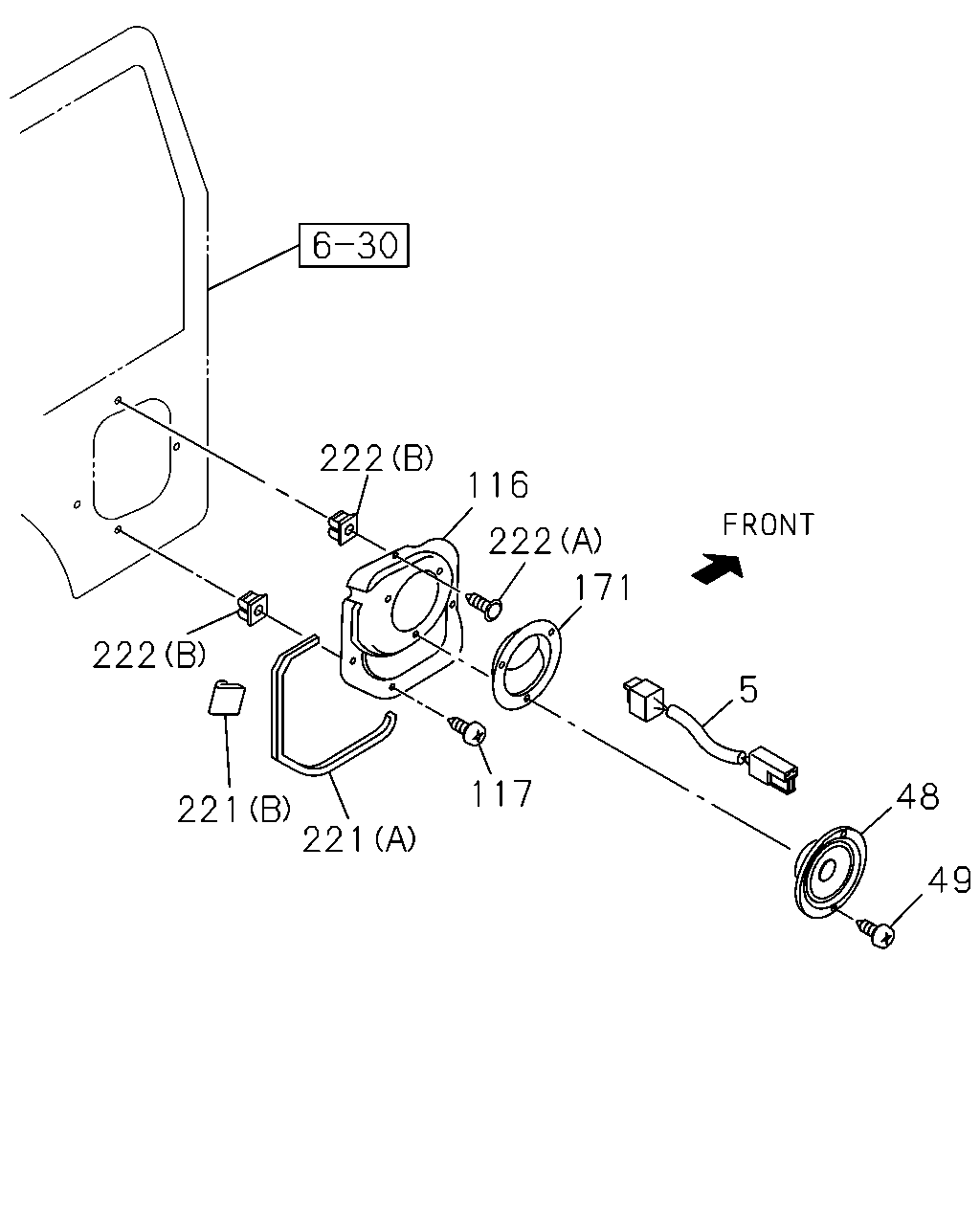

çizim 480893
222 116 222 171 5 48 49 221 117 221 222
BalonParca AdiParca NoAdetTipApplied Date
5 HARNESS; EXT
2-SPEAKER SYSTEM BASE<U95> 		8-97131-327-0 02 1 1507-
48 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 1507-
49 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1507-
116 PANEL; SPEAKER,FRT DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97852-324-3 01 1 1507-
116 PANEL; SPEAKER,FRT DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97852-325-3 01 1 1507-
117 SCREW; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1507-
171 COVER; SPEAKER
2-SPEAKER SYSTEM BASE<U95> 		8-97852-331-4 02 1 1507-
221 SEAL; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (A) 		8-97852-327-5 02 1 1507-
221 SEAL; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (B) 		8-97852-601-2 02 1 1507-
222 GROMMET; SCREW,SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (A) 		1-09987-144-0 02 1 1507-
222 GROMMET; SCREW,SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1507-
