Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

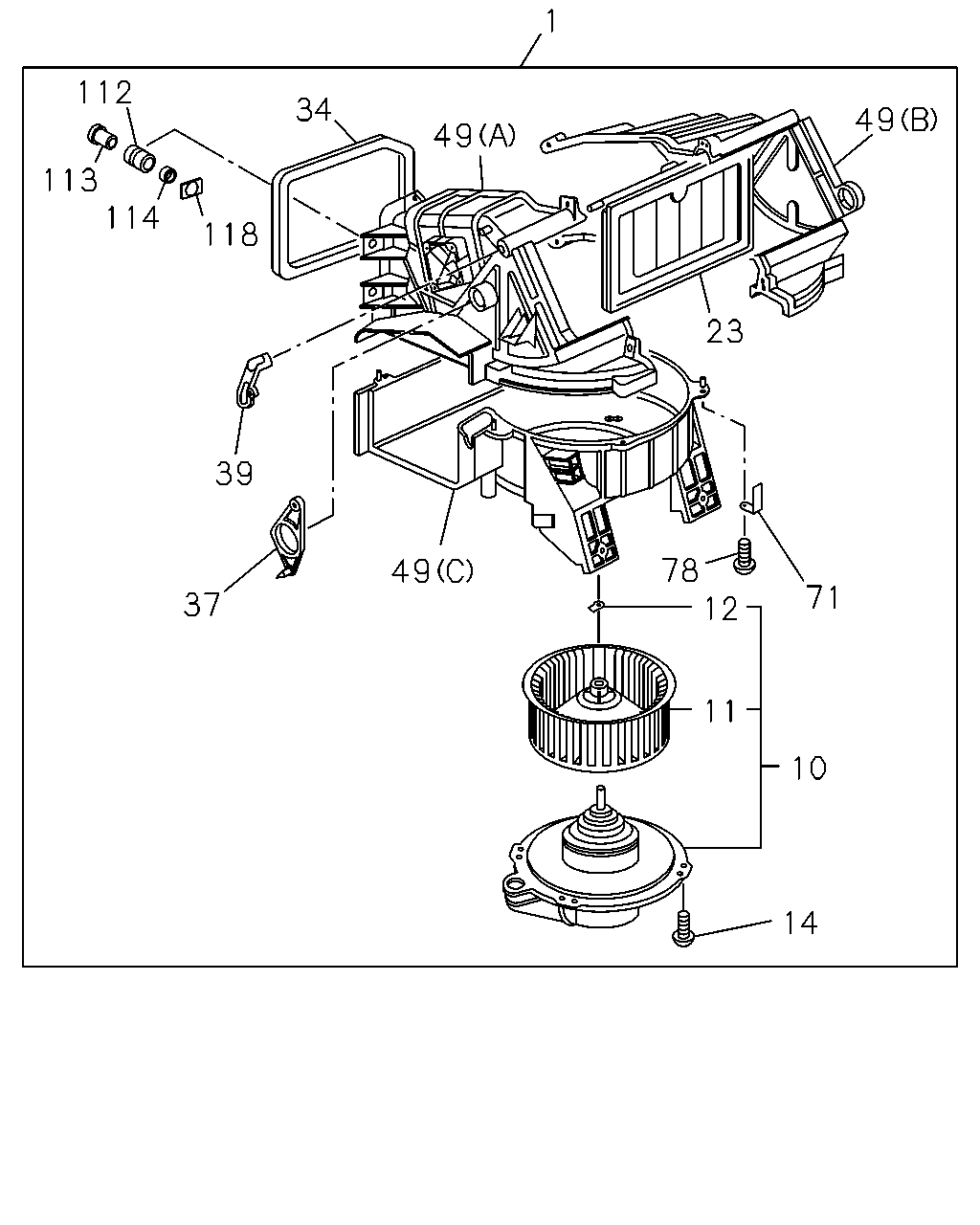

8-73 - BLOWER UNIT
▶
8-73 — BLOWER UNIT
(#162138) — 18 parça
112
113
114
118
34
49
1
49
23
49
39
37
78
71
12
11
10
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
8-97288-167-0
01
1
1507-
10
MOTOR ASM; FAN,BLOWER UNIT
8-97211-953-0
01
1
1507-
11
IMPELLER; FAN MOTOR
8-97096-067-0
01
1
1507-
12
RING; SNAP,FAN MOTOR
8-94243-962-0
01
1
1507-
14
SCREW; COVER TO CASE
M5X20
9-09829-324-1
04
1
1507-
23
SHUTTER; BLOWER UNIT
8-97096-640-3
01
1
1507-
34
LINING; BLOWER UNIT
8-97085-612-1
01
1
1507-
37
LEVER; MODE LEVER
8-97101-667-1
01
1
1507-
39
LEVER; SHUTTER,BLOWER UNIT
8-97101-666-1
01
1
1507-
49
CASE; BLOWER UNIT
(A)
8-97101-647-3
01
1
1507-
49
CASE; BLOWER UNIT
(B)
8-97101-648-1
01
1
1507-
49
CASE; BLOWER UNIT
(C)
8-97101-649-0
01
1
1507-
71
CLIP; HARNESS
8-94158-260-0
01
1
1507-
78
SCREW; CASE TO CASE
M4X16
8-94324-850-0
08
1
1507-
112
ISOLATOR; CASE
8-97096-641-0
02
1
1507-
113
BUSHING; ISOLATOR
8-97096-642-0
02
1
1507-
114
NUT; ISOLATOR
M8 FLANGE
5-09440-005-0
02
1
1507-
118
BRACKET; BUSHING
8-97107-979-0
01
1
1507-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
