8-65 — CONTROL LEVER; HEATER AND AIR CON (#162137) — 14 parça

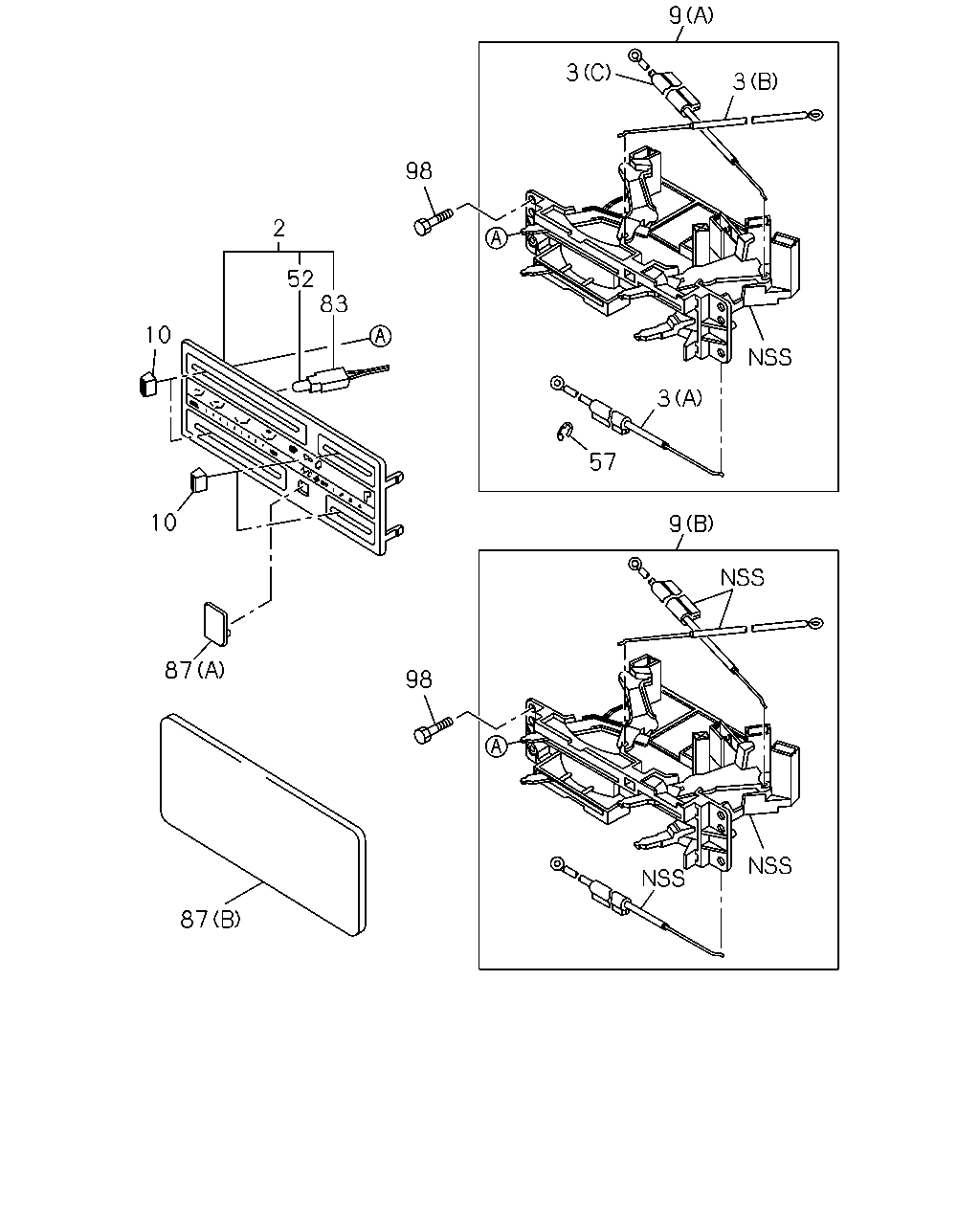

çizim 480861
9 3 3 3 98 57 9 98 87 87 10 10 2 52 83
BalonParca AdiParca NoAdetTipApplied Date
2 PANEL ASM; CONT,ILLUMINATION 8-97048-330-1 01 1 1507-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (A) MIX 		8-97101-660-2 01 1 1507-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (B) MODE 		8-97101-674-2 01 1 1507-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (C) FRESH 		8-97101-675-3 01 1 1507-
9 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) 		8-97381-198-0 01 1 1507-
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41) (A) 		8-97069-831-1 01 1 1507-
10 KNOB; CONT LEVER
FORGED AIR VENTILATION(C39) 		8-97114-430-0 02 1 1507-
10 KNOB; CONT LEVER
HEATER & DEFROSTER(C41) 		8-97114-430-0 04 1 1507-
52 BULB; PANEL ILLUMINATION
14V 140MA 		8-97100-290-0 01 1 1507-
57 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41) 		8-97311-509-0 01 1 1507-
83 HARNESS; CONT PANEL 8-97308-566-0 01 1 1507-
87 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39) (B) 		8-97071-228-0 01 1 1507-
87 CAP; A/C SWITCH
(A) 		8-97065-448-2 01 1 1507-
98 SCREW; CONT PANEL
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1507-
