◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#162136) — 62 parça

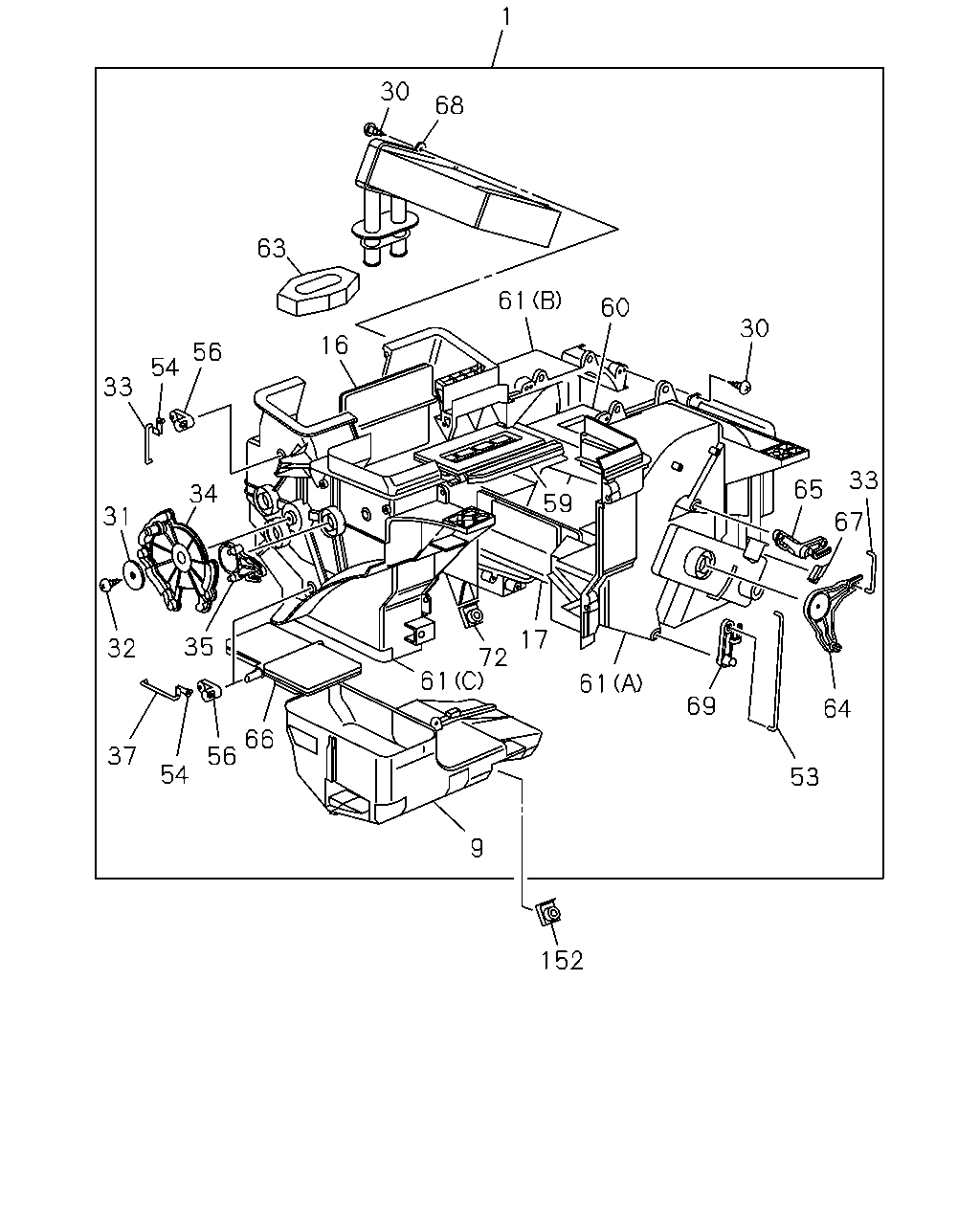

çizim 480958
1 30 61 60 30 65 67 64 53 69 61 17 72 61 35 66 56 54 37 32 31 33 54 56 34 16 63 59 33 9 152 68
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-199-0 01 1 1507-
1 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-500-0 01 1 1507-
9 DUCT; HTR UNIT 8-97101-638-0 01 1 1507-
16 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 1507-
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) 		8-97101-640-0 01 1 1507-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-94324-850-0 10 1 1507-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 11 1 1507-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1507-
32 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M5X20 		9-09829-324-1 01 1 1507-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X16 		8-94248-820-0 01 1 1507-
33 ROD; SHUTTER LEVER
FORGED AIR VENTILATION(C39) 		8-97087-566-0 01 1 1507-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		8-97087-566-0 02 1 1507-
34 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 1507-
35 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 1507-
37 ROD; LEVER 8-97101-677-2 02 1 1507-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		8-97087-567-1 01 1 1507-
54 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 1507-
56 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 1507-
59 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 1507-
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97087-556-1 01 1 1507-
61 CASE; HTR UNIT
(A) 		8-97101-634-4 01 1 1507-
61 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 1507-
61 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 1507-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		8-97131-323-0 01 1 1507-
64 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97101-670-1 01 1 1507-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) 		8-97200-276-0 01 1 1507-
66 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 1507-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-94337-654-0 01 1 1507-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-94337-654-0 02 1 1507-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98238-504-0 01 1 1507-
69 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-97101-671-0 01 1 1507-
72 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 1507-
152 NUT; HTR UNIT 8-97107-811-0 01 1 1507-

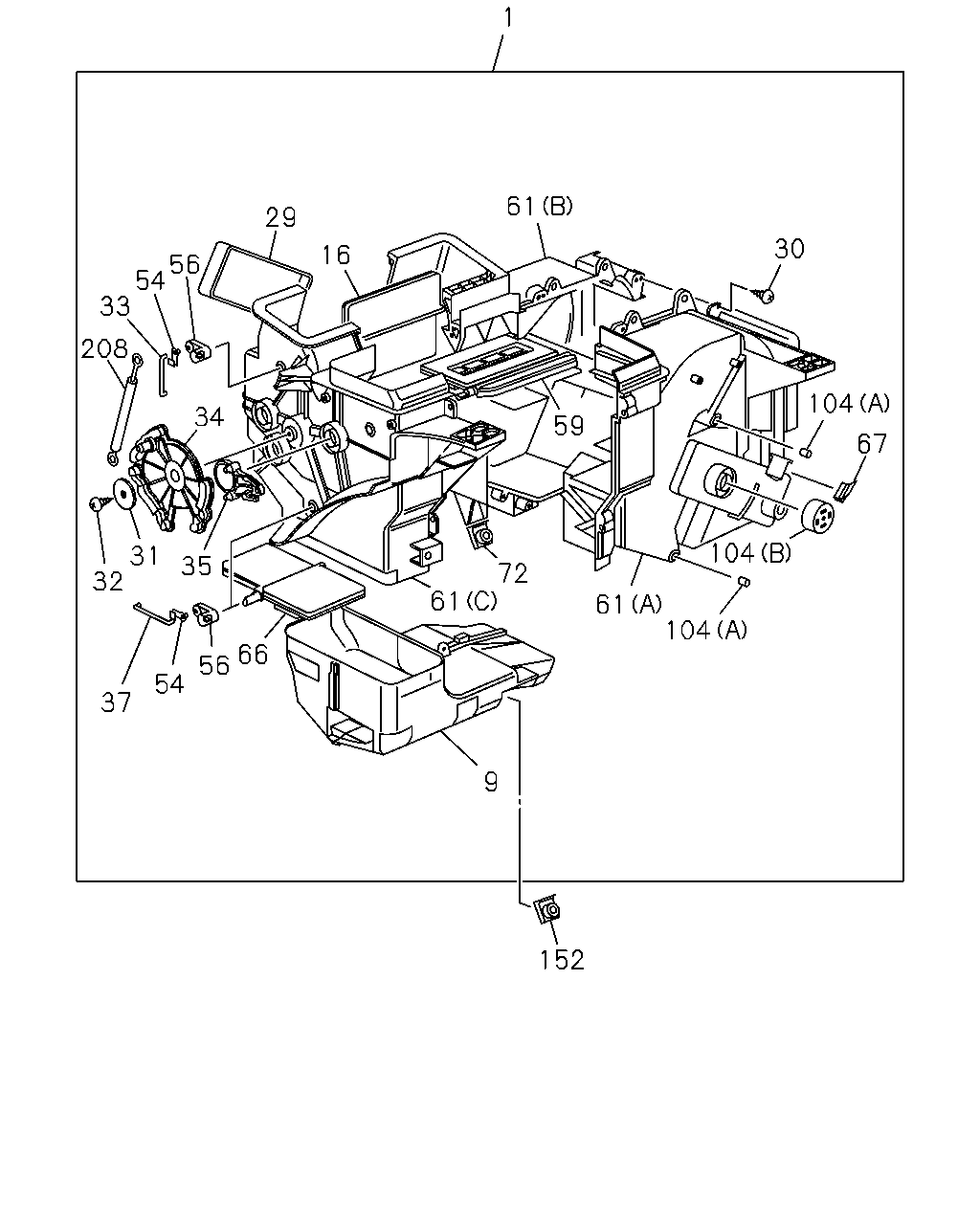

çizim 480965
1 29 56 54 33 208 34 16 61 30 59 72 104 104 61 61 66 56 54 37 35 31 32 9 152 104 67
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION(C39) 		8-97381-199-0 01 1 1507-
1 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-500-0 01 1 1507-
9 DUCT; HTR UNIT 8-97101-638-0 01 1 1507-
16 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 1507-
29 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-97102-661-0 01 1 1507-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-94324-850-0 10 1 1507-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 11 1 1507-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1507-
32 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M5X20 		9-09829-324-1 01 1 1507-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X16 		8-94248-820-0 01 1 1507-
33 ROD; SHUTTER LEVER
FORGED AIR VENTILATION(C39) 		8-97087-566-0 01 1 1507-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		8-97087-566-0 02 1 1507-
34 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 1507-
35 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 1507-
37 ROD; LEVER 8-97101-677-2 02 1 1507-
54 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 1507-
56 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 1507-
59 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 1507-
61 CASE; HTR UNIT
(A) 		8-97101-634-4 01 1 1507-
61 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 1507-
61 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 1507-
66 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 1507-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-94337-654-0 01 1 1507-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-94337-654-0 02 1 1507-
72 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 1507-
104 CAP; CASE,HTR UNIT
FORGED AIR VENTILATION(C39) (A) 		8-94328-657-0 04 1 1507-
104 CAP; CASE,HTR UNIT
FORGED AIR VENTILATION(C39) (B) 		8-94387-703-0 01 1 1507-
152 NUT; HTR UNIT 8-97107-811-0 01 1 1507-
208 CABLE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98008-958-0 01 1 1507-
