Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

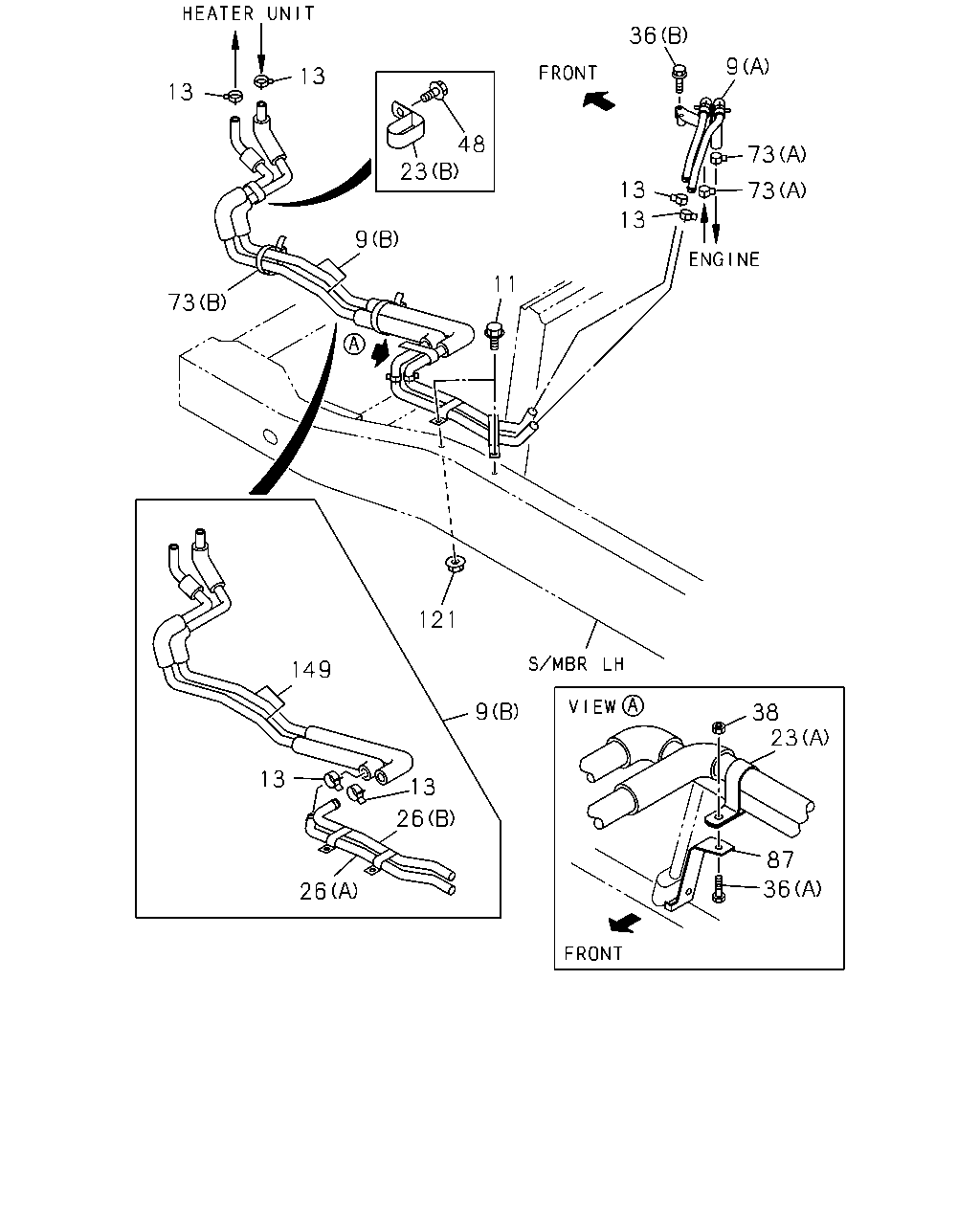

8-45 — HEATER PIPING
(#162135) — 23 parça
◀
[845A] OTHER PARTS (5 parça)
[845A] PIPING (18 parça)
▶
36
141
143
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
BOLT; BRKT
HEATER & DEFROSTER(C41) (C) M8X16 FLANGE
0-28050-816-0
01
1
1507-
36
BOLT; BRKT
HEATER & DEFROSTER(C41) (B) M8X40 FLANGE
0-28060-840-0
02
1
1507-
36
BOLT; BRKT
HEATER & DEFROSTER(C41) (A) M8X25 FLANGE
0-28650-825-0
01
1
1507-
141
BRACKET; HTR PIPE
HEATER & DEFROSTER(C41)
8-97302-265-1
01
1
1507-
143
CAP; HEATER PIPE
FORGED AIR VENTILATION(C39)
8-94414-688-0
02
1
1507-
13
13
73
9
23
48
36
9
73
73
13
13
11
149
13
13
26
26
38
23
87
36
9
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
PIPE; HTR
HEATER & DEFROSTER(C41) (A)
8-98241-614-1
01
1
1507-
9
PIPE; HTR
HEATER & DEFROSTER(C41) (B)
8-98251-763-1
01
1
1507-
11
BOLT; HTR PIPE
HEATER & DEFROSTER(C41) M8X25 FLANGE
0-28650-825-0
02
1
1507-
13
CLIP; HTR HOSE
HEATER & DEFROSTER(C41) ID=22
8-97359-141-0
06
1
1507-
23
CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41) (A)
8-98029-677-0
01
1
1507-
23
CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41) (B)
8-98032-129-0
01
1
1507-
26
HOSE; HTR
HEATER & DEFROSTER(C41) (A)
8-98252-791-0
01
1
1507-
26
HOSE; HTR
HEATER & DEFROSTER(C41) (B)
8-98252-792-0
01
1
1507-
36
BOLT; BRKT
HEATER & DEFROSTER(C41) (C) M8X16 FLANGE
0-28050-816-0
01
1
1507-
36
BOLT; BRKT
HEATER & DEFROSTER(C41) (B) M8X40 FLANGE
0-28060-840-0
02
1
1507-
36
BOLT; BRKT
HEATER & DEFROSTER(C41) (A) M8X25 FLANGE
0-28650-825-0
01
1
1507-
38
NUT; BRKT
HEATER & DEFROSTER(C41) M8 FLANGE
0-91180-108-0
01
1
1507-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M6X12 FLANGE
0-28050-612-0
01
1
1507-
73
CLIP; HTR HOSE
(A) ID=22
8-97359-141-0
02
1
1507-
73
CLIP; HTR HOSE
HEATER & DEFROSTER(C41) (B) L=250
5-09707-030-1
01
1
1507-
87
BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41)
8-97072-530-0
01
1
1507-
121
NUT; PIPE
HEATER & DEFROSTER(C41) M8 FLANGE
0-91180-108-0
01
1
1507-
149
PIPE ASM; HTR
HEATER & DEFROSTER(C41)
8-97260-268-4
01
1
1507-
