Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#162134) — 27 parça
◀
[840A] PLATE;BAFFLE,BOLWER UNIT (2 parça)
[840A] NOZZLE AND DUCT (22 parça)
[840A] PLUG (3 parça)
▶
370
371
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
370
PLATE; BAFFLE,BLOWER UNIT
8-97856-617-1
01
1
1507-
371
FASTENER; BAFFLE PLATE
D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
1507-

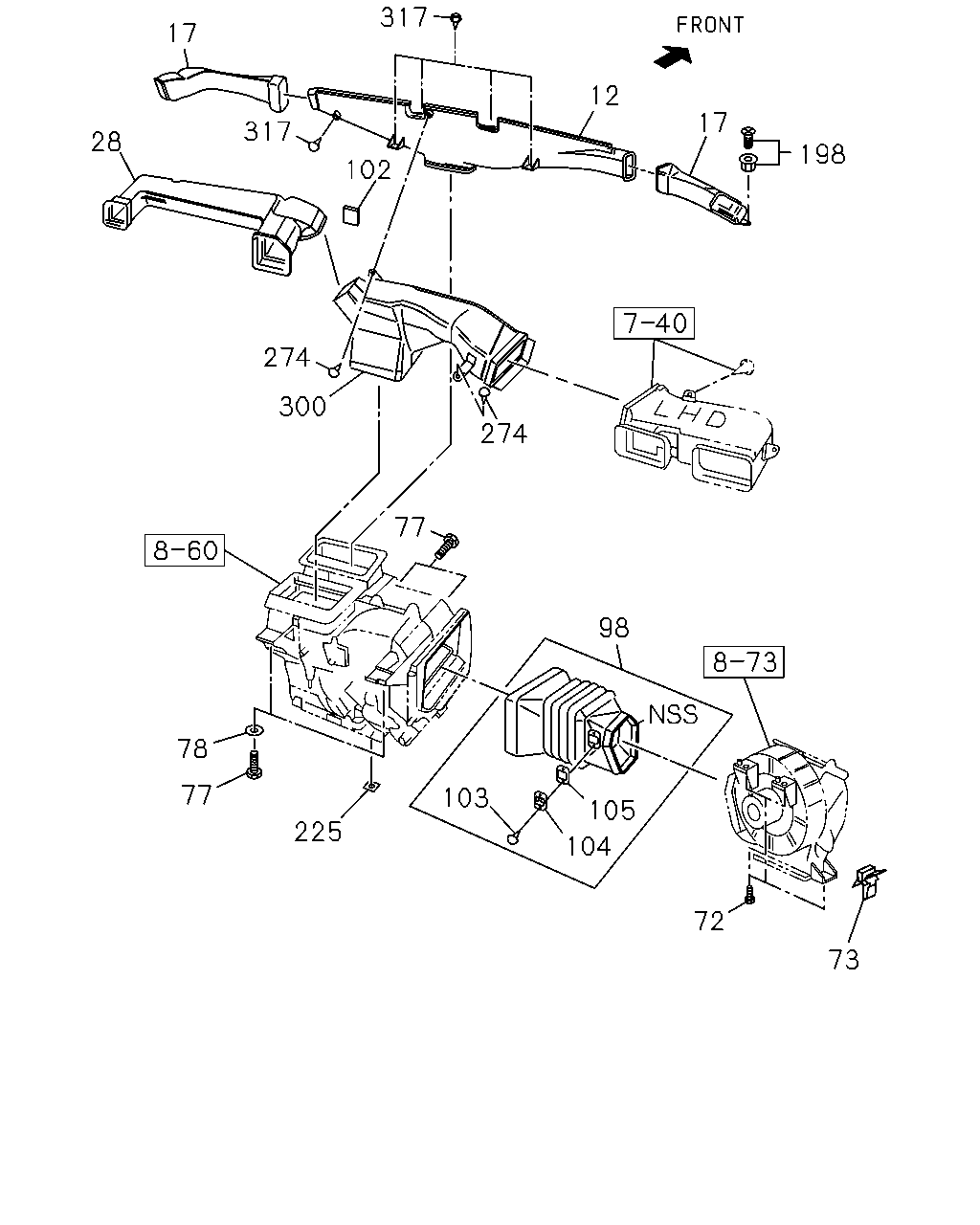

317
17
28
317
274
274
77
300
78
77
225
103
104
98
105
72
73
198
17
12
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
HEATER & DEFROSTER(C41)
8-97251-629-0
01
1
1507-
17
NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41)
8-97262-693-0
01
1
1507-
17
NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41)
8-97262-694-0
01
1
1507-
28
DUCT; AIR,VENTILATOR
8-97262-695-0
01
1
1507-
72
BOLT; BLOWER UNIT
M6X20 FLANGE
0-28650-620-0
02
1
1507-
72
BOLT; BLOWER UNIT
M8X35
8-97103-452-0
02
1
1507-
73
CLIP; HARNESS TO BLOWER UNIT
8-94337-654-0
01
1
1507-
77
BOLT; HTR UNIT
M6X20 FLANGE
0-28650-620-0
02
1
1507-
77
BOLT; HTR UNIT
M8X40 FLANGE
0-28650-840-0
01
1
1507-
77
BOLT; HTR UNIT
M8X25
8-97103-451-0
01
1
1507-
78
WASHER; PL,HTR UNIT
ID=8.4 OD=22
0-91610-708-0
01
1
1507-
98
DUCT; BLOWER UNIT TO HTR UNIT
8-97374-884-0
01
1
1507-
102
LINING; HTR DUCT
HEATER & DEFROSTER(C41)
8-97145-038-0
01
1
1507-
103
SCREW; TAPPING,RESISTOR FIX
M4X16 TAPPING
1-83579-114-0
02
1
1507-
104
RESISTOR; HTR DUCT
8-97357-912-0
01
1
1507-
105
PLATE; HTR DUCT
8-97020-761-0
01
1
1507-
198
CLIP; DUCT
HEATER & DEFROSTER(C41) D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
1507-
225
SEAL; WATER
8-97856-616-0
04
1
1507-
274
SCREW; VENT DUCT
FORGED AIR VENTILATION(C39) T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
1507-
274
SCREW; VENT DUCT
HEATER & DEFROSTER(C41) T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
02
1
1507-
300
DUCT; VENT,CENTER
8-97262-697-0
01
1
1507-
317
SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41) T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
05
1
1507-

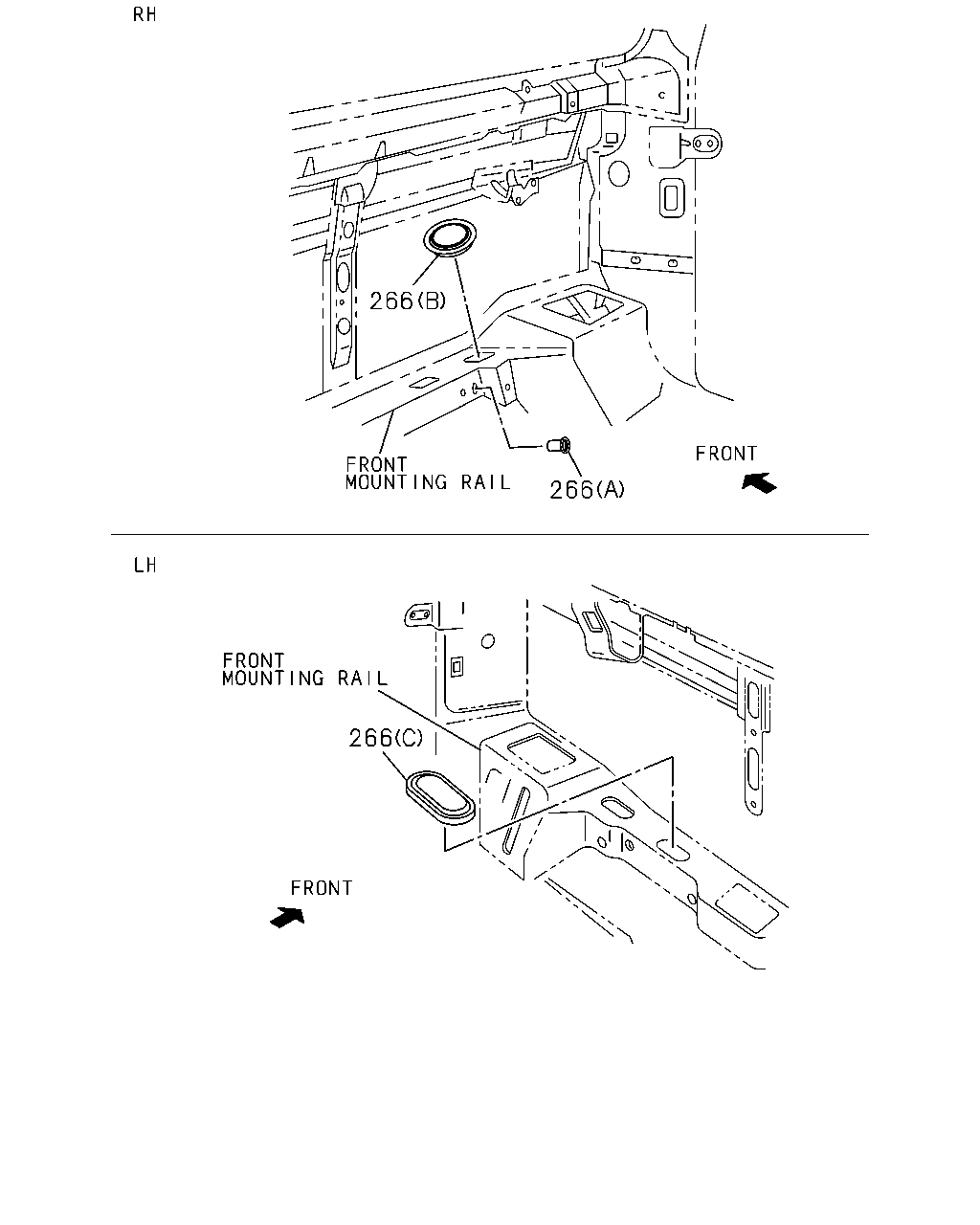

266
266
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
266
PLUG; HTR HOLE
(C) H=78 B=37
8-97036-019-0
01
1
1507-
266
PLUG; HTR HOLE
(B)
8-97037-392-0
01
1
1507-
266
PLUG; HTR HOLE
(A) OD=13
9-09756-019-0
01
1
1507-
