Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#162133) — 14 parça
◀

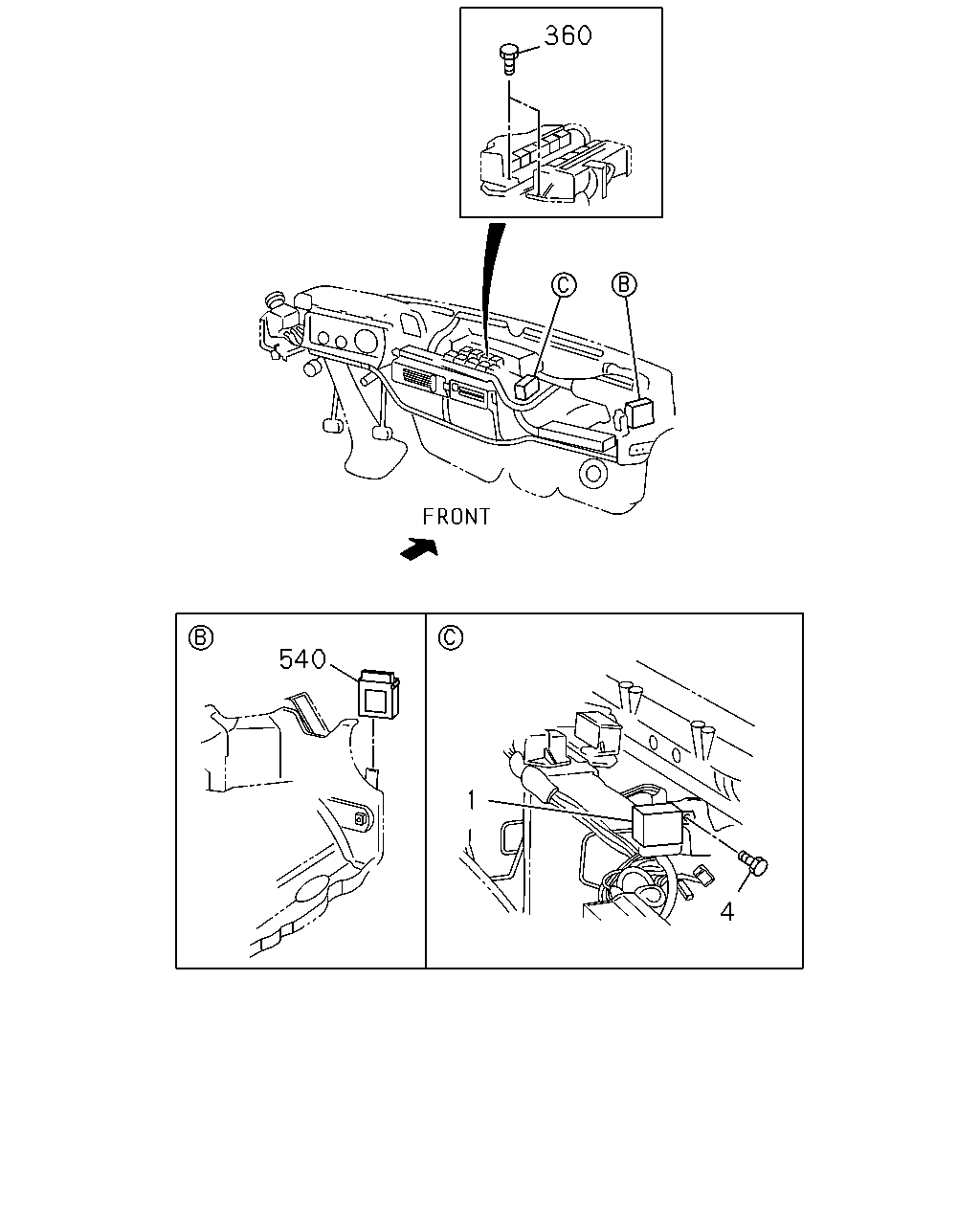

[828A] FIXING;HORN AND CONNECTOR (6 parça)
[828A] FIXING;RELAY AND FLASHER UNIT (4 parça)

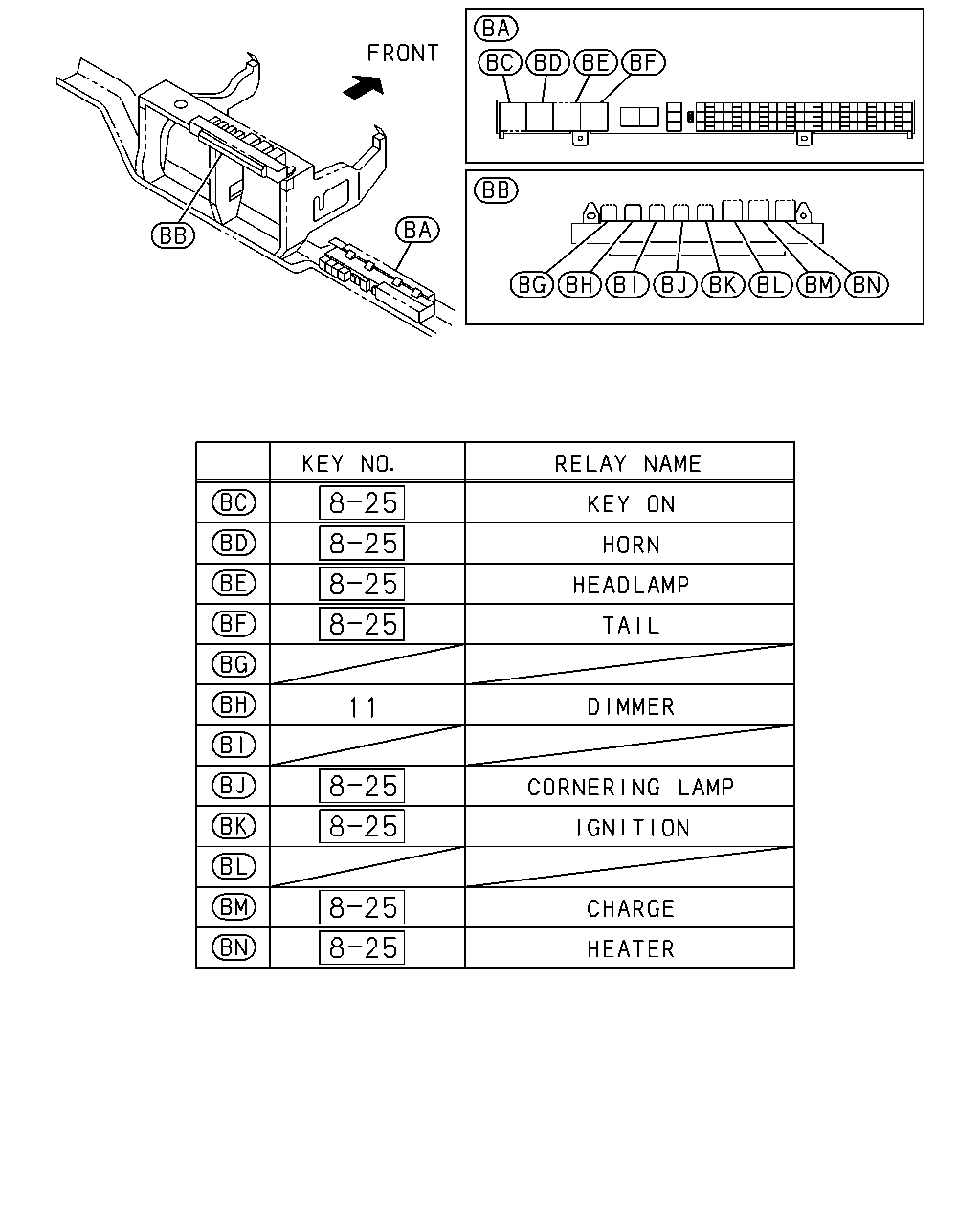

[828A] RELAY;CAB HARNESS (1 parça)

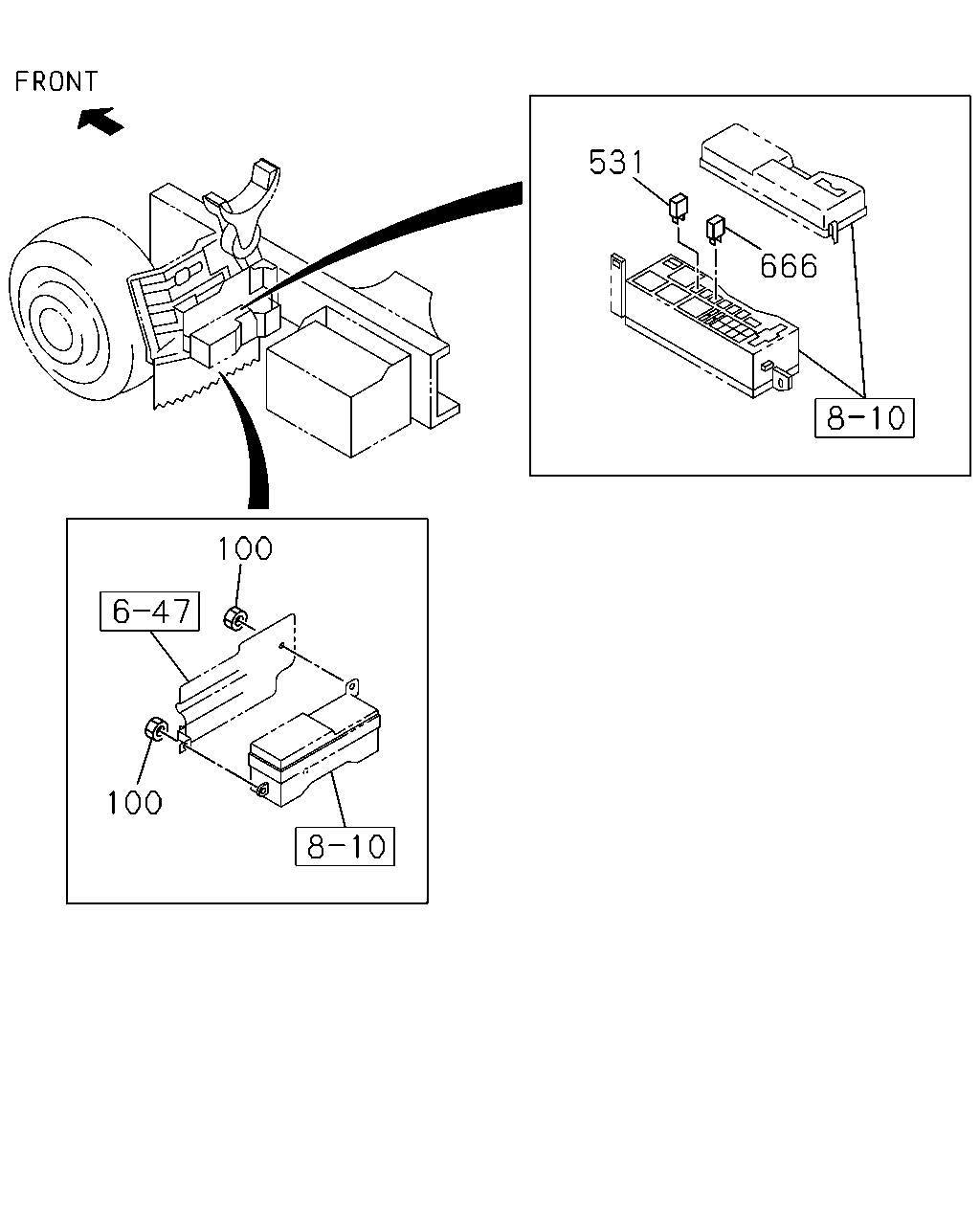

[828A] RELAY;FRAME HARNESS (3 parça)
▶
361
45
189
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK)
8-97211-743-2
01
1
1507-
45
HORN; LOW NOTE
DUAL HEAVY DUTY HORN(6KK)
8-97211-744-2
01
1
1507-
45
HORN; LOW NOTE
EXC. DUAL HEAVY DUTY HORN(6KK)
8-98050-693-0
01
1
1507-
189
BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1507-
189
BOLT; HORN
EXC. DUAL HEAVY DUTY HORN(6KK) M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1507-
361
BOLT; CONNECTOR
M6X19.5 W/LK&PL WASHER
8-97360-226-0
01
1
1507-
360
540
4
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-97228-398-0
01
1
1507-
4
SCREW; FLASHER UNIT
M6X19.5 W/LK&PL WASHER
8-97360-226-0
01
1
1507-
360
BOLT; RELAY BOX
M6X19.5 W/LK&PL WASHER
8-97360-226-0
04
1
1507-
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-97363-984-0
01
1
1507-
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
RELAY; DIMMER
12V 20A
8-97173-037-1
01
1
1507-
100
100
531
666
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
NUT; RELAY BOX COVER
M8 FLANGE
0-91180-108-0
03
1
1507-
531
RELAY; MAIN
12V 20A
8-97173-037-1
01
1
1507-
666
RELAY; STARTER
12V 20A
8-97173-037-1
01
1
1507-
