Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

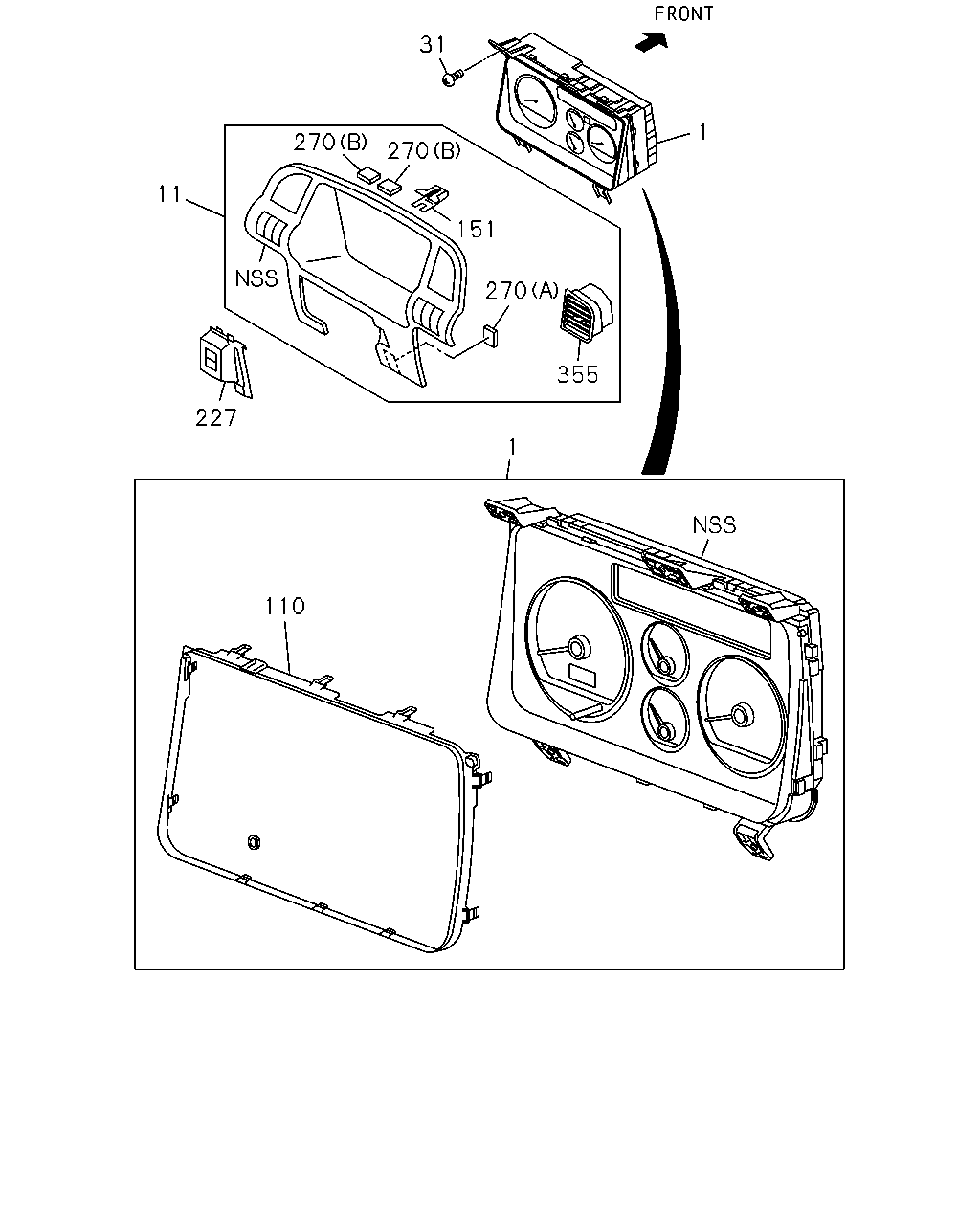

8-21 — METER ASM
(#162130) — 16 parça
11
227
270
270
151
31
1
355
270
110
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98209-897-2
01
1
1507-
11
CLUSTER ASM; METER
KD PREPARATORY PACK VAR.4<7TV>
8-97693-086-0
01
1
1507-
11
CLUSTER ASM; METER
EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK
8-97195-965-2
01
1
1507-
31
SCREW; METER,INST PANEL
M6X19.5 W/LK&PL WASHER
8-97360-226-0
05
1
1507-
110
GLASS; CLUSTER METER
8-98203-825-0
01
1
1507-
151
CLIP; METER CLUSTER
KD PREPARATORY PACK VAR.4<7TV>
5-87220-525-0
07
1
1507-
151
CLIP; METER CLUSTER
EXC. KD PREPARATORY PACK VAR.4<7TV>
8-97217-066-0
07
1
1507-
227
BEZEL; METER
BLACK
8-97307-066-0
01
1
1507-
270
CUSHION; METER CLUSTER
KD PREPARATORY PACK VAR.4<7TV> (A)
5-87220-526-0
01
1
1507-
270
CUSHION; METER CLUSTER
KD PREPARATORY PACK VAR.4<7TV> (B)
5-87220-527-0
02
1
1507-
270
CUSHION; METER CLUSTER
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 15X30 T=5
8-94270-366-2
01
1
1507-
270
CUSHION; METER CLUSTER
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 6X30 T=2
8-94270-378-1
02
1
1507-
355
GRILLE; VENT
KD PREPARATORY PACK VAR.4<7TV>
5-87220-528-0
01
1
1507-
355
GRILLE; VENT
KD PREPARATORY PACK VAR.4<7TV>
5-87220-529-0
01
1
1507-
355
GRILLE; VENT
EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK
8-97195-966-1
01
1
1507-
355
GRILLE; VENT
EXC. KD PREPARATORY PACK VAR.4<7TV> BLACK
8-97195-967-1
01
1
1507-
