Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#162128) — 53 parça
◀

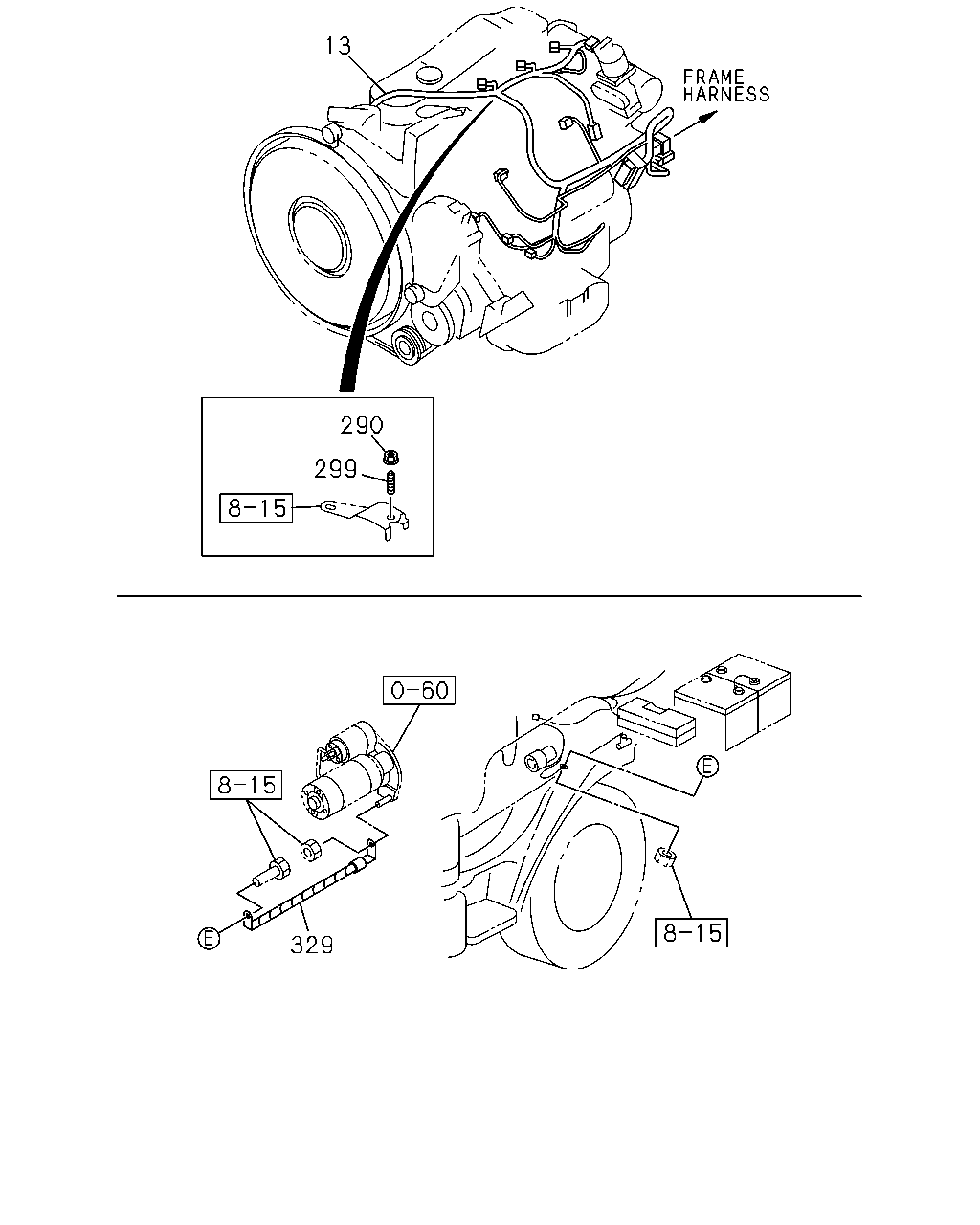

[810A] ENG HARNESS (5 parça)

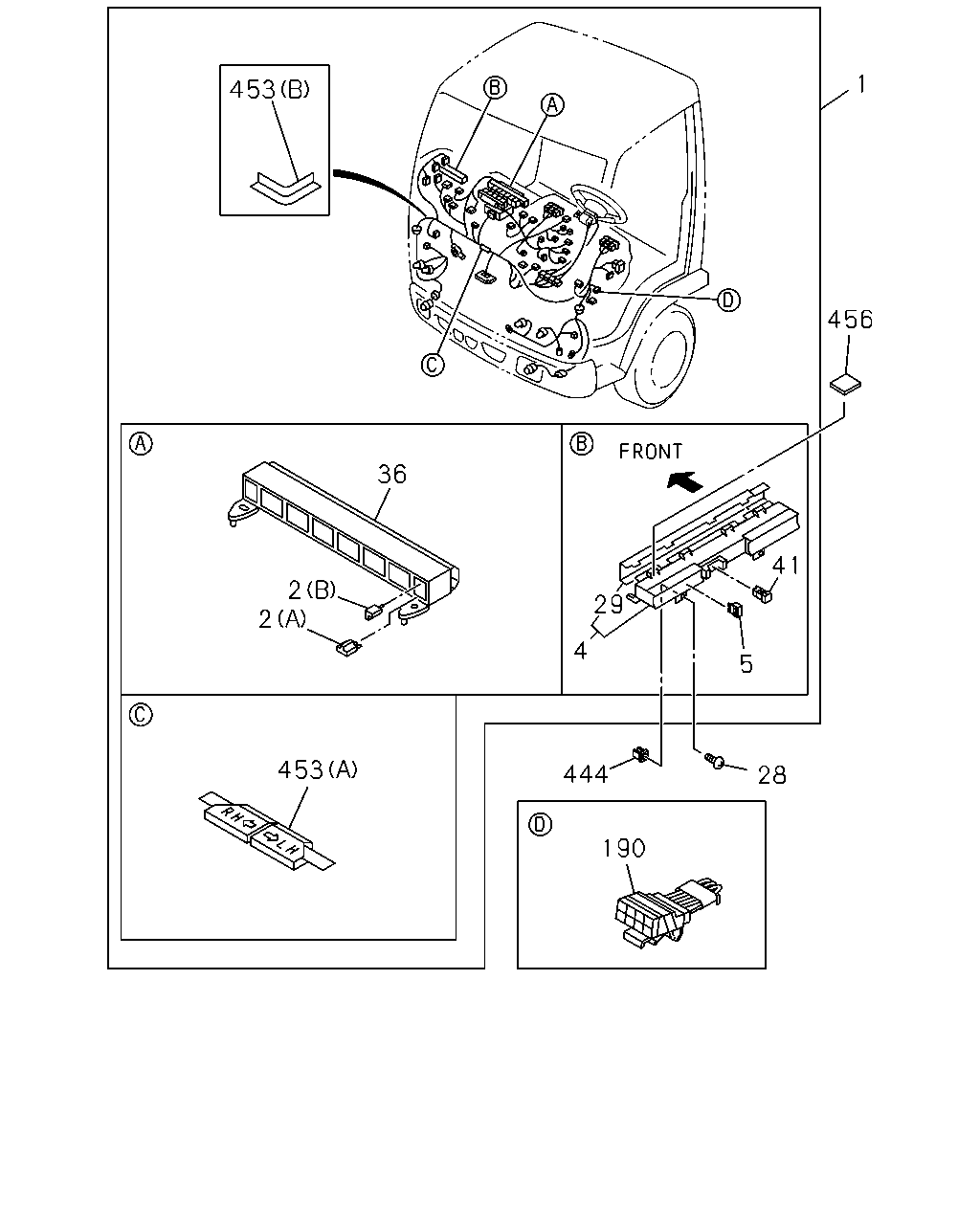

[810A] CAB HARNESS (20 parça)

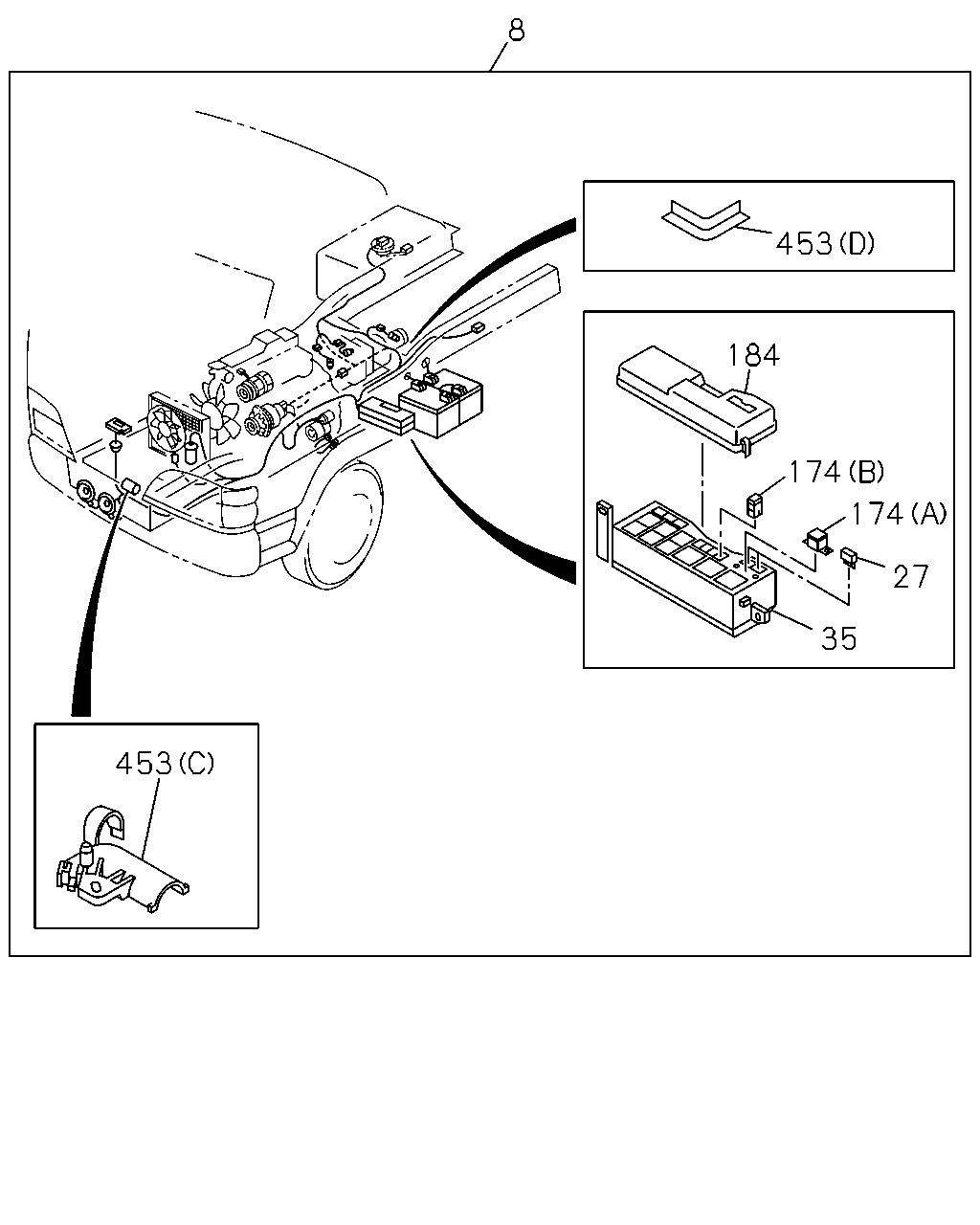

[810A] FRT FRAME HARNESS (14 parça)

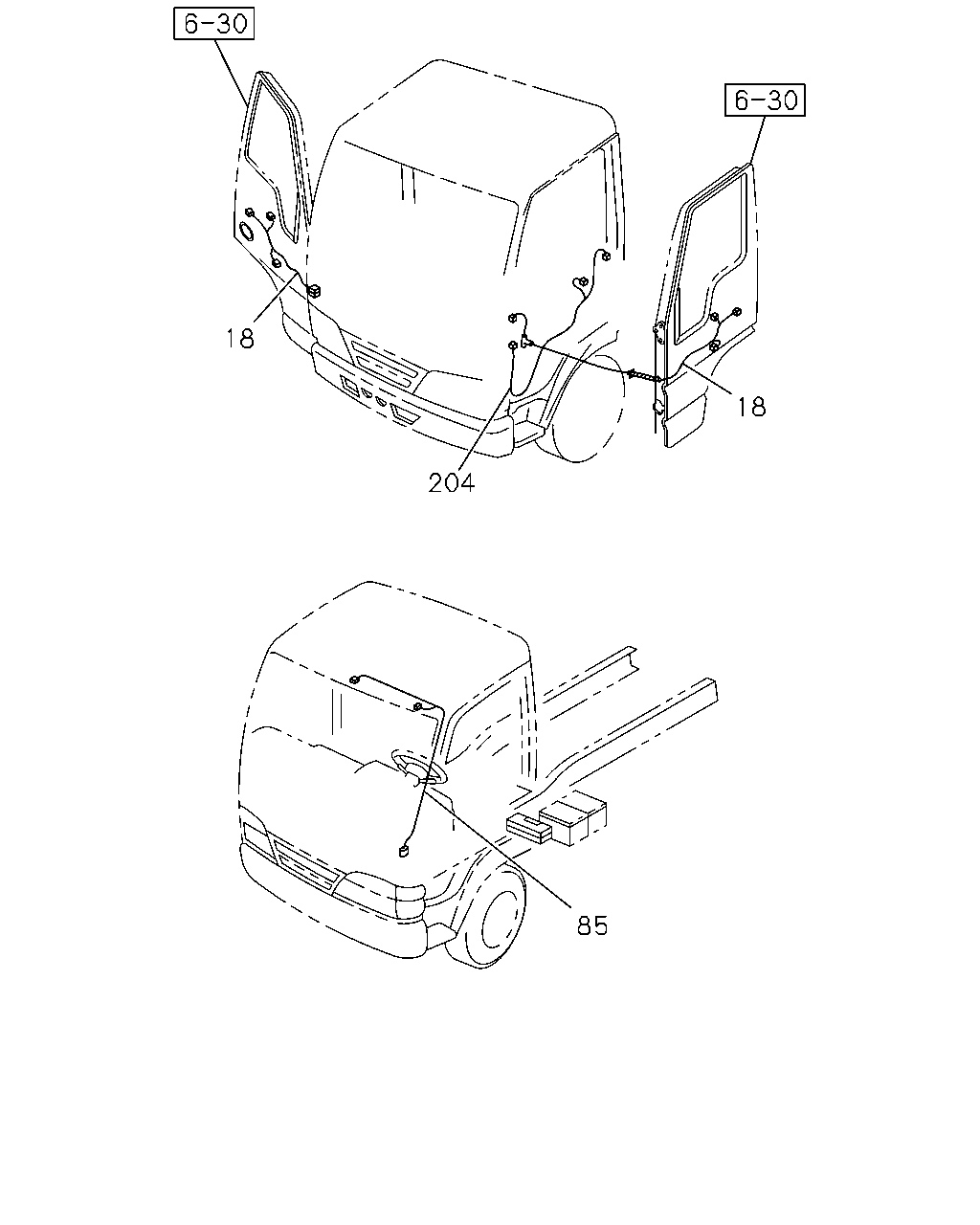

[810A] DOOR,ROOM LAMP,FLOOR HARNESS (4 parça)

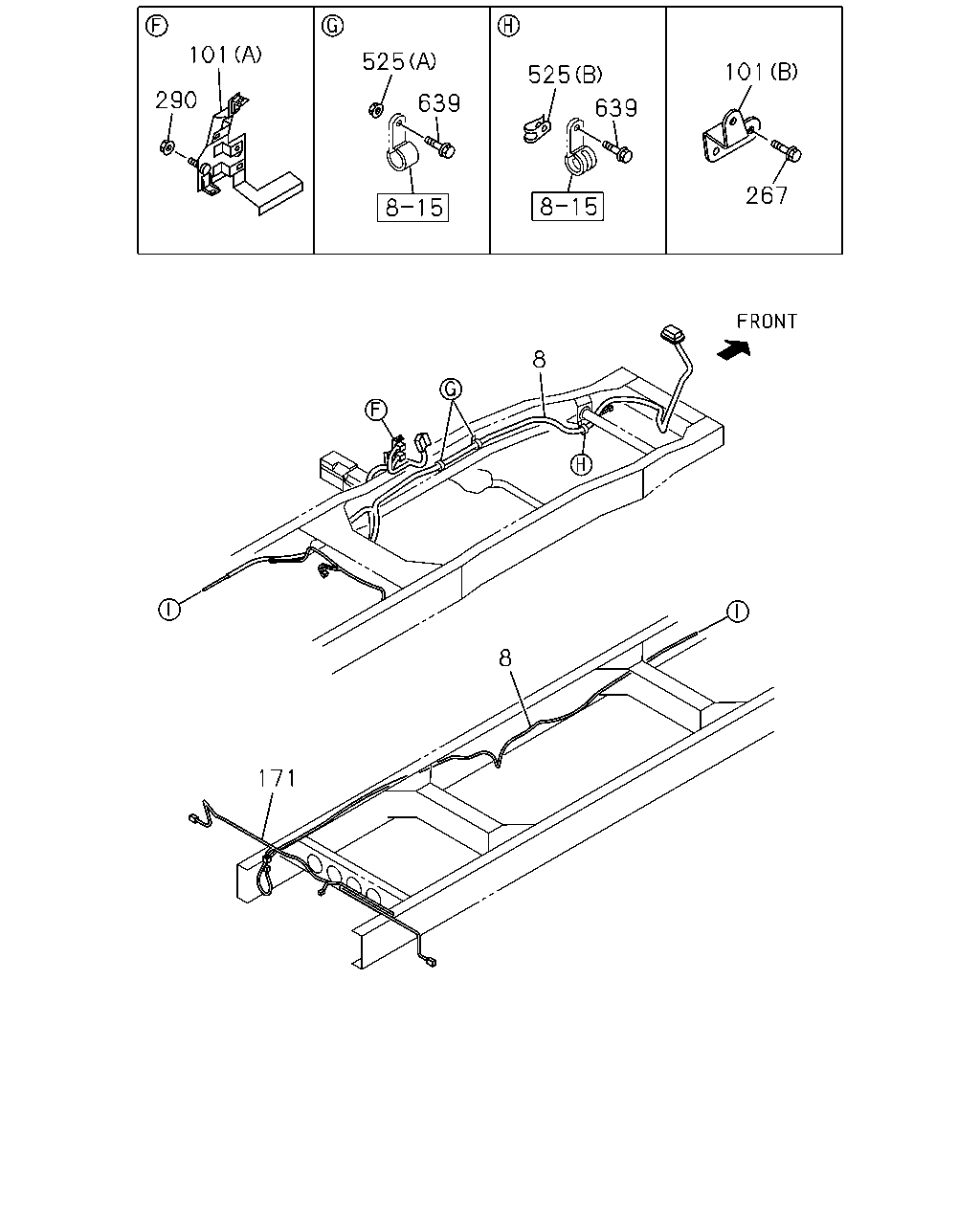

[810A] OTHER HARNESS (10 parça)
▶
13
290
299
329
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
8-98221-557-2
01
1
1507-
290
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1507-
290
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1507-
299
STUD; BRKT
M8X16 L=28
0-41010-816-0
01
1
1507-
329
CABLE; ENG TO FRAME
8-97260-486-1
01
1
1507-
5
41
28
444
190
453
2
2
36
453
1
456
29
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
8-98229-069-2
01
1
1507-1507
1
HARNESS; CAB
8-98321-869-1
01
1
1508-
2
DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A
8-94416-438-1
AR
1
1512-
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A
8-94422-639-1
AR
1
1507-
2
DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A
8-94422-640-1
AR
1
1507-
4
BOX ASM; FUSE,HARNESS
8-97187-921-1
01
1
1507-
5
FUSE; FACIA HARNESS
10A MINI RED
8-97062-022-0
AR
1
1507-
5
FUSE; FACIA HARNESS
15A MINI BLUE
8-97062-023-0
AR
1
1507-
5
FUSE; FACIA HARNESS
25A MINI CLEAR
8-97062-025-0
AR
1
1507-
28
SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1507-
29
COVER; FUSE BOX
8-97074-955-0
01
1
1507-
36
BOX; RELAY
8-97187-918-1
01
1
1507-
41
PULLER; FUSE
8-97103-388-0
01
1
1507-
190
CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13>
8-98036-238-0
01
1
1507-
444
GROMMET; SCREW,FUSE BOX
D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1507-
453
PROTECTOR; HARNESS
(D)
8-94417-716-0
03
1
1507-
453
PROTECTOR; HARNESS
(C)
8-97093-668-1
01
1
1507-
453
PROTECTOR; HARNESS
(B)
8-94452-553-0
01
1
1507-
453
PROTECTOR; HARNESS
(A)
8-97074-957-0
01
1
1507-
456
CUSHION; FUSE BOX
15X30 T=5
8-94270-366-2
01
1
1507-
8
453
184
174
27
35
174
453
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HARNESS; FRAME,FRT
8-98310-024-0
01
1
1507-
27
FUSE UNIT
10A MINI RED
8-97062-022-0
AR
1
1507-
27
FUSE UNIT
20A MINI YELLOW
8-97062-024-0
AR
1
1507-
35
BOX; RELAY & FUSE
8-97377-739-0
01
1
1507-
174
FUSE; SLOW BLOW
(A) 100A BLUE
8-94388-306-1
AR
1
1507-
174
FUSE; SLOW BLOW
(B) 30A PINK
8-97183-643-0
AR
1
1507-
174
FUSE; SLOW BLOW
(B) 40A GREEN
8-97183-644-0
AR
1
1507-
174
FUSE; SLOW BLOW
(B) 50A RED
8-97183-645-0
AR
1
1507-
174
FUSE; SLOW BLOW
(B) 60A YELLOW
8-97219-407-0
AR
1
1507-
184
COVER; RELAY & FUSE BOX
8-97377-741-0
01
1
1507-
453
PROTECTOR; HARNESS
(D)
8-94417-716-0
03
1
1507-
453
PROTECTOR; HARNESS
(C)
8-97093-668-1
01
1
1507-
453
PROTECTOR; HARNESS
(B)
8-94452-553-0
01
1
1507-
453
PROTECTOR; HARNESS
(A)
8-97074-957-0
01
1
1507-
18
204
18
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
HARNESS; DOOR
ANTENNA<U73>
8-97105-571-1
01
1
1507-
18
HARNESS; DOOR
ANTENNA<U73>
8-97226-668-0
01
1
1507-
85
HARNESS; ROOM LAMP
8-97364-158-0
01
1
1507-
204
HARNESS; CABLE,FLOOR
8-97364-140-0
01
1
1507-
101
290
525
639
525
639
101
267
8
8
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HARNESS; FRAME,FRT
8-98310-024-0
01
1
1507-
101
BRACKET; HARNESS CONNECTOR
(B)
8-98214-353-0
01
1
1507-
101
BRACKET; HARNESS CONNECTOR
(A)
8-98245-189-1
01
1
1507-
171
HARNESS; CABLE,TAIL LAMP
8-98222-483-0
01
1
1507-
267
BOLT; BRKT
M10X40 FLANGE
0-28651-040-0
02
1
1507-
290
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1507-
290
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1507-
525
NUT; CLIP
(A) M6 FLANGE
0-91180-106-0
02
1
1507-
525
NUT; CLIP
(B)
8-97108-658-0
01
1
1507-
639
BOLT; CLIP
M6X25 FLANGE
0-28650-625-0
03
1
1507-
