8-03 — LAMP; REAR AND REAR SIDE (#162127) — 28 parça

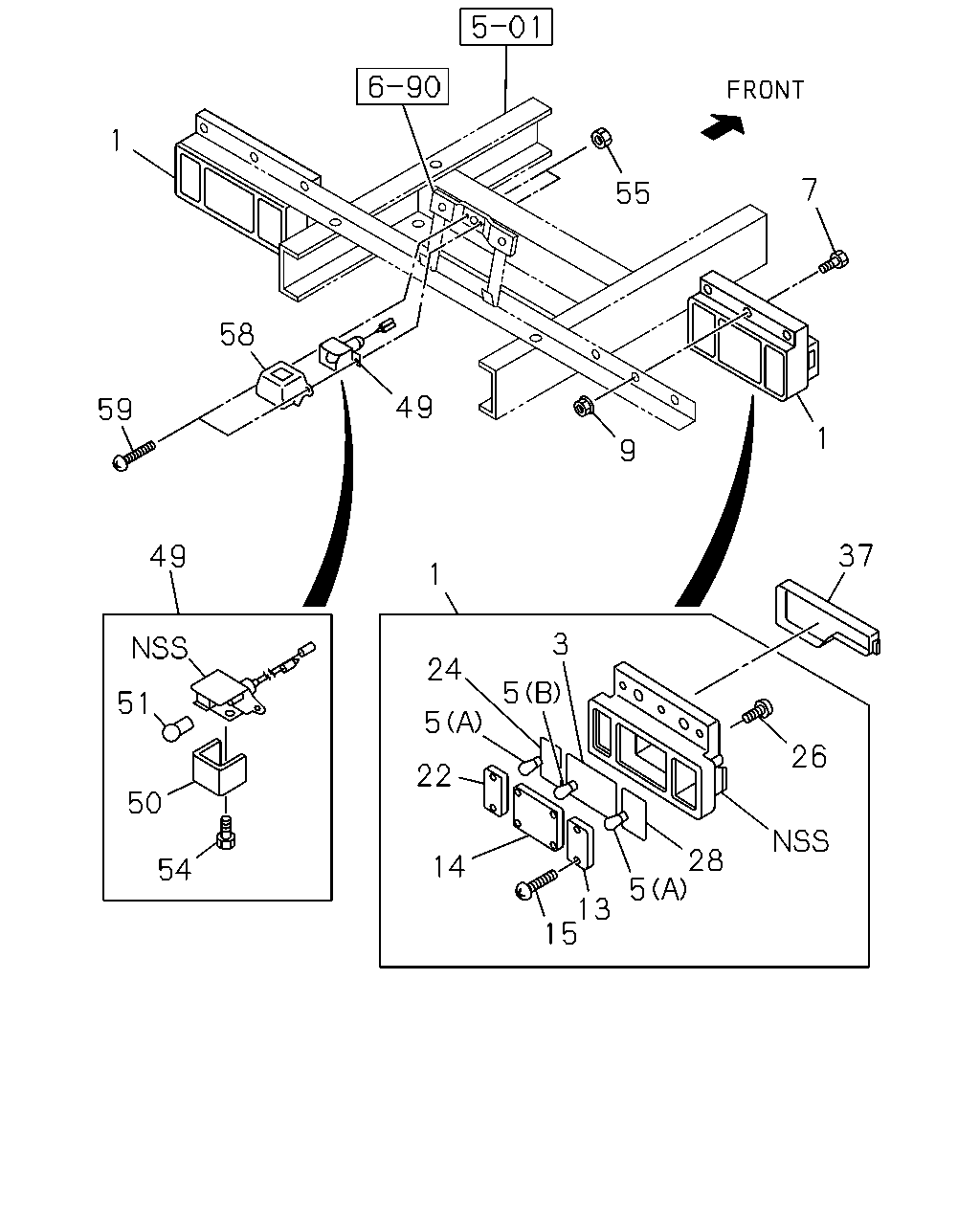

çizim 480419
28 26 37 3 1 24 5 22 14 5 13 15 5 54 50 51 49 59 58 49 1 9 1 7 55
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-98072-020-0 01 1 1507-
1 LAMP ASM; RR COMB 8-98072-025-0 01 1 1507-
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-98072-024-0 01 1 1507-
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1507-
5 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 02 1 1507-
5 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 01 1 1507-
7 SCREW; RR COMB LAMP
M6X20 		8-94402-623-0 04 1 1507-
9 NUT; LAMP,RR COMB
M6 FLANGE 		5-09440-004-0 04 1 1507-
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1507-
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1507-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1507-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1507-
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1507-
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 01 1 1507-
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 1507-
26 SCREW; BACK HORN
BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 1507-
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1507-
26 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 1507-
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 1507-
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 1507-
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 1507-
49 LAMP; LICENSE PLATE
12V 10W 		5-82120-020-0 01 1 1507-
50 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 1507-
51 BULB; LICENSE PLATE LAMP
12V 10W 		8-94126-494-0 01 1 1507-
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 01 1 1507-
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 02 1 1507-
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 1507-
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 02 1 1507-
