◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#162125) — 15 parça

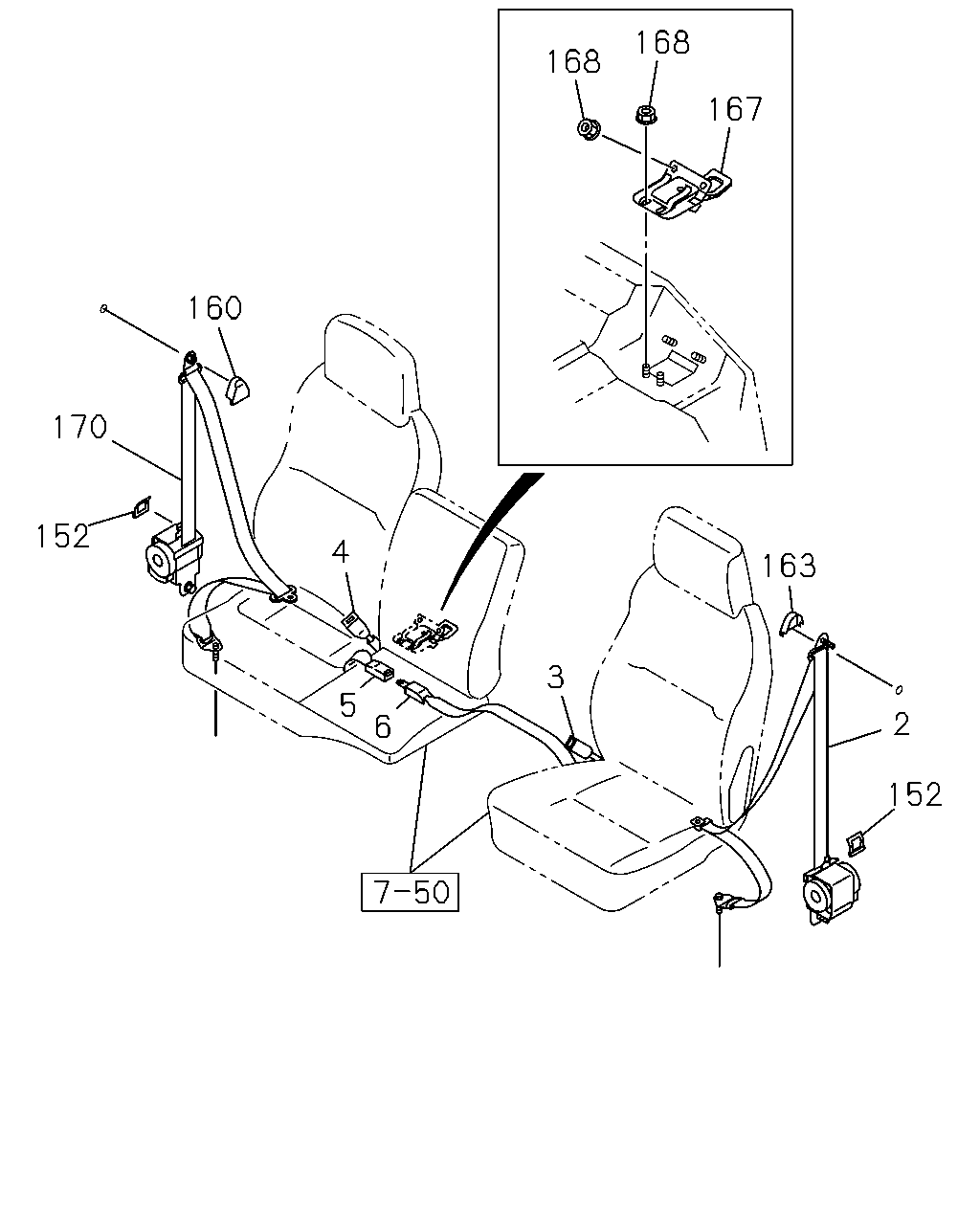

çizim 480729
167 168 168 160 170 152 4 6 5 3 163 2 152
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97413-020-0 01 1 1507-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-351-0 01 1 1507-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97396-952-0 01 1 1507-
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97404-304-0 01 1 1507-
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97404-967-0 01 1 1507-
152 PROTECTOR 8-97287-563-0 02 1 1507-
160 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 01 1 1507-
163 COVER; ADJUSTER
GRAY 		8-97396-954-0 01 1 1507-
167 PLATE; ANCHOR 8-97869-412-2 01 1 1507-
168 NUT; ANCHOR PLATE
M8 FLANGE 		0-91180-108-0 04 1 1507-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97404-966-1 01 1 1507-
çizim 480997
177 165 166 161 166
BalonParca AdiParca NoAdetTipApplied Date
161 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-442-2 01 1 1507-
165 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 1507-
166 BOLT; SEAT BELT ANCHOR
M8X25 FLANGE 		0-28650-825-0 04 1 1507-
177 NUT
M8 W/LK WASHER 		8-97581-234-0 01 1 1507-
