◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#162123) — 17 parça

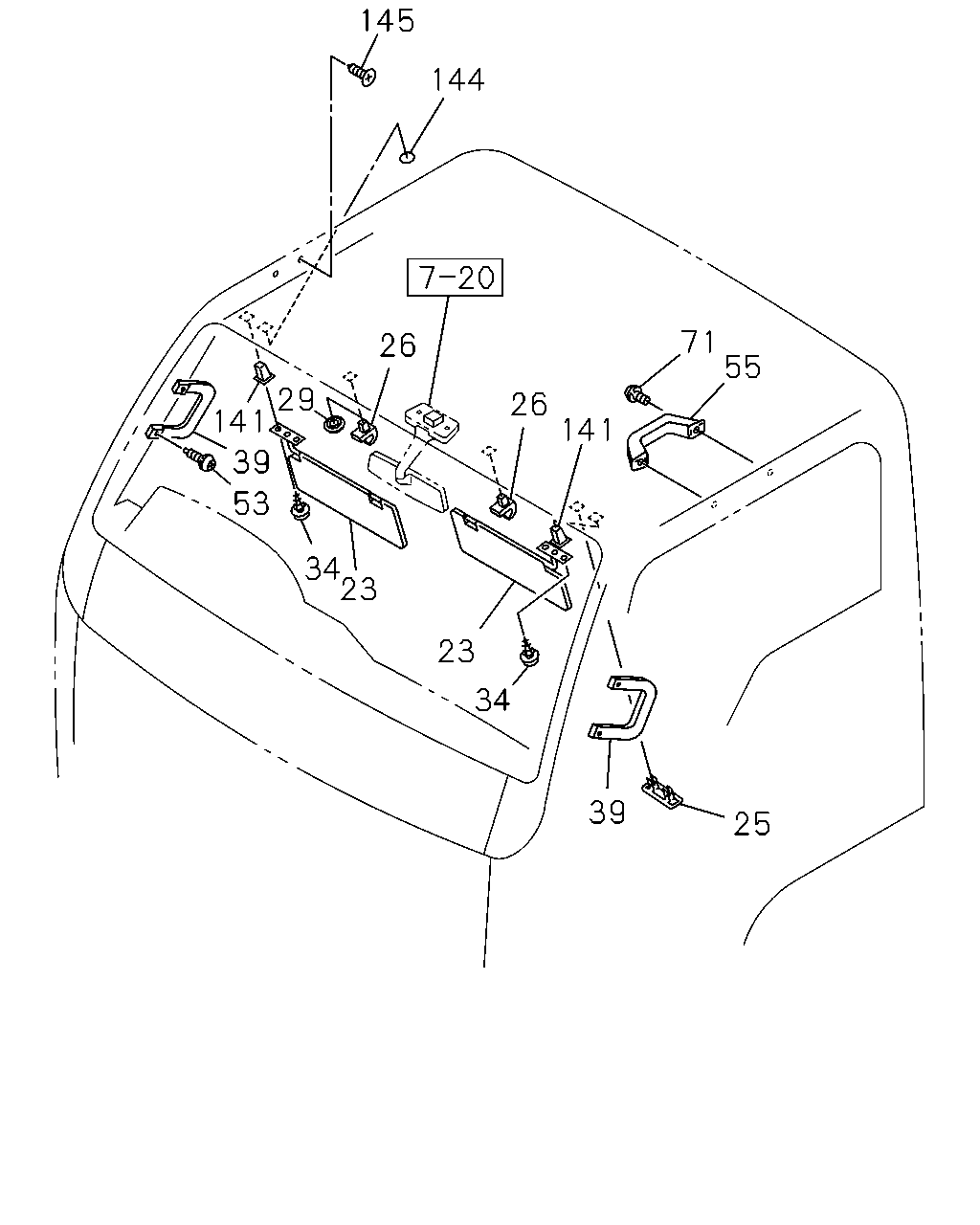

çizim 480808
141 53 34 23 34 39 25 141 71 26 26 29 145 144 55 23 39
BalonParca AdiParca NoAdetTipApplied Date
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97404-450-0 01 1 1507-
23 SUN VISOR
LIGHT GRAY 		8-97404-398-0 01 1 1507-
25 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97406-201-3 01 1 1507-
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97405-171-0 02 1 1507-
26 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97405-171-0 01 1 1507-
29 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> OD=15.0 		8-94279-040-0 01 1 1507-
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M5X18 TAPPING 		0-72180-518-0 04 1 1507-
34 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> M5X18 TAPPING 		0-72180-518-0 02 1 1507-
39 HANDLE; ASSIST,A-POST
GRAY 		8-97409-477-0 02 1 1507-
53 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 1507-
55 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 1507-
71 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 1507-
141 COVER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 		8-94279-039-0 04 1 1507-
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> 		8-94279-039-0 02 1 1507-
144 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517) ,BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARABEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORTRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1507-
144 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1507-
145 PLUG; HOLE
OD=12 L=14.8 		8-94279-921-0 04 1 1507-
