Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶
7-40 — INSTRUMENT PANEL AND BOX
(#162120) — 54 parça
◀

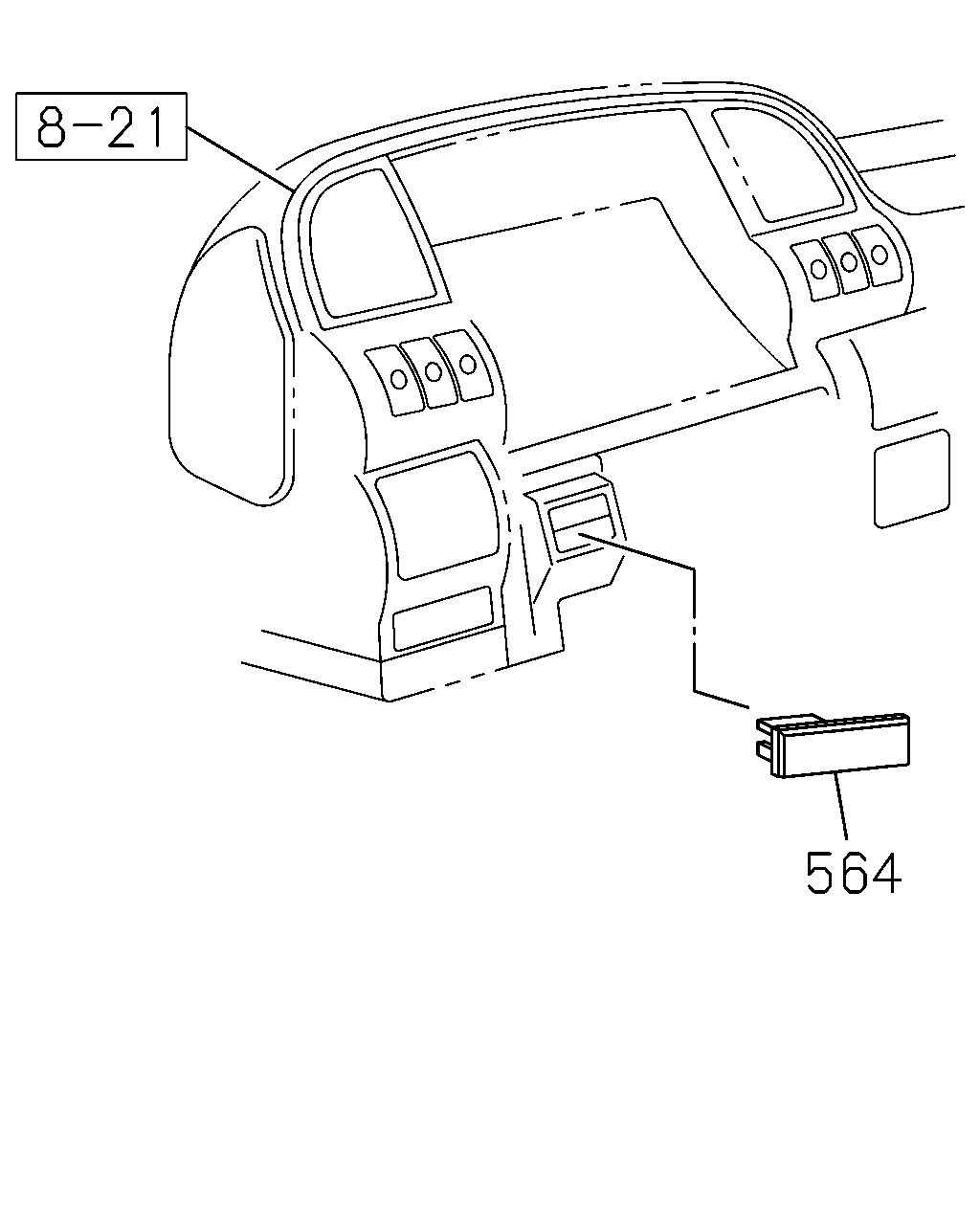

[740A] SW COVER (1 parça)

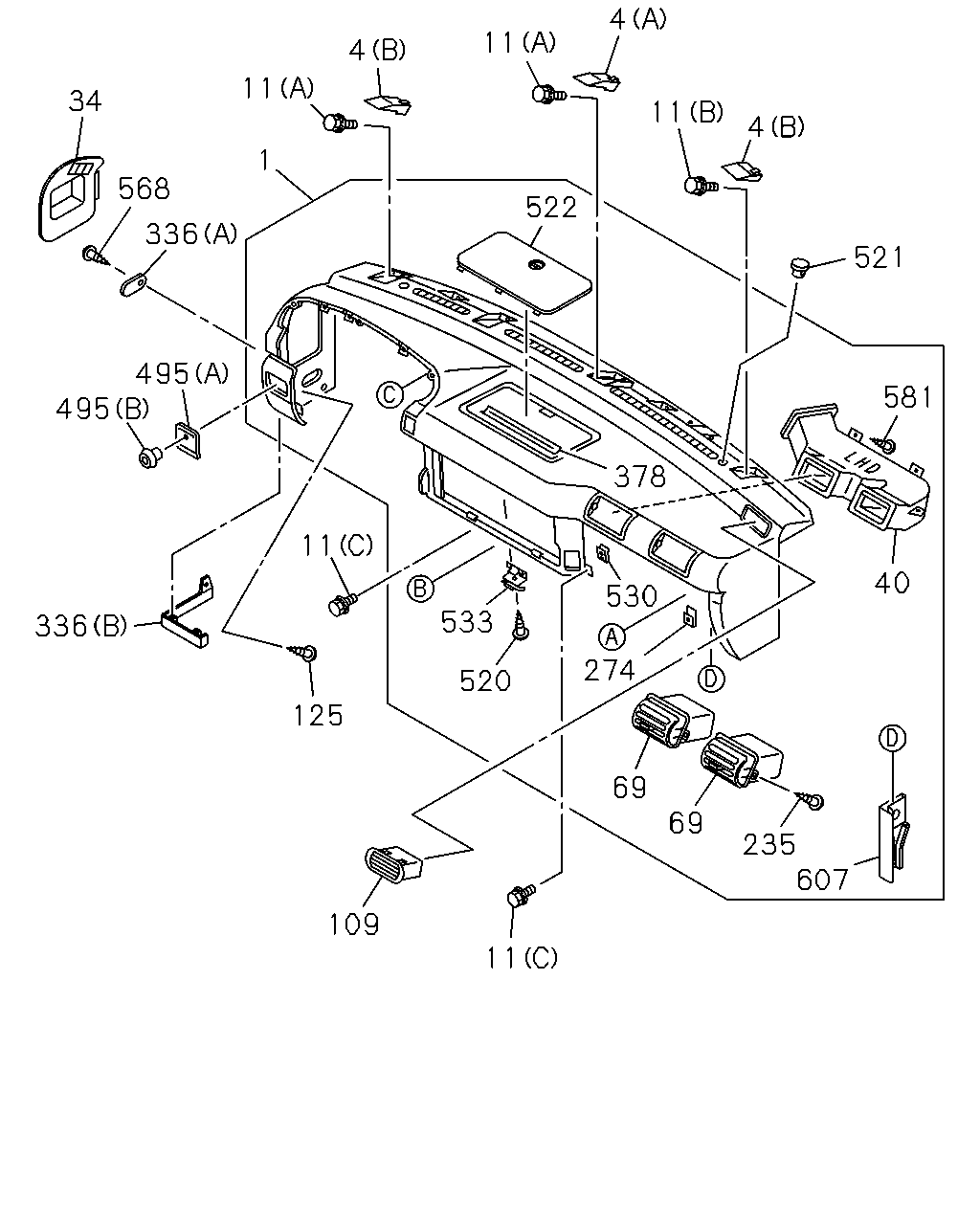

[740A] INST PANEL (29 parça)

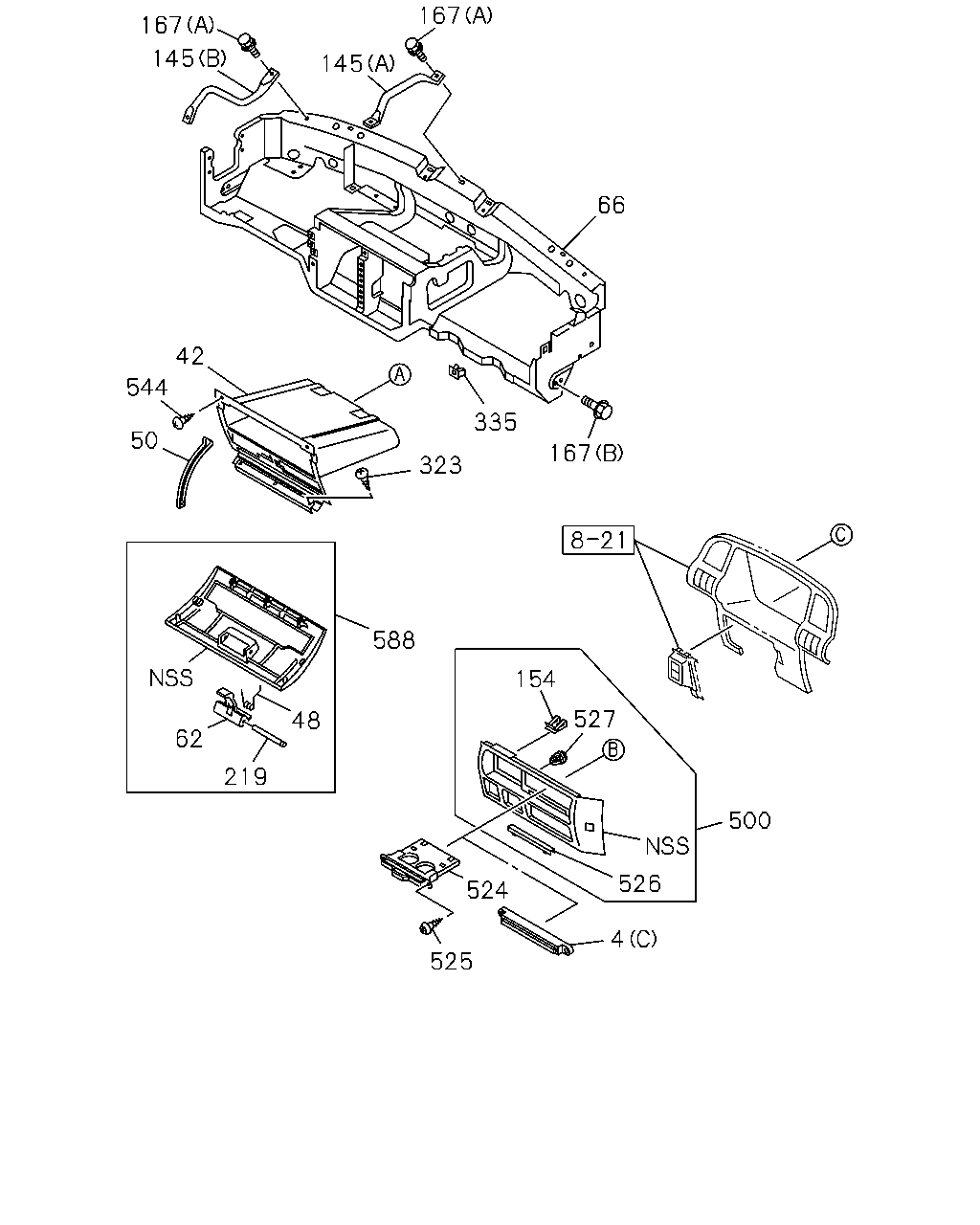

[740A] REINFORCEMENT AND OTHER PARTS (24 parça)
▶
564
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
564
COVER; SW
8-94310-890-0
01
1
1507-
11
4
11
4
11
522
1
568
34
336
495
495
336
11
125
109
11
69
69
235
607
274
533
520
530
378
40
581
521
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; INST
DARK GRAY
8-97587-476-2
01
1
1507-
4
COVER; INST PNL
(A) DARK GRAY
8-97582-215-3
02
1
1507-
4
COVER; INST PNL
(B) DARK GRAY
8-97582-216-3
01
1
1507-
4
COVER; INST PNL
(B) DARK GRAY
8-97582-217-3
01
1
1507-
4
COVER; INST PNL
EXC. CUP HOLDER<7KZ> (C)
1-72438-139-1
01
1
1507-
11
BOLT; INST PNL
(A) M6X25
8-94279-204-0
02
1
1507-
11
BOLT; INST PNL
(B) M6X24 FLANGE
8-94279-231-1
02
1
1507-
11
BOLT; INST PNL
(C) M6X19.5 W/LK&PL WASHER
8-97360-226-0
06
1
1507-
34
LID; OIL TANK
FORGED AIR VENTILATION(C39) DARK GRAY
8-97585-448-4
01
1
1507-
34
LID; OIL TANK
HEATER & DEFROSTER(C41) DARK GRAY
8-97585-433-5
01
1
1507-
40
DUCT; VENT,SIDE CLUSTER BEZEL
8-97262-698-0
01
1
1507-
69
GRILLE; SIDE,AIR OUTLET
DARK GRAY
8-97582-612-0
02
1
1507-
109
GRILLE; INST PNL SIDE,UPR
DARK GRAY
8-97585-436-0
01
1
1507-
125
CLIP; INST PANEL
M5X14 TAPPING W/TORQUES
8-98061-856-0
02
1
1507-
235
SCREW; GRILLE
M5X14
8-94279-325-0
04
1
1507-
274
NUT; GLOVE BOX
M5 SPIRE NUT
8-94279-051-0
02
1
1507-
336
COVER; INST PANEL SIDE
(A) DARK GRAY
8-97582-218-4
02
1
1507-
336
COVER; INST PANEL SIDE
(B) DARK GRAY
8-97585-432-1
01
1
1507-
378
SEAL; INST PANEL
8-97209-399-0
01
1
1507-
495
BEZEL; SW
(A) DARK GRAY
8-97582-214-4
01
1
1507-
495
BEZEL; SW
(B) DARK GRAY
8-97582-247-0
01
1
1507-
520
SCREW; CLIP,SPRING
M5X14
8-94279-325-0
03
1
1507-
521
COVER; SUN SENSOR
DARK GRAY
8-97582-334-2
01
1
1507-
522
LID; RELAY BOX
DARK GRAY
8-97582-494-6
01
1
1507-
530
CLIP; GLOVE BOX
8-97856-135-0
01
1
1507-
533
CLIP; SPRING,CTR CLUSTER
8-97853-170-5
02
1
1507-
568
BOLT; COVER
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
1507-
581
SCREW
M5X14
8-94279-325-0
02
1
1507-
607
FIXING ASM; CLIP INST TO M/CSTR
8-97857-893-2
01
1
1507-
500
526
524
525
4
527
154
588
48
62
219
323
335
66
167
544
42
50
145
167
145
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
COVER; INST PNL
(A) DARK GRAY
8-97582-215-3
02
1
1507-
4
COVER; INST PNL
(B) DARK GRAY
8-97582-216-3
01
1
1507-
4
COVER; INST PNL
(B) DARK GRAY
8-97582-217-3
01
1
1507-
4
COVER; INST PNL
EXC. CUP HOLDER<7KZ> (C)
1-72438-139-1
01
1
1507-
42
BOX; GLOVE,INST PNL
8-97853-150-5
01
1
1507-
48
SPRING; GLOVE BOX LID
8-97853-750-1
01
1
1507-
50
STOPPER; LID,GLOVE BOX,INST CLUSTER
8-97853-152-0
02
1
1507-
62
KNOB; GLOVE BOX LID
DARK GRAY
8-97582-487-1
01
1
1507-
66
REINFORCEMENT; INST PANEL
8-97898-464-7
01
1
1507-
145
STAY; INST PANEL SIDE
(A)
8-97856-196-2
01
1
1507-
145
STAY; INST PANEL SIDE
(B)
8-97856-197-2
01
1
1507-
154
NUT
M6 SPIRE NUT
8-97210-973-1
04
1
1507-
167
BOLT; REINF TO INST
(A) M6X12 W/LK&PL WASHER
0-50640-612-0
02
1
1507-
167
BOLT; REINF TO INST
(B) M8X23 FLANGE
8-97264-766-0
04
1
1507-
219
SHAFT; GLOVE BOX LID
5-72547-059-1
01
1
1507-
323
SCREW; GLOVE BOX LK
M5X14 TAPPING W/TORQUES
8-98061-856-0
03
1
1507-
335
GROMMET; GLOVE BOX LK
D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1507-
500
CLUSTER; INST CENTER
DARK GRAY
8-97587-475-7
01
1
1507-
524
STAND ASM; CUP,INST
CUP HOLDER<7KZ>
8-97853-172-8
01
1
1507-
525
SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1507-
526
GUIDE; POCKET,INST CLUSTER
DARK GRAY
8-97582-490-1
01
1
1507-
527
CLIP; INST CLUSTER
8-97853-169-0
04
1
1507-
544
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1507-
588
LID; BOX
DARK GRAY
8-97582-199-5
01
1
1507-
