Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

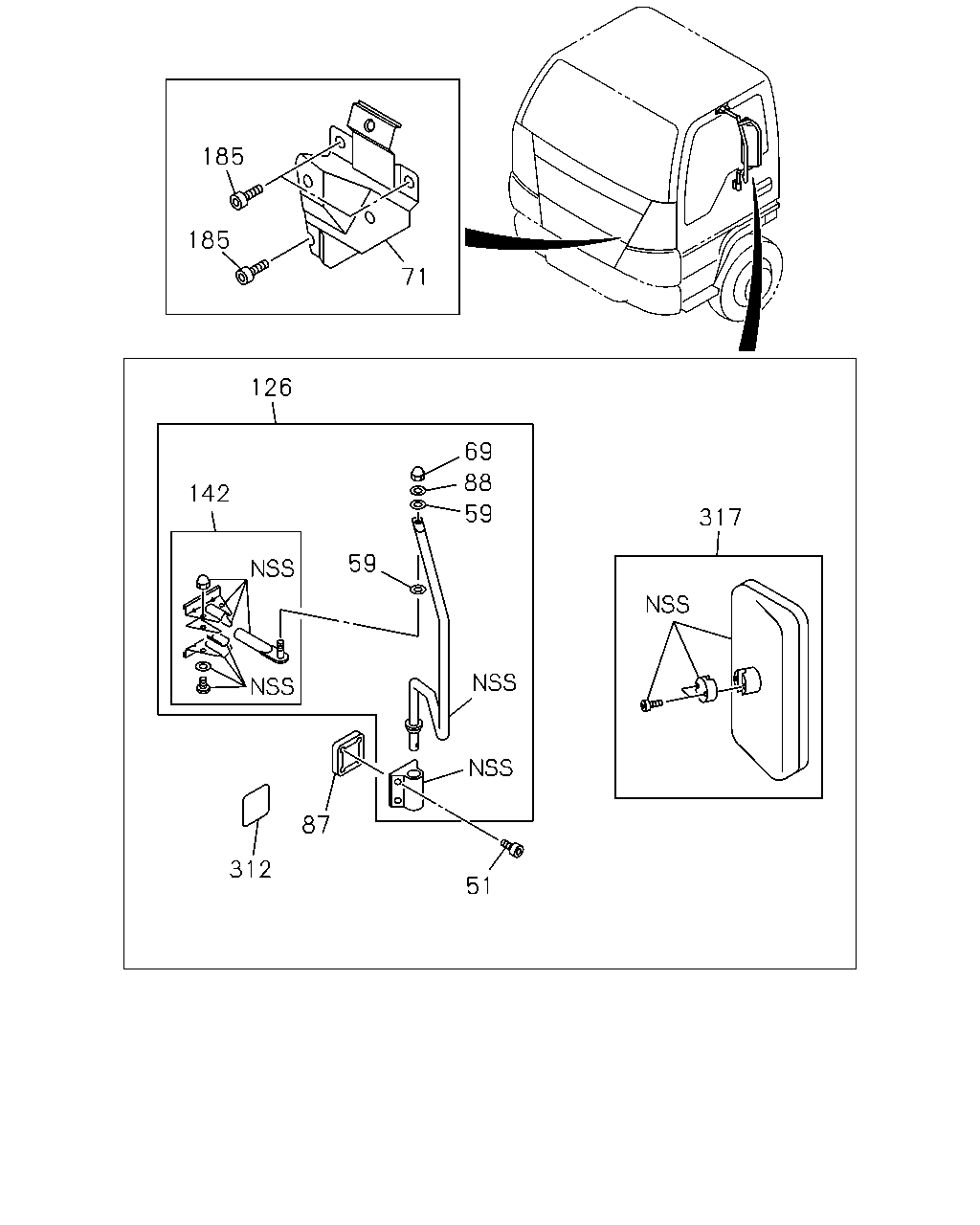

7-20 — MIRROR AND MIRROR STAY
(#162118) — 18 parça
◀
[720A] DOOR MIRROR (13 parça)
[720A] ROOM MIRROR (5 parça)
▶
185
185
71
126
69
88
59
142
59
317
51
87
312
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
51
SCREW; MIRROR
M6X30
8-94279-327-0
08
1
1507-
59
WASHER; LK
T=2.6
8-94279-073-0
04
1
1507-
69
NUT; CAP
M10 CAP NUT
1-09984-134-0
02
1
1507-
71
BRACKET; OUTSIDE MIRROR
8-97581-620-2
01
1
1507-
71
BRACKET; OUTSIDE MIRROR
8-97581-621-2
01
1
1507-
87
SPACER
8-94272-677-0
02
1
1507-
88
WASHER; PL,SUPPORT STAY
ID=10.5 OD=26 T=2.3
1-09985-172-0
02
1
1507-
126
STAY ASM; MIRROR
8-97856-938-4
01
1
1507-
126
STAY ASM; MIRROR
8-97856-939-4
01
1
1507-
142
STAY ASM; SUB
8-97856-622-2
02
1
1507-
185
BOLT; BRKT
M8X12.5 W/LK WASHER
8-98020-348-0
06
1
1507-
312
TAPE
8-97898-006-0
02
1
1507-
317
MIRROR PKG; DOOR
8-98051-644-0
02
1
1507-
1
158
159
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
LIGHT GRAY
8-97582-926-2
01
1
1507-
2
SCREW; MIRROR TO BODY
M5X16
8-94279-341-0
02
1
1507-
3
STOPPER; RR VIEW MIRROR
L=22
8-97857-352-1
01
1
1507-
158
LENS; ROOM LAMP
5-73117-108-1
01
1
1507-
159
BULB; ROOM LAMP
12V 10W
8-97128-771-0
01
1
1507-
