◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#162117) — 11 parça

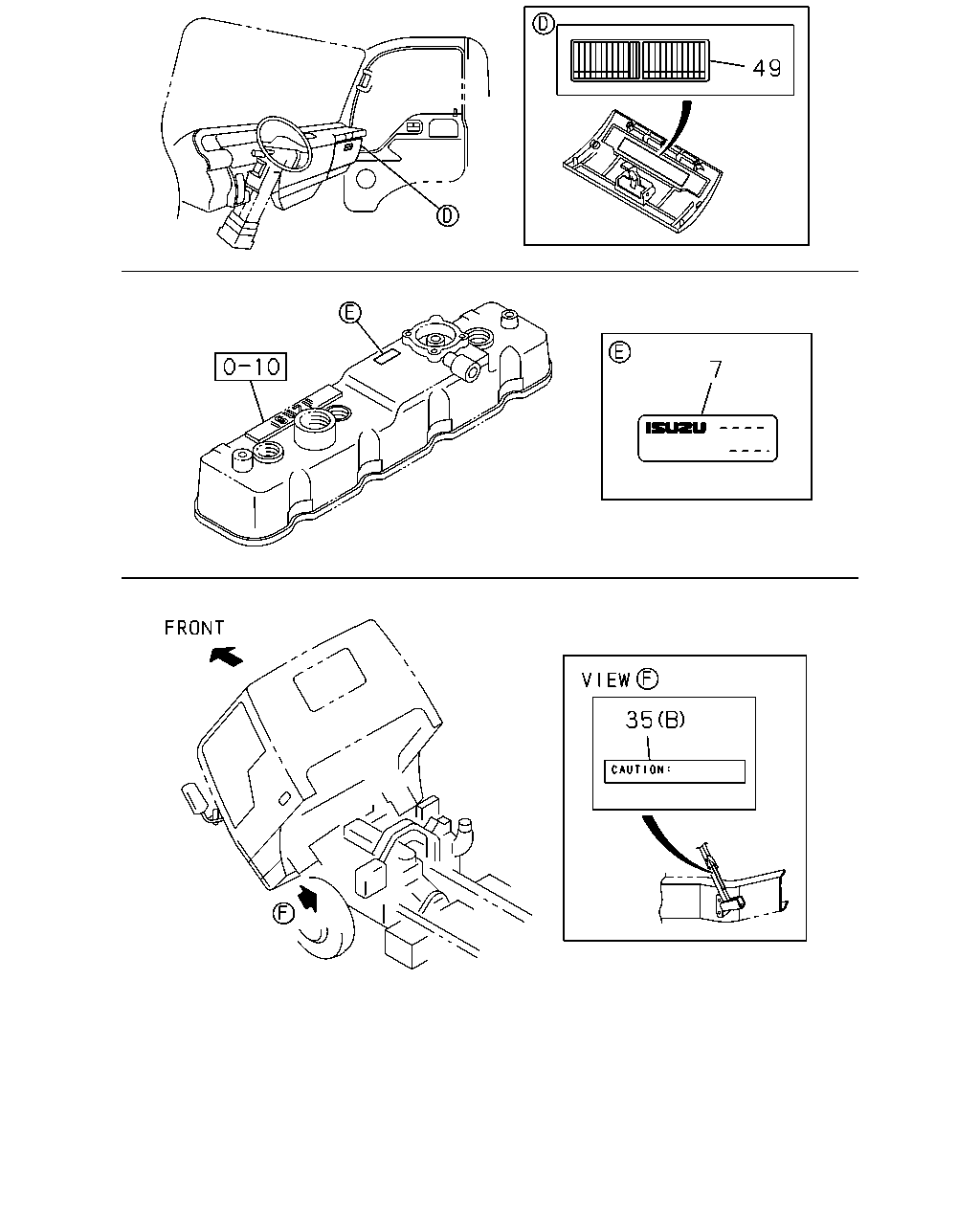

çizim 479861
7 49 35
BalonParca AdiParca NoAdetTipApplied Date
7 LABEL; EMISSION 8-98214-047-0 01 1 1507-
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 1507-
35 PLATE; CAUTION,CAB
CAUTION SPANISH<YN1> (A) 		8-98070-512-0 01 1 1507-
35 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> (A) 		8-98067-809-0 01 1 1507-
49 PLATE; CAUTION,FUSE BOX 8-98214-251-0 01 1 1507-
çizim 480655
4 4 306 35
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98241-860-0 01 1 1507-
4 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98241-859-0 01 1 1507-
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 1507-
35 PLATE; CAUTION,CAB
CAUTION SPANISH<YN1> (A) 		8-98070-512-0 01 1 1507-
35 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> (A) 		8-98067-809-0 01 1 1507-
306 LABEL; BEAM & PASS 8-94273-445-0 01 1 1507-
