6-76 — FLOOR EQUIPMENT AND SEALING (#162111) — 24 parça

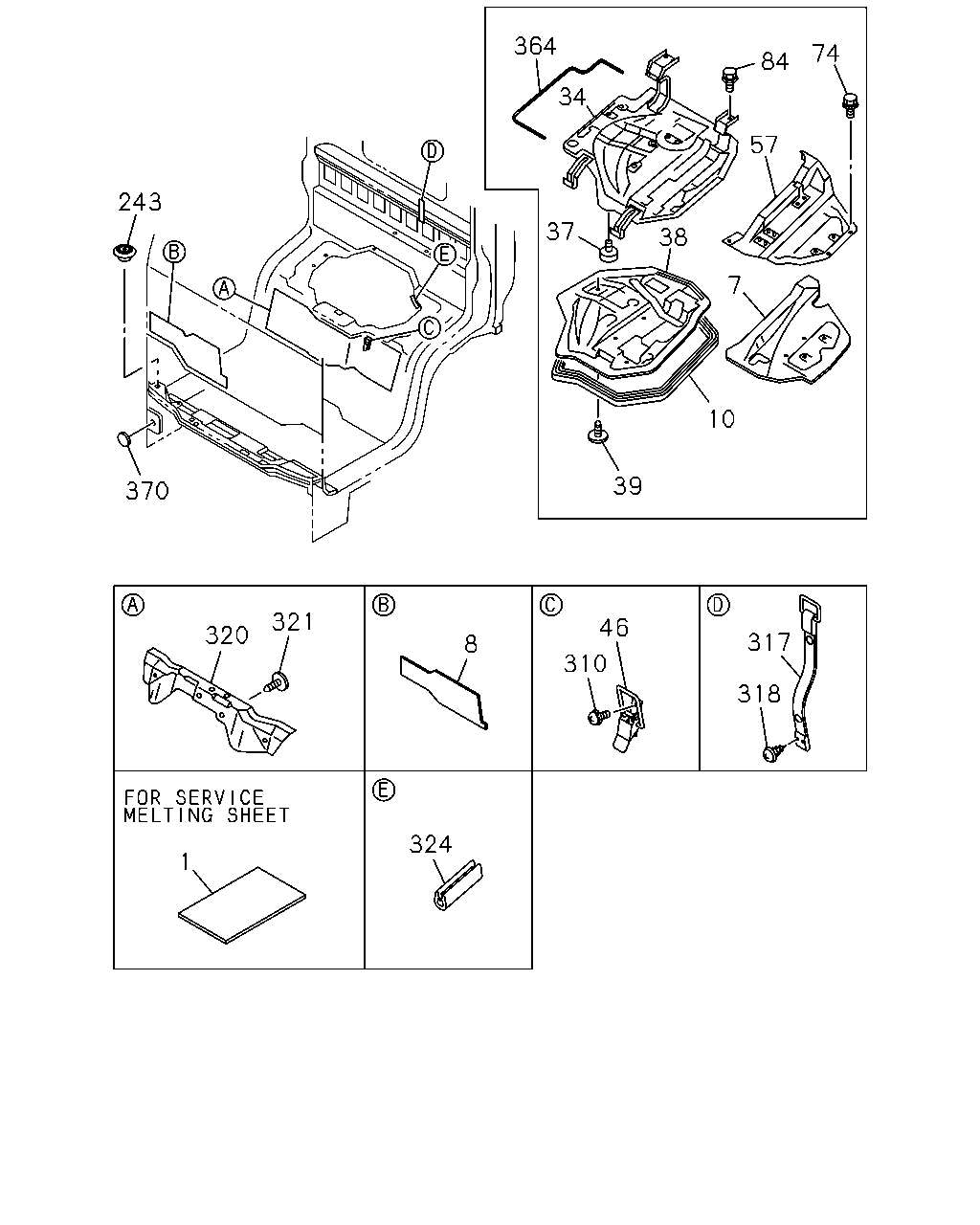

çizim 480778
364 84 74 57 38 10 39 37 7 34 317 318 310 46 8 324 1 320 321 370 243
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 1507-
7 INSULATOR; SUPPORT COVER 8-97856-207-1 01 1 1507-
8 MAT; SILENCER,FRT PANEL 8-98019-713-2 02 1 1507-
10 SEAL; ENG COVER 8-97853-010-4 01 1 1507-
34 COVER ASM; ENG,CAB FLOOR 8-97850-678-1 01 1 1507-
37 RUBBER; BUFFER,ENG COVER
OD=30 T=10 		5-74917-001-2 02 1 1507-
38 INSULATOR; ENG COVER 8-97856-204-1 01 1 1507-
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 07 1 1507-
39 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 1507-
46 HOOK ASM; ENG COVER 8-97853-632-2 02 1 1507-
57 COVER ASM; SUPPORT,CAB FLOOR 8-97866-693-1 01 1 1507-
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE 		0-28650-820-0 04 1 1507-
74 BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE 		0-28650-825-0 01 1 1507-
84 BOLT; ENG COVER HINGE
M8X20 FLANGE 		0-28650-820-0 04 1 1507-
243 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 1507-
310 SCREW; ENG COVER HOOK
M6X16 FLANGE 		0-28650-616-0 04 1 1507-
317 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 1507-
318 SCREW; BAND
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1507-
320 INSULATOR; FLOOR,FRT 8-97857-142-3 01 1 1507-
321 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 03 1 1507-
324 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 1507-
364 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 1507-
370 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517) ,BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARABEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLORTRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1507-
370 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1507-
