◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#162109) — 32 parça

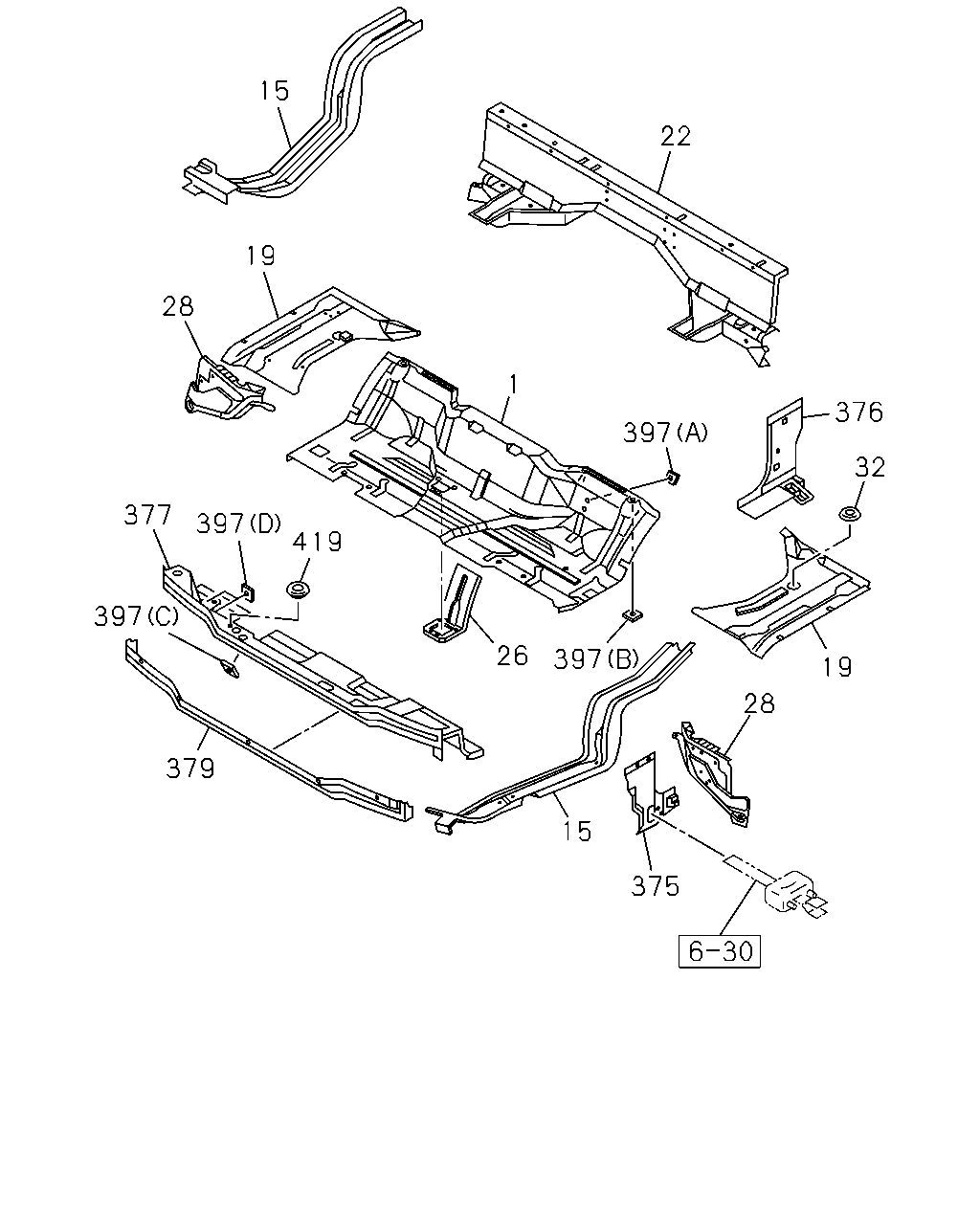

çizim 480558
375 15 397 28 19 32 376 397 1 22 15 19 28 397 377 397 379 419 26
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 8-97850-332-7 01 1 1507-
15 FRAME; UNDER 8-97850-060-9 01 1 1507-
15 FRAME; UNDER 8-98013-405-0 01 1 1507-
19 PANEL; FLOOR SIDE,REAR 8-97850-335-5 01 1 1507-
19 PANEL; FLOOR SIDE,REAR 8-97850-337-5 01 1 1507-
22 FRAME; FLOOR REAR 8-98082-185-4 01 1 1507-
26 PANEL; GEAR CONT REINF 8-97850-005-6 01 1 1507-
28 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1507-
28 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1507-
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=28.5 		8-94279-711-0 02 1 1507-
375 CLOSING; PILLAR 8-97850-086-5 01 1 1507-
375 CLOSING; PILLAR 8-97850-087-4 01 1 1507-
376 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 1507-
376 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 1507-
377 RAIL ASM; MTG,FRT 8-97850-351-9 01 1 1507-
379 PANEL 8-97581-639-0 01 1 1507-
397 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 1507-
397 NUT; PIERCE
(B) M8 		9-09114-048-0 04 1 1507-
397 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 1507-
397 NUT; PIERCE
(C) M8 		9-09114-048-0 03 1 1507-
419 GROMMET; CONT SHAFT,FLOOR PANEL
OD=36 		1-09983-092-0 01 1 1507-

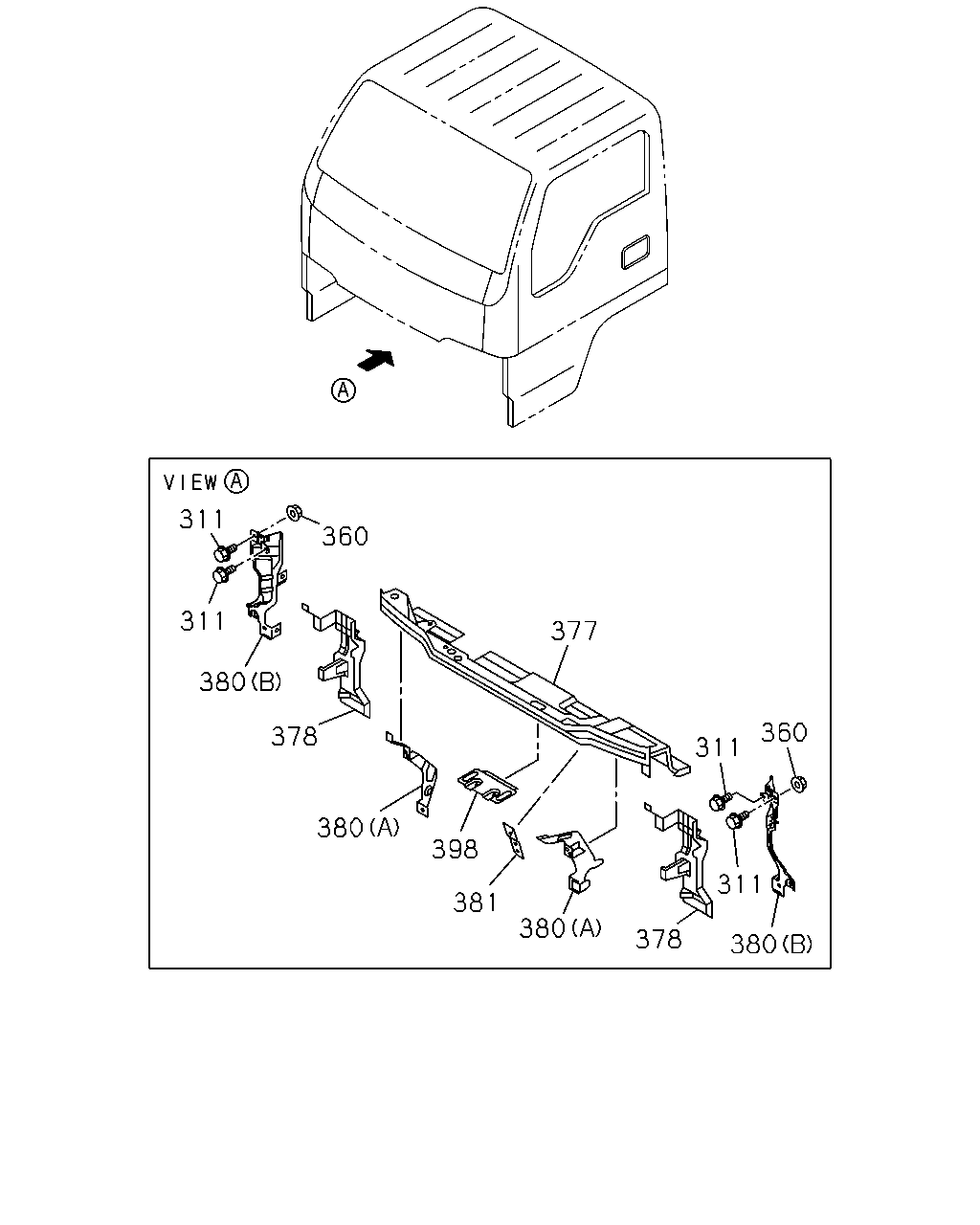

çizim 480607
380 380 380 380 311 311 360 378 377 398 381 311 360 311 378
BalonParca AdiParca NoAdetTipApplied Date
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1507-
360 NUT; BRKT
M6 POP NUT 		8-98013-752-0 02 1 1507-
377 RAIL ASM; MTG,FRT 8-97850-351-9 01 1 1507-
378 GASSET; LWR 8-97581-827-2 01 1 1507-
378 GASSET; LWR 8-97581-828-2 01 1 1507-
380 BRACKET; HEAD LAMP
(A) 		8-97850-359-1 01 1 1507-
380 BRACKET; HEAD LAMP
(A) 		8-97850-704-0 01 1 1507-
380 BRACKET; HEAD LAMP
(B) 		8-98006-087-0 01 1 1507-
380 BRACKET; HEAD LAMP
(B) 		8-98006-088-0 01 1 1507-
381 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 1507-
398 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 1507-
