Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

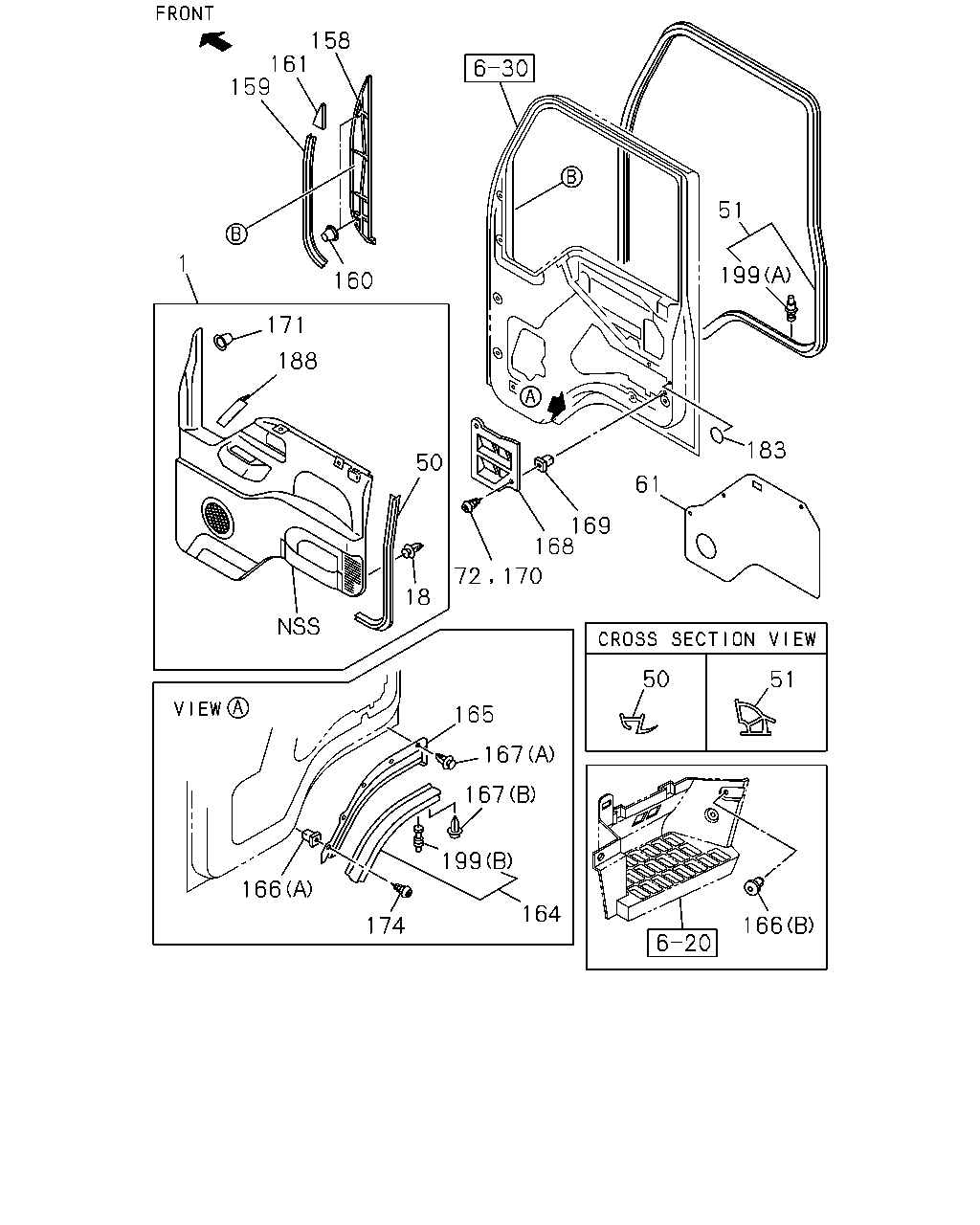

6-35 — FRONT DOOR TRIM
(#162104) — 37 parça
158
161
159
160
1
171
188
50
18
72
170
168
169
61
183
199
51
165
167
167
199
164
174
166
50
51
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
GRAY
8-97582-280-4
01
1
1507-
1
PAD; TRIM,FRT DOOR
GRAY
8-97582-286-4
01
1
1507-
18
CLIP; DOOR PAD
OD=7.9 BLACK
8-94279-974-1
24
1
1507-
50
FINISHER; DOOR PAD
GRAY
8-97582-685-0
02
1
1507-
51
WEATHERSTRIP; FRONT DOOR
8-97892-902-3
01
1
1507-
51
WEATHERSTRIP; FRONT DOOR
8-97892-903-3
01
1
1507-
61
SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95>
8-97852-308-1
02
1
1507-
61
SEAL; WATER,DOOR PAD
EXC. 2-SPEAKER SYSTEM BASE<U95>
8-97852-307-1
02
1
1507-
72
SCREW; DOOR TRIM
M5X12 HEX SOCKET
0-72380-512-0
02
1
1507-
158
GARNISH; DOOR
8-97852-128-2
01
1
1507-
158
GARNISH; DOOR
8-97852-129-2
01
1
1507-
159
FINISHER; GARNISH
8-97852-257-4
02
1
1507-
160
CLIP; GARNISH
8-97852-058-0
04
1
1507-
161
FASTENER; GARNISH
8-97134-312-1
01
1
1507-
161
FASTENER; GARNISH
8-97134-313-1
01
1
1507-
164
SEAL; SUB,SILL SIDE
8-97852-319-4
01
1
1507-
164
SEAL; SUB,SILL SIDE
8-97852-320-4
01
1
1507-
165
LINER; DOOR LWR
8-97581-080-0
01
1
1507-
165
LINER; DOOR LWR
8-97581-081-0
01
1
1507-
166
PLUG; HOLE
(B) OD=8
1-09983-125-0
02
1
1507-
166
PLUG; HOLE
(A) D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1507-
167
CLIP; LINER
(A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1507-
167
CLIP; LINER
(B) D6X20 PUSH RIVET
8-97859-673-0
02
1
1507-
168
VALVE; DOOR OUTLET
8-97855-412-0
01
1
1507-
168
VALVE; DOOR OUTLET
8-97855-413-0
01
1
1507-
169
GROMMET; SCREW,VALVE
D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1507-
170
SCREW; VALVE
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1507-
171
RETAINER; DOOR PAD
5-09709-049-0
02
1
1507-
174
SCREW; LINER
T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
04
1
1507-
183
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
1507-
188
CASE; DOOR
GRAY
8-97582-684-3
01
1
1507-
188
CASE; DOOR
GRAY
8-97582-693-3
01
1
1507-
199
CLIP; SEAL
(A) FRONT NATURAL
1-09987-253-1
09
1
1507-
199
CLIP; SEAL
(A) FRONT YELLOW
1-09987-254-1
09
1
1507-
199
CLIP; SEAL
(A) LOWER & BACK PINK
1-09987-256-0
32
1
1507-
199
CLIP; SEAL
(B) NATURAL
8-97852-455-0
07
1
1507-
199
CLIP; SEAL
(B) PINK
8-97852-456-0
07
1
1507-
