6-32 — FRONT DOOR LOCK AND HANDLE (#162103) — 27 parça

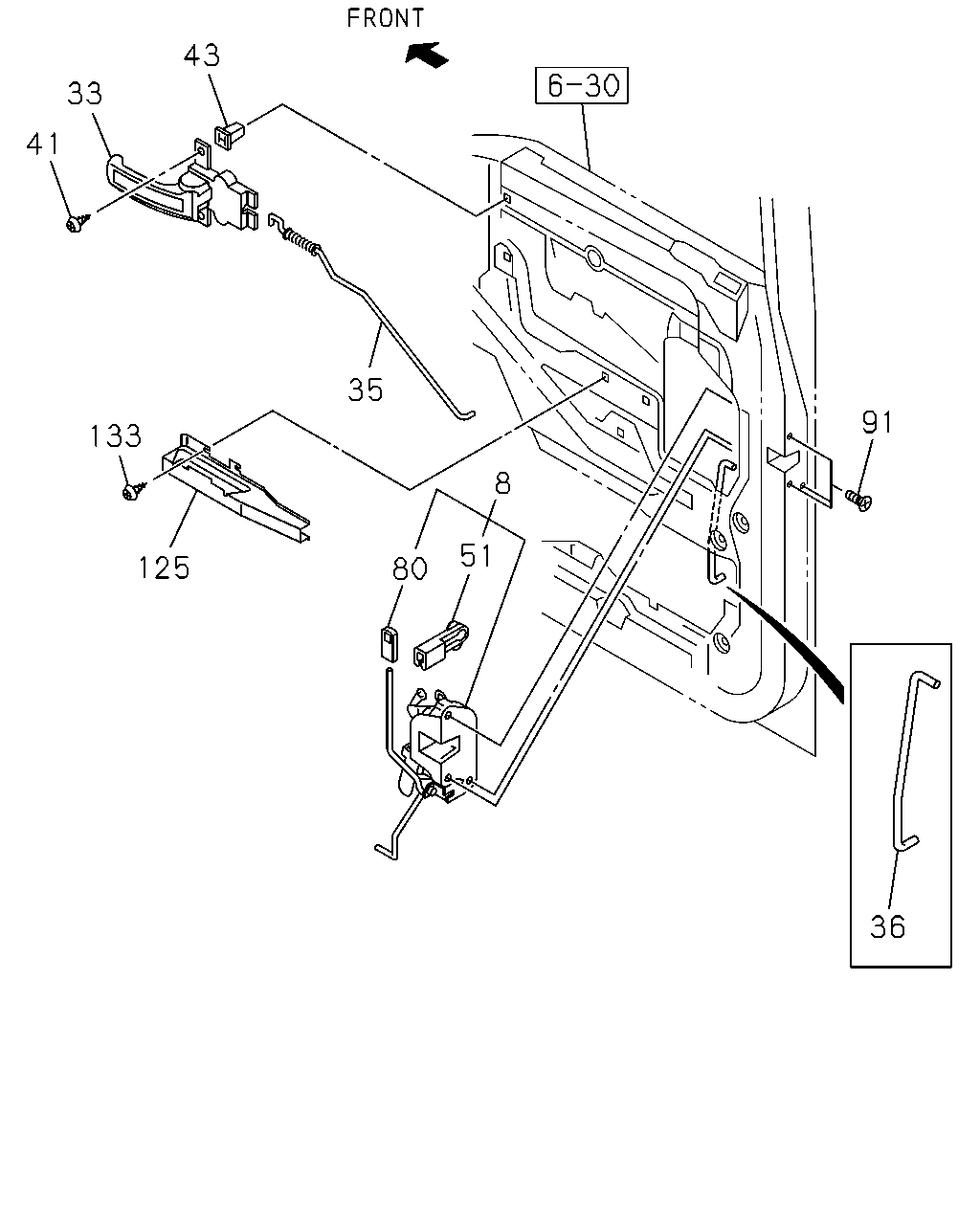

çizim 480675
43 33 41 35 133 125 80 8 51 91 36
BalonParca AdiParca NoAdetTipApplied Date
8 LOCK; DOOR,FRT DOOR
GRAY 		8-97406-309-2 01 1 1507-
8 LOCK; DOOR,FRT DOOR
GRAY 		8-97406-310-2 01 1 1507-
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-388-0 01 1 1507-
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-389-0 01 1 1507-
35 LINK; DOOR LOCK,INSIDE 8-97890-886-3 01 1 1507-
35 LINK; DOOR LOCK,INSIDE 8-97890-887-3 01 1 1507-
36 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 1507-
36 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 1507-
41 SCREW; INSIDE HANDLE
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1507-
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1507-
51 SNAP; FRT DOOR LOCK CONT ROD 8-97852-643-0 01 1 1507-
51 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 1507-
80 KNOB; DOOR LOCK
GRAY 		8-97406-876-0 02 1 1507-
91 BOLT; DOOR LOCK
SCREW M6X14.5 		8-98004-342-0 06 1 1507-
125 BRACKET; DOOR PULL 8-97869-459-1 01 1 1507-
125 BRACKET; DOOR PULL 8-97869-460-1 01 1 1507-
133 SCREW; DOOR PULL STAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1507-

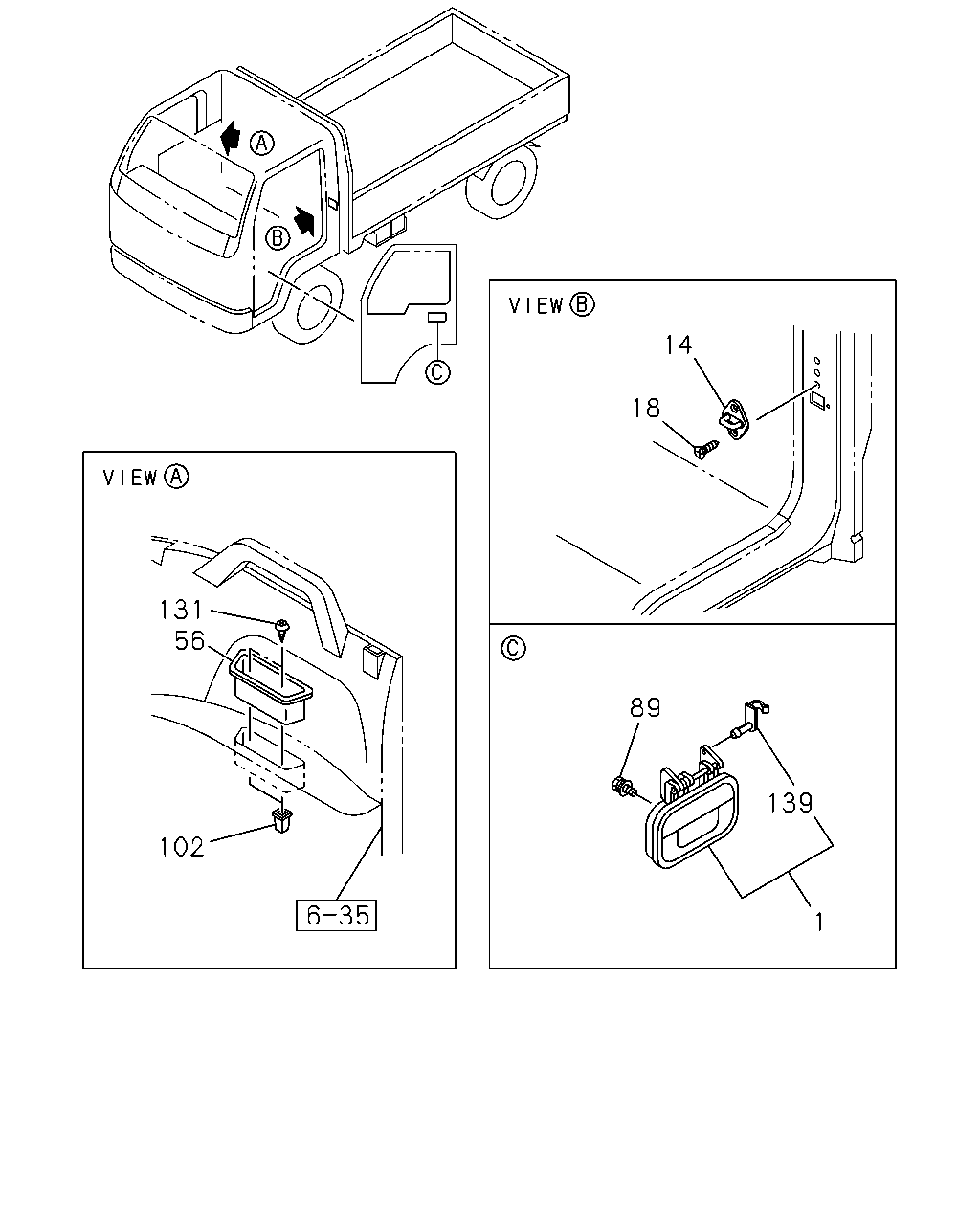

çizim 480772
14 18 131 56 102 89 139 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 1507-
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 1507-
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 1507-
18 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1507-
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97406-318-3 02 1 1507-
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES 		8-98064-276-1 04 1 1507-
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1507-
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 HEX SOCKET 		0-72380-512-0 04 1 1507-
139 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 1507-
139 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 1507-
