6-03 — RADIATOR GRILLE
(#162096) — 14 parça
◀

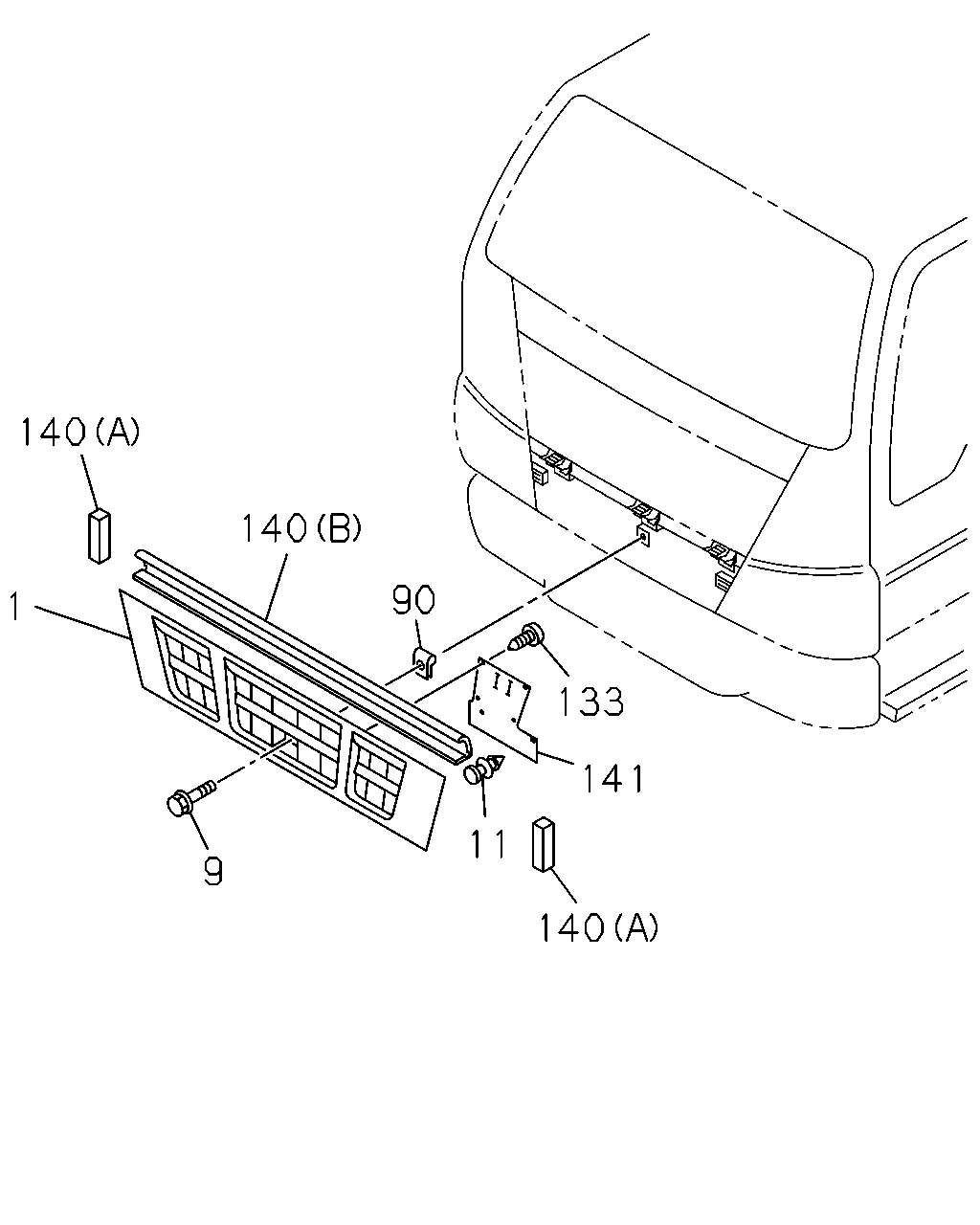

[603A] NO.1 (8 parça)
[603A] NO.2 (6 parça)
▶
140
140
90
133
141
140
11
1
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR
8-97581-825-2
01
1
1507-
9
SCREW; RAD GRILLE
M6X20 W/PL WASHER
8-98059-504-0
01
1
1507-
11
CLIP; RAD GRILLE
8-97581-651-2
04
1
1507-
90
NUT; RAD GRILLE
8-98014-760-0
01
1
1507-
133
SCREW; COVER
M5X12 W/PL WASHER
8-94385-565-0
06
1
1507-
140
SEAL; RAD GRILLE
(B)
8-97581-664-0
01
1
1507-
140
SEAL; RAD GRILLE
(A)
8-97583-411-1
02
1
1507-
141
COVER; RAD GRILLE
8-97581-648-1
01
1
1507-
129
184
188
116
2
188
179
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GRILLE; ORNAMENT
WO/DECAL
8-97582-873-5
01
1
1507-
116
MOLDING; ORNAMENT GRILLE
8-97581-655-1
01
1
1507-
129
CLIP; COVER HEADLAMP GRILLE
D=6.5
8-97855-279-0
02
1
1507-
179
RETAINER; GRILLE,RAD
WHITE
8-97102-415-0
03
1
1507-
184
GROMMET; ORNAMENT
8-97581-668-0
02
1
1507-
188
SEAL; ORNAMENT
8-97584-800-0
02
1
1507-
