Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

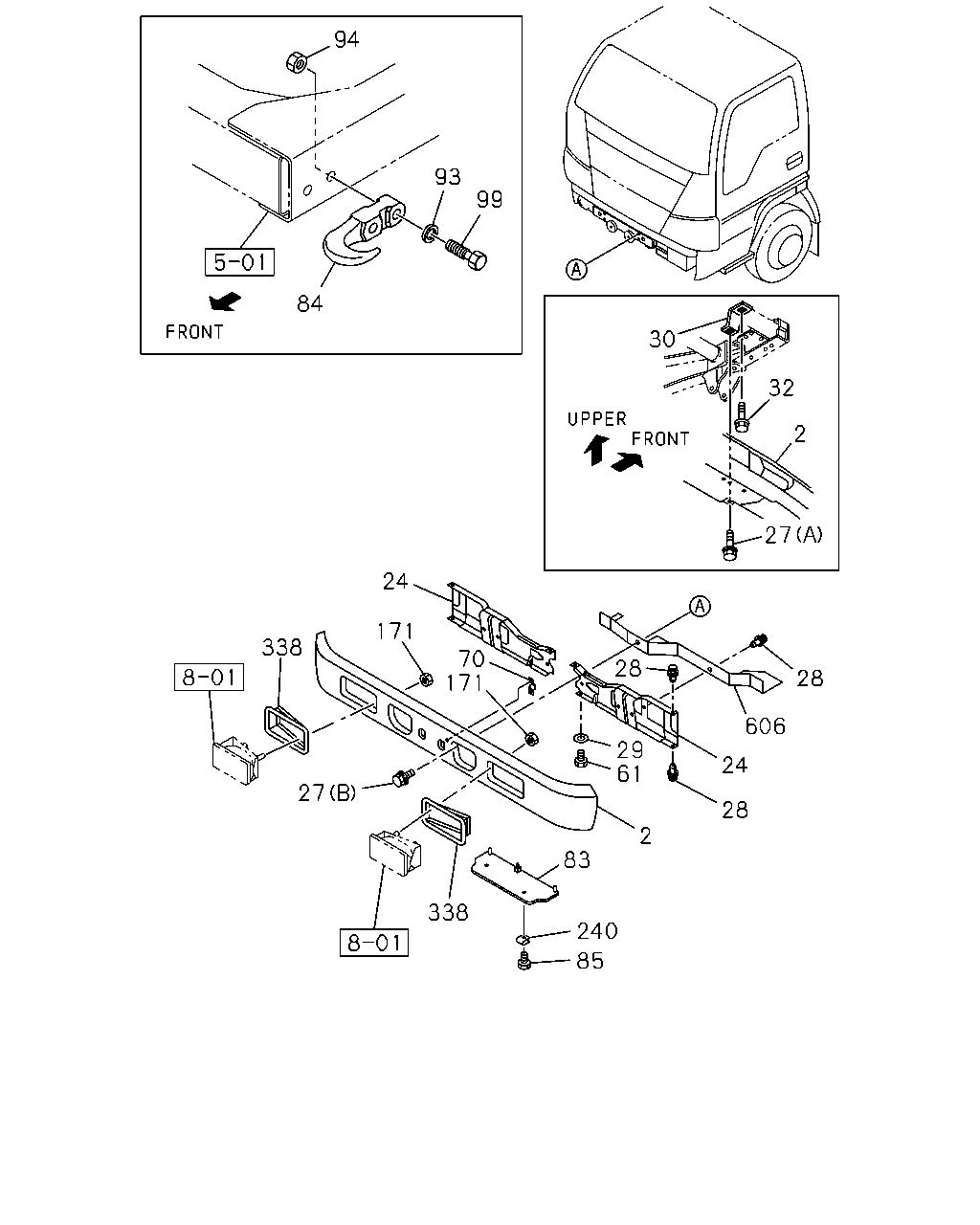

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#162095) — 27 parça
94
93
99
84
30
32
2
27
28
28
606
24
28
29
61
2
83
240
85
338
27
338
24
171
70
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BUMPER; FRT,CENTER
FOG LAMP<T96> DARK GRAY
8-97585-462-0
01
1
1507-
2
BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> DARK GRAY
8-97582-422-0
01
1
1507-
24
BAR; FRT BUMPER
FOG LAMP<T96>
8-97070-817-4
01
1
1507-
24
BAR; FRT BUMPER
FOG LAMP<T96>
8-97070-818-4
01
1
1507-
24
BAR; FRT BUMPER
EXC. FOG LAMP<T96>
8-97035-751-6
01
1
1507-
24
BAR; FRT BUMPER
EXC. FOG LAMP<T96>
8-97035-752-6
01
1
1507-
27
BOLT; BUMPER TO BACK BAR
(A) M8X22 W/LK&PL WASHER
8-94279-148-1
02
1
1507-
27
BOLT; BUMPER TO BACK BAR
(B) M10X35 W/LK&PL WASHER
8-97101-865-0
04
1
1507-
28
FASTENER; BACK BAR
FOG LAMP<T96> D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
12
1
1507-
28
FASTENER; BACK BAR
EXC. FOG LAMP<T96> D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
08
1
1507-
29
WASHER; FRT BUMPER
ID=8.5
8-94167-476-0
06
1
1507-
30
BRACKET; FRT BUMPER
8-97093-639-3
02
1
1507-
32
BOLT; BRKT,BUMPER
M8X25 FLANGE
0-28650-825-0
02
1
1507-
61
BOLT; BACK BAR
M8X18 W/LK WASHER
0-50540-818-0
06
1
1507-
70
BRACKET; LICENSE PLATE,FRT
8-94151-164-1
02
1
1507-
83
GUIDE; AIR,FRT BUMPER
8-97076-832-2
01
1
1507-
84
HOOK
8-94249-270-2
01
1
1507-
85
BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER
8-97012-072-0
03
1
1507-
93
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
02
1
1507-
94
NUT; HOOK
M14
0-91110-514-0
02
1
1507-
99
BOLT; HOOK
M14X55
8-97301-262-0
02
1
1507-
171
NUT; BACK BAR
FOG LAMP<T96> M8 FLANGE
1-09464-018-1
04
1
1507-
240
NUT; AIR GUIDE,FRT BUMPER
M6 SPIRE NUT
8-97210-973-1
03
1
1507-
338
BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY
8-97585-463-0
01
1
1507-
338
BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY
8-97585-464-0
01
1
1507-
606
SEAL; BACK BAR
FOG LAMP<T96>
8-97867-844-0
02
1
1507-
606
SEAL; BACK BAR
EXC. FOG LAMP<T96>
8-97867-844-0
01
1
1507-
