Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#162091) — 22 parça
◀

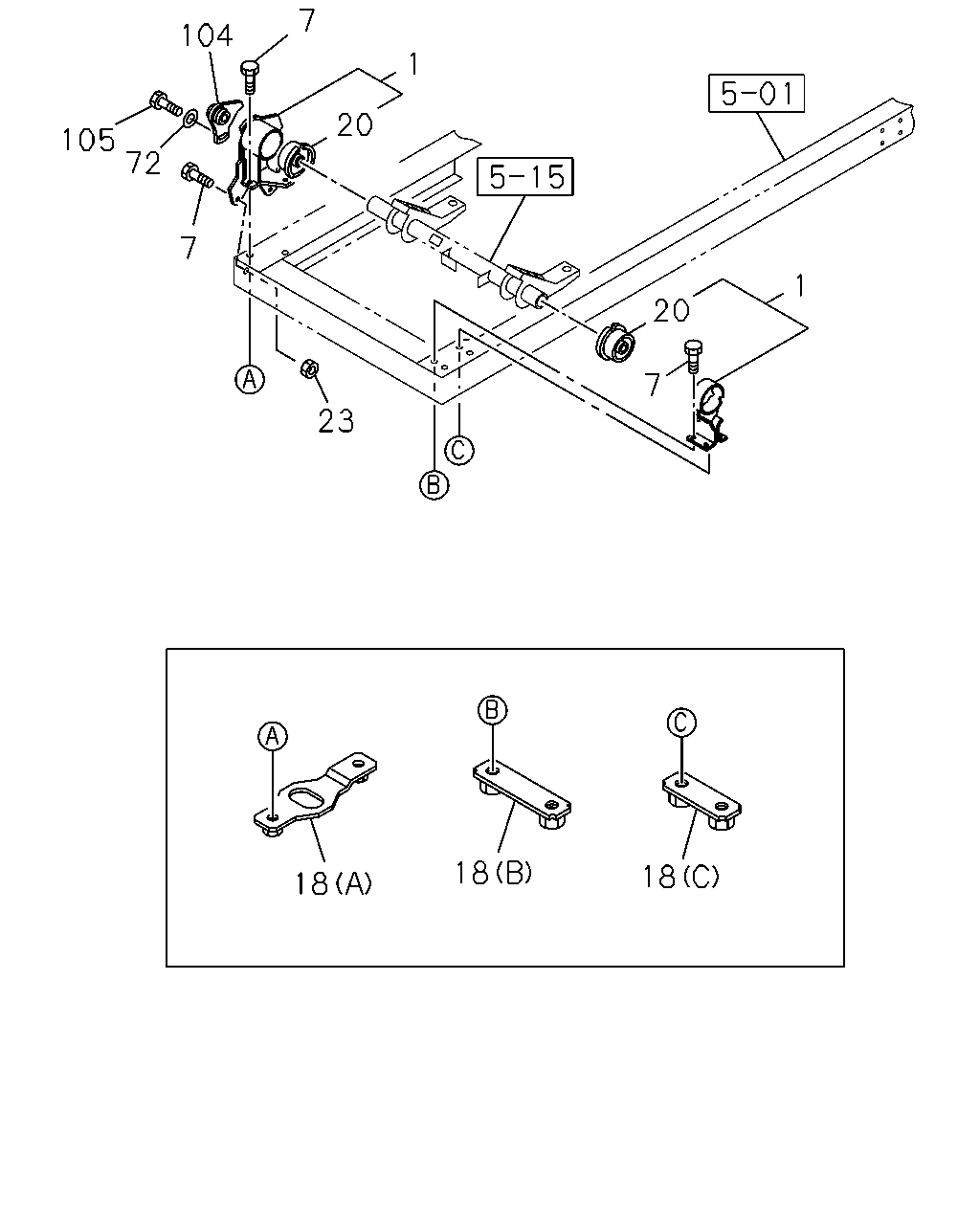

[510A] FRONT (11 parça)
[510A] REAR (11 parça)
▶
1
20
7
23
1
20
7
104
72
105
7
18
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
MANUAL TILT CAB<RWZ>
8-97388-363-0
01
1
1507-
1
BRACKET; CAB MTG
MANUAL TILT CAB<RWZ>
8-97388-364-1
01
1
1507-
7
BOLT; BRKT,CAB TILT
MANUAL TILT CAB<RWZ> M12X40 FLANGE
0-28651-240-0
08
1
1507-
18
PLATE; MTG BRKT FIX
MANUAL TILT CAB<RWZ> (B)
8-97034-139-2
01
1
1507-
18
PLATE; MTG BRKT FIX
MANUAL TILT CAB<RWZ> (C)
8-97034-140-2
01
1
1507-
18
PLATE; MTG BRKT FIX
MANUAL TILT CAB<RWZ> (A)
8-97388-371-0
01
1
1507-
20
RUBBER; MTG,CAB BRKT
MANUAL TILT CAB<RWZ>
8-97096-893-1
02
1
1507-
23
NUT; MTG BRKT
MANUAL TILT CAB<RWZ> M12 FLANGE
0-91180-112-0
02
1
1507-
72
WASHER; PL,BRKT TO FRAME
MANUAL TILT CAB<RWZ> ID=15 OD=36
0-91614-714-0
01
1
1507-
104
BRACKET; CAB FRAME,CAB FRT MTG
MANUAL TILT CAB<RWZ>
8-98286-068-0
01
1
1507-
105
BOLT; BRKT TO CAB FRAME
MANUAL TILT CAB<RWZ> M14X35 FLANGE
0-28661-435-0
01
1
1507-
159
199
300
168
149
151
156
199
192
191
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ> H=62
8-98021-561-1
02
1
1507-
151
WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> ID=17 OD=62
8-97359-042-1
02
1
1507-
156
NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> M16
0-91111-516-0
02
1
1507-
159
RUBBER; CUSHION,CAB MTG
MANUAL TILT CAB<RWZ>
8-97113-340-0
04
1
1507-
168
NUT; CUSHION RUBBER,BODY MTG
MANUAL TILT CAB<RWZ> M8 FLANGE
0-91180-108-0
04
1
1507-
191
BOLT; BRKT FIX
MANUAL TILT CAB<RWZ> M12X35 FLANGE
0-28651-235-0
08
1
1507-
192
NUT; BRKT FIX
MANUAL TILT CAB<RWZ> M12 FLANGE
0-91180-112-0
08
1
1507-
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (C)
8-97356-576-2
01
1
1507-
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98018-949-1
01
1
1507-
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98036-883-0
02
1
1507-
300
BOLT; MTG RUBBER
MANUAL TILT CAB<RWZ> M10X20 FLANGE
0-28651-020-0
08
1
1507-
