5-01 — FRAME AND OTHER PARTS
(#162090) — 33 parça
◀
[501A] CROSS MEMBER AND BRACKET(NO.1) (9 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (12 parça)
[501A] RIVET AND BOLT (11 parça)
[501A] FRAME ASM (1 parça)
▶
17
2
17
20
42
34
75
345
75
198
198
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97034-332-2
01
1
1507-
17
GUSSET; 1ST C/MBR
8-97088-205-1
02
1
1507-
20
MEMBER; CROSS,2ND
8-97078-581-1
01
1
1507-
34
MEMBER; CROSS,3RD
8-97039-670-1
01
1
1507-
42
MEMBER; CROSS,ENG MTG
8-97165-923-1
01
1
1507-
75
GUSSET; 5TH C/MBR
8-94258-075-3
02
1
1507-
139
MEMBER; CROSS,6TH
8-97045-542-2
01
1
1507-
198
GUSSET; 6TH C/MBR
8-94258-081-1
02
1
1507-
345
MEMBER; CROSS,5TH
8-97081-061-2
01
1
1507-
105
140
101
51
39
142
63
24
358
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; FRT SPR,FRT
8-94366-818-1
01
1
1507-
24
BRACKET; FRT SPR,FRT
8-97065-789-1
01
1
1507-
39
BRACKET; FRT SPR,RR
8-94258-091-0
02
1
1507-
51
BRACKET; ENG SUPPORT,OUTER
8-94258-086-1
02
1
1507-
63
BRACKET; RAD MTG
8-94257-950-1
01
1
1507-
101
BRACKET; RR SPR,FRT
8-94258-093-1
02
1
1507-
105
BRACKET; RR SPR,RR
8-94126-620-1
01
1
1507-
105
BRACKET; RR SPR,RR
8-94126-621-1
01
1
1507-
140
BRACKET; S/ABS,RR
8-94258-103-1
01
1
1507-
140
BRACKET; S/ABS,RR
8-94258-104-1
01
1
1507-
142
BRACKET; FLEX HOSE,BRAKE
8-97047-775-1
01
1
1507-
358
BRACKET; CAB EARTH
8-97210-488-0
01
1
1507-
376
376
376
376
376
376
376
376
376
376
176
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
176
BOLT; C/MBR,ENG MTG
M10X25 FLANGE
0-28051-025-0
08
1
1507-
376
RIVET; FRAME
(A) D8X20 TAPER END
9-06750-820-0
AR
1
1507-
376
RIVET; FRAME
(B) D8X22 TAPER END
9-06750-822-0
AR
1
1507-
376
RIVET; FRAME
(C) D8X28 TAPER END
9-06750-828-0
AR
1
1507-
376
RIVET; FRAME
(D) D10X24 TAPER END
9-06751-024-0
AR
1
1507-
376
RIVET; FRAME
(E) D10X26 TAPER END
9-06751-026-0
AR
1
1507-
376
RIVET; FRAME
(F) D10X28 TAPER END
9-06751-028-0
AR
1
1507-
376
RIVET; FRAME
(G) D10X30 TAPER END
9-06751-030-0
AR
1
1507-
376
RIVET; FRAME
(H) D10X32 TAPER END
9-06751-032-0
AR
1
1507-
376
RIVET; FRAME
(I) D10X36 TAPER END
9-06751-036-0
AR
1
1507-
376
RIVET; FRAME
(J) D12X30 TAPER END
9-06751-230-0
AR
1
1507-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

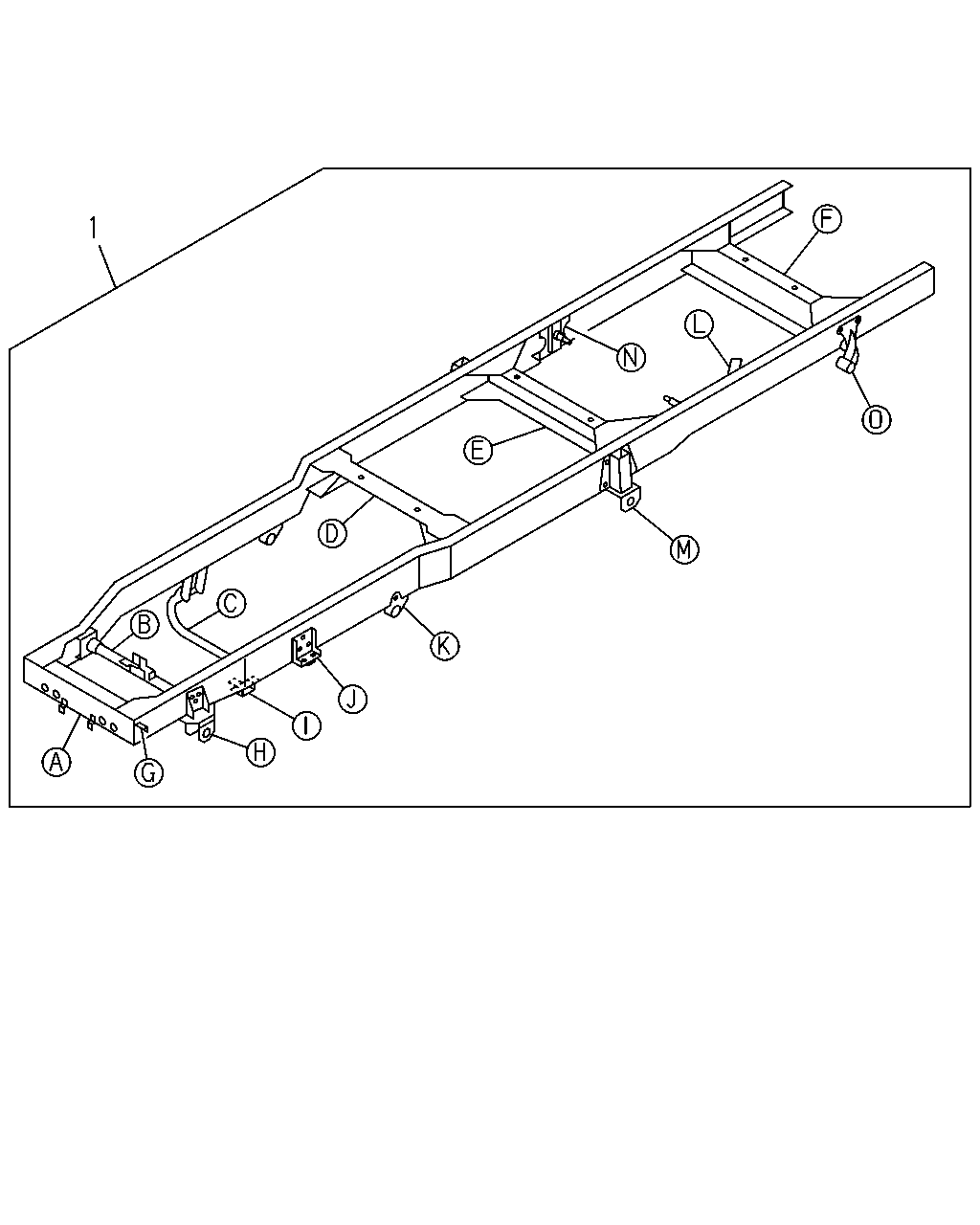

1
FRAME ASM
8-98312-981-0
01
1
1507-
