4-80 — ROAD WHEEL (#162089) — 12 parça

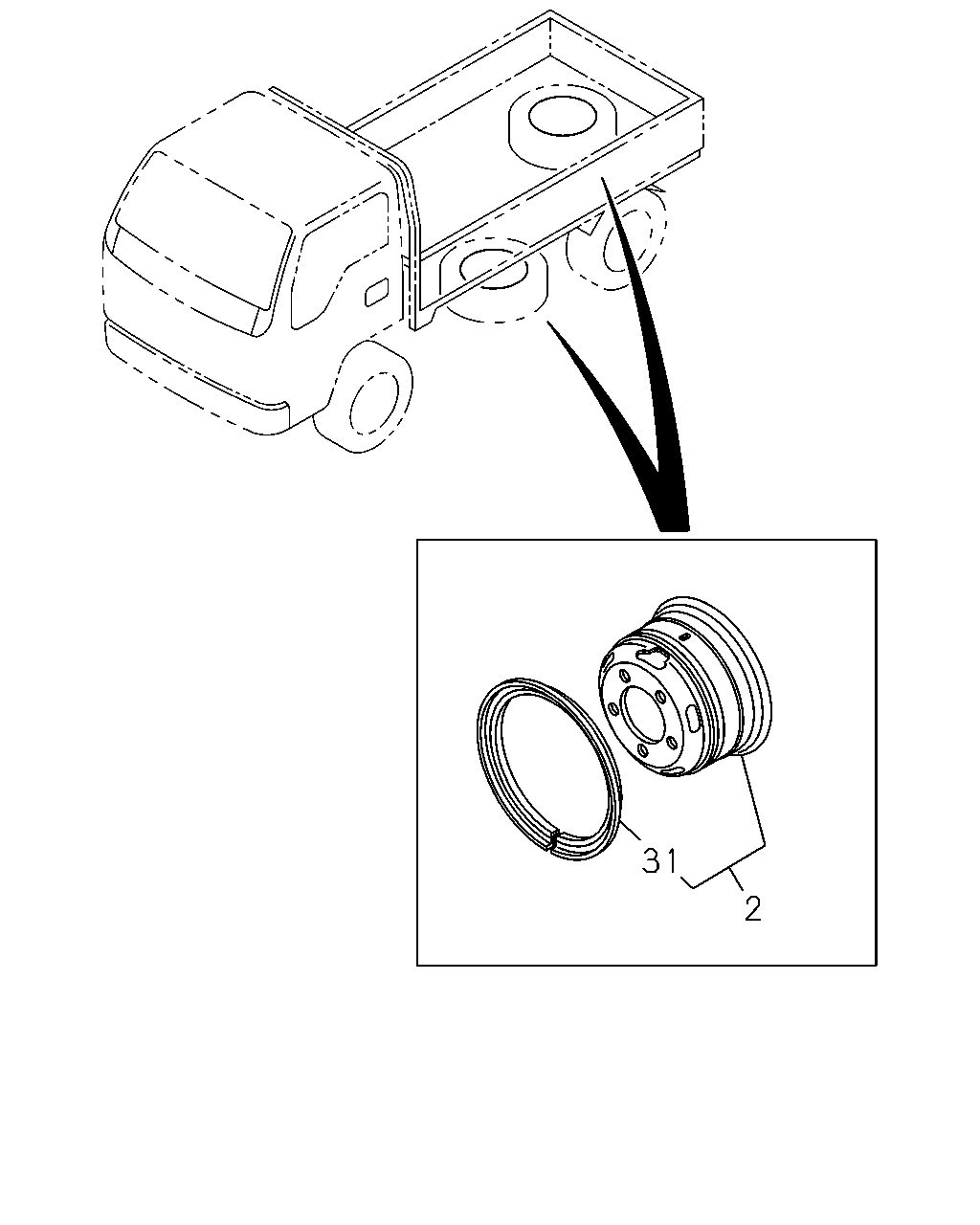

çizim 480445

2 31

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	WHEEL; DISC SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1507-
	2	WHEEL; DISC FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1507-
	31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1507-
	31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1507-

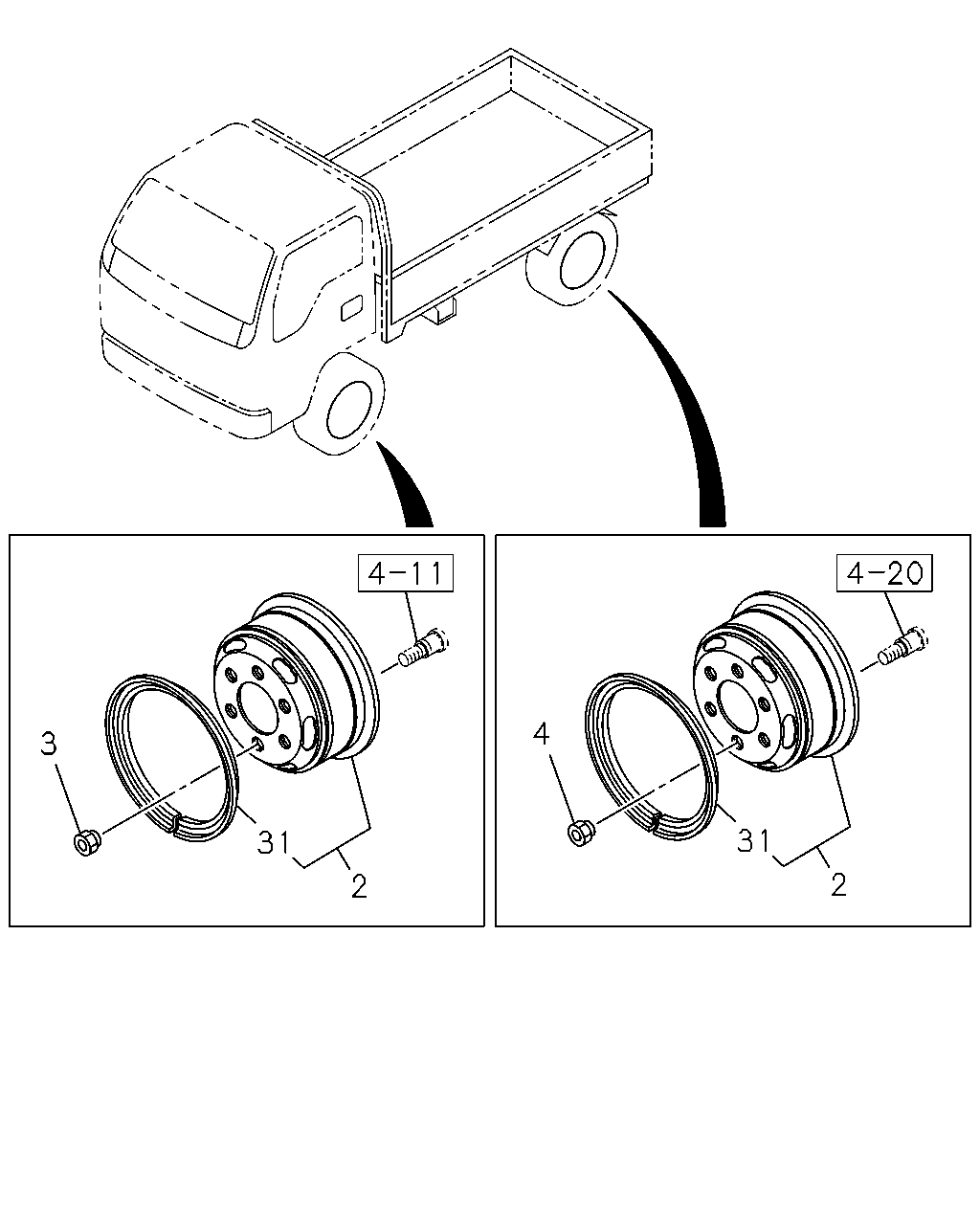

çizim 481004

3 3 2 4 2 31 31

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	WHEEL; DISC SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1507-
	2	WHEEL; DISC FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1507-
	3	NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	1507-
	3	NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	1507-
	4	NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	1507-
	4	NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	1507-
	31	RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1507-
	31	RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1507-
