◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#162088) — 11 parça

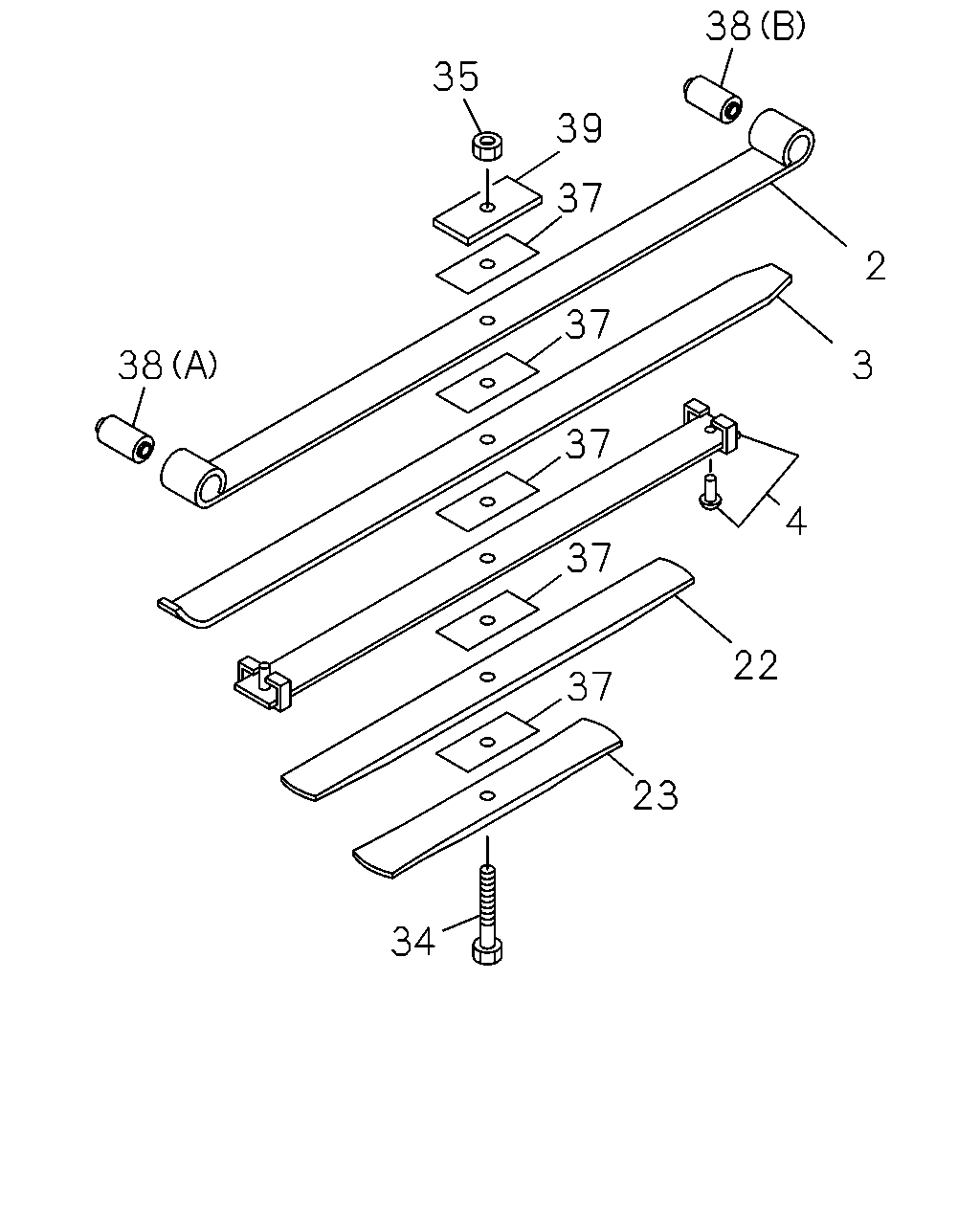

çizim 480315
38 35 38 39 37 37 37 37 37 23 22 4 3 2 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97693-008-0 		5-87220-434-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97693-008-0 		5-87220-436-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97693-008-0 		5-87220-438-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97693-008-0 		5-87220-443-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97693-008-0 		5-87220-445-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
ASM PART: A = 8-97693-008-0 		5-87220-450-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
ASM PART: A = 8-97693-008-0 		5-87220-452-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
ASM PART: A = 8-97693-008-0 		5-87220-462-0 05 1 -
38 BUSHING; LEAF SPR,RR
(A) ASM PART: A = 8-97693-008-0 		5-87220-454-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B) ASM PART: A = 8-97693-008-0 		5-87220-456-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
ASM PART: A = 8-97693-008-0 		5-87220-458-0 01 1 -
