◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#162085) — 15 parça

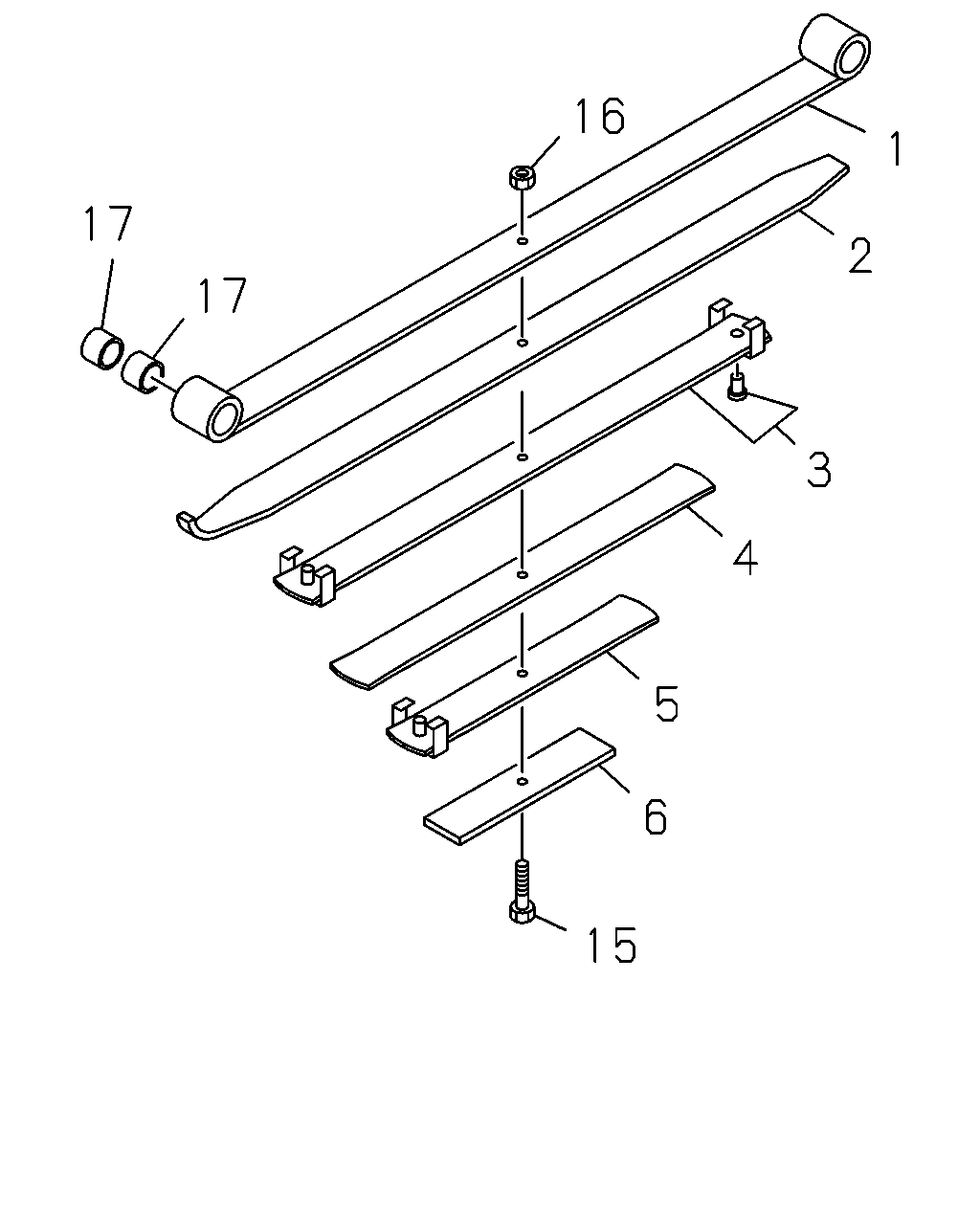

çizim 479942
17 16 17 2 1 3 4 5 6 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97693-005-0 		5-87220-395-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97693-007-0 		5-87220-397-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97693-005-0 		5-87220-399-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97693-007-0 		5-87220-401-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97693-005-0 		5-87220-403-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97693-007-0 		5-87220-405-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-97693-005-0 		5-87220-407-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-97693-007-0 		5-87220-409-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-97693-005-0 		5-87220-411-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-97693-007-0 		5-87220-413-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-97693-005-0 		5-87220-415-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-97693-007-0 		5-87220-417-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=65 ASM PART: A = 8-97693-005-0, B = 8-97693-007-0 		5-87220-423-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
ASM PART: A = 8-97693-005-0, B = 8-97693-007-0 		5-87220-426-0 01 1 -
17 BUSHING; LEAF SPR,FRT
ASM PART: A = 8-97693-005-0, B = 8-97693-007-0 		5-87220-430-0 04 1 -
