Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

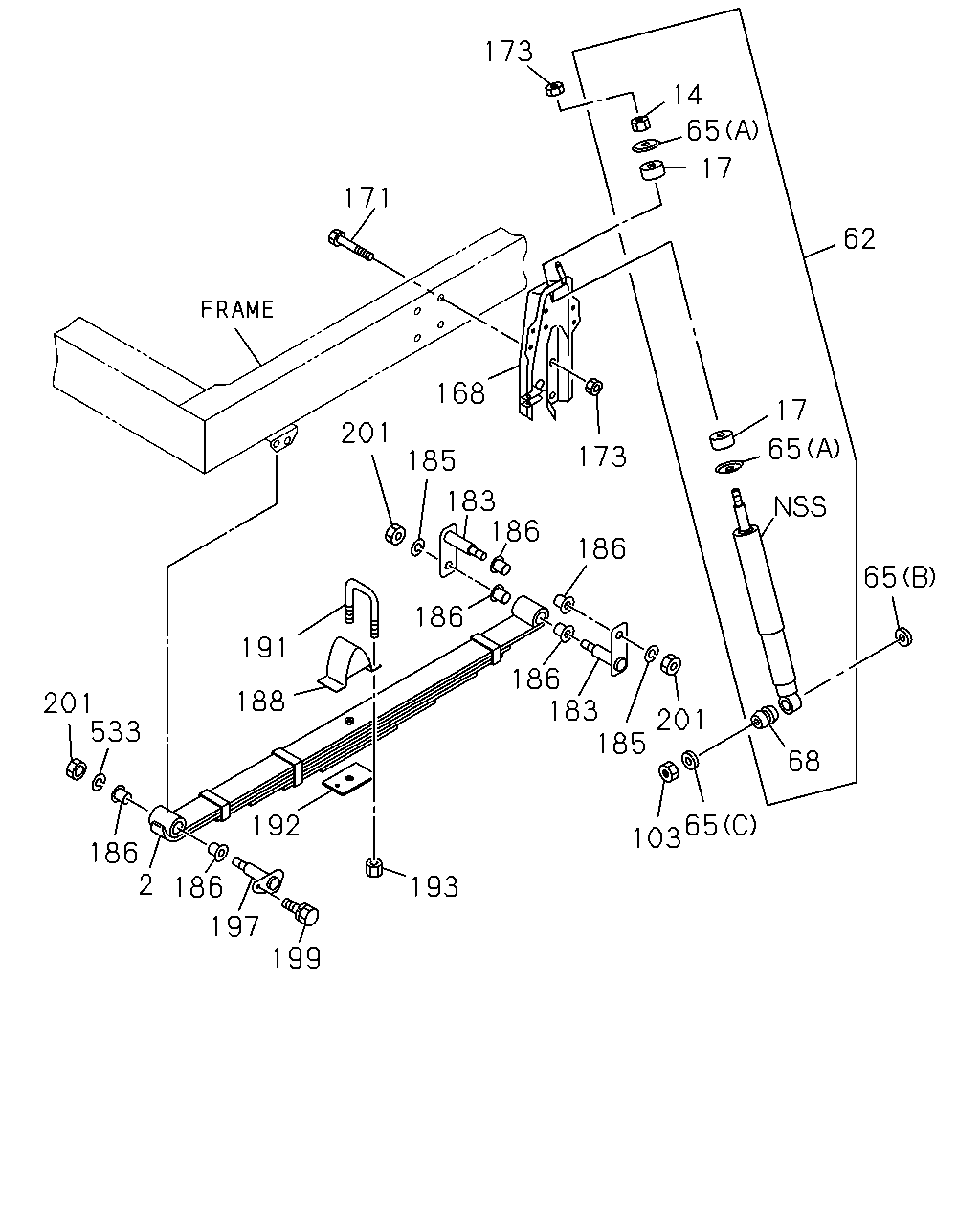

4-50 — FRONT SUSPENSION
(#162084) — 29 parça
173
171
201
168
173
186
186
186
186
183
185
103
201
68
65
65
17
62
14
17
65
191
188
192
193
65
199
197
186
186
533
201
2
185
183
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF
8-97693-005-0
01
1
1507-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF
8-97693-007-0
01
1
1507-
14
NUT; S/ABS,UPR
M10
8-94317-772-0
02
1
1507-
17
BUSHING; RUBBER,S/ABS
TOKICO
9-51631-603-0
04
1
1507-
62
ABSORBER ASM; SHOCK,FRT
8-97260-214-1
02
1
1507-
62
ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS
5-87610-152-0
02
1
1507-
65
WASHER; S/ABS
(B) ID=17 OD=32
0-91614-616-0
02
1
1507-
65
WASHER; S/ABS
(A) ID=10.5 OD=38
9-51631-062-0
04
1
1507-
65
WASHER; S/ABS
(C) ID=12.5
9-51679-022-0
02
1
1507-
68
BUSHING; S/ABS
TOKICO
8-94224-694-0
02
1
1507-
103
NUT; S/ABS TO LWR LINK
M12
0-91111-512-0
02
1
1507-
168
BRACKET; S/ABS,FRT SUSP
8-97316-007-1
01
1
1507-
168
BRACKET; S/ABS,FRT SUSP
8-97316-015-1
01
1
1507-
171
BOLT; S/ABS BRKT
M10X30 FLANGE
0-28651-030-0
08
1
1507-
173
NUT; S/ABS
M10 FLANGE
0-91180-110-0
08
1
1507-
183
SHACKLE; FRT SUSP
8-98034-341-0
04
1
1507-
185
WASHER; LK,PIN
ID=16.5
8-98011-489-0
04
1
1507-
186
BUSHING; SHACKLE
8-97081-531-0
12
1
1507-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
8-97693-024-0
02
1
1507-
191
U-BOLT; FRT SPR
L=95
8-97304-073-1
02
1
1507-
191
U-BOLT; FRT SPR
L=105
8-97304-074-1
02
1
1507-
192
PIECE; DIST
8-94249-413-1
02
1
1507-
193
NUT; U BOLT
M14 FLANGE
8-97360-124-0
08
1
1507-
197
PIN; FRT SPR,FRT
8-94117-900-1
02
1
1507-
199
BOLT
M10X25 FLANGE
0-28651-025-0
02
1
1507-
201
NUT; PIN LK
KD PREPARATORY PACK<6HF> M16
0-91110-516-0
02
1
1507-
201
NUT; PIN LK
M16
0-91110-516-0
04
1
1507-
201
NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE
8-97360-125-0
02
1
1507-
533
WASHER; FRT SUSP
KD PREPARATORY PACK<6HF> ID=16.5
8-98011-489-0
02
1
1507-
