◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#162083) — 12 parça

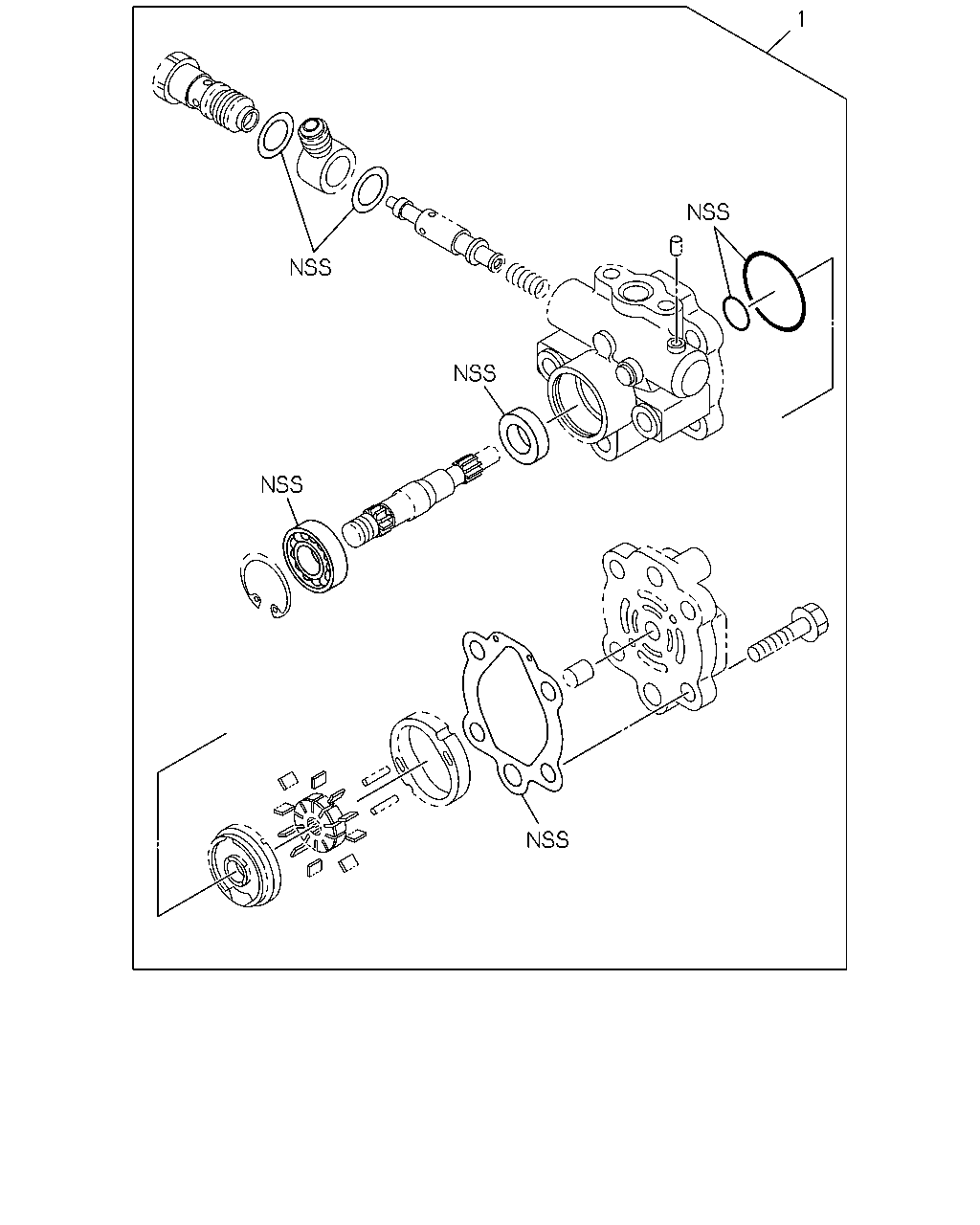

çizim 479666
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 8-98217-772-0 		8-98219-134-0 01 1 -

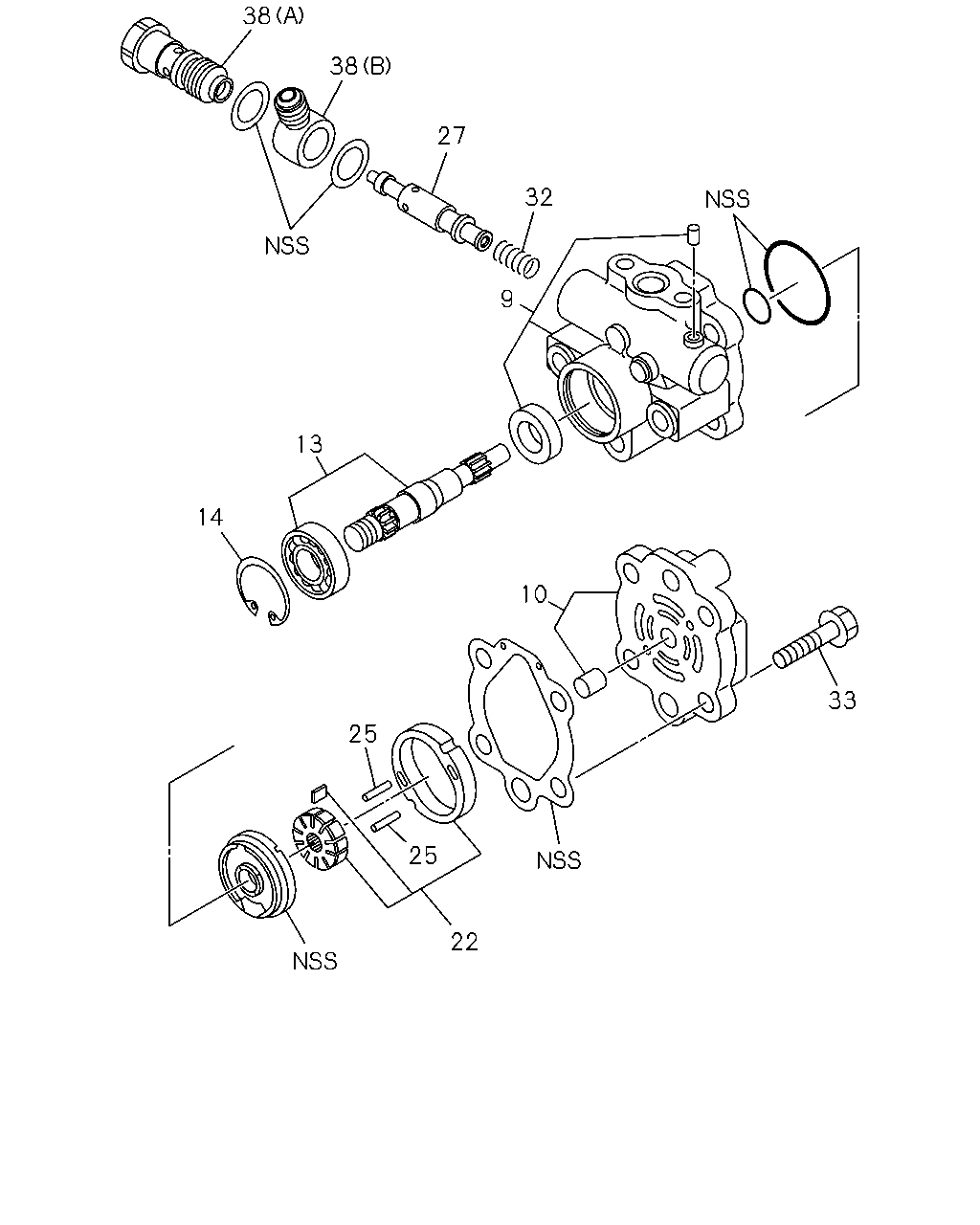

çizim 480326
38 38 27 32 9 13 14 10 25 25 22 33
BalonParca AdiParca NoAdetTipApplied Date
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-98217-772-0 		8-98219-140-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-98217-772-0 		8-98219-142-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 8-98217-772-0 		8-98219-139-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 8-98217-772-0 		8-97064-620-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98217-772-0 		8-97357-499-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 8-98217-772-0 		8-97081-859-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-98217-772-0 		8-98219-136-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 8-98217-772-0 		8-97064-987-0 01 1 -
33 BOLT; COVER
ASM PART: A = 8-98217-772-0 		8-97081-847-0 04 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 8-98217-772-0 		8-98219-135-0 01 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 8-98217-772-0 		8-98219-137-0 01 1 -
