Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-36 - POWER STEERING CONTROL; ENGINE SIDE
▶

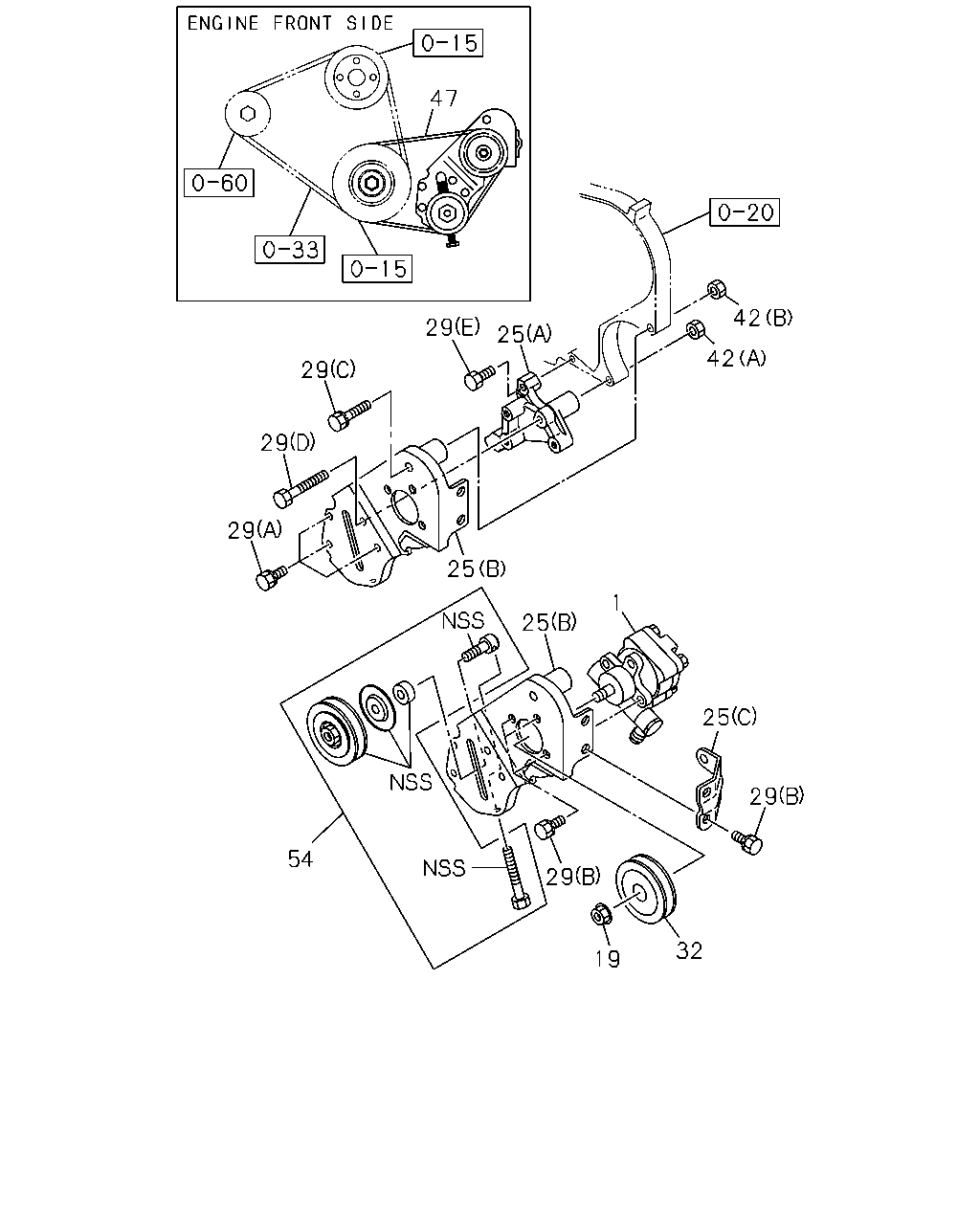

4-36 — POWER STEERING CONTROL; ENGINE SIDE
(#162081) — 16 parça
47
29
29
29
29
25
25
42
42
25
29
32
29
19
54
25
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
8-98217-772-0
01
1
1507-
19
NUT; PULLEY,OIL PUMP
M12
8-97360-126-0
01
1
1507-
25
BRACKET; P/S PUMP
(B)
8-97065-974-0
01
1
1507-
25
BRACKET; P/S PUMP
(C)
8-97107-872-0
01
1
1507-
25
BRACKET; P/S PUMP
(A)
8-98273-199-0
01
1
1507-
29
BOLT; BRKT,POWER STRG
(D) M8X100 FLANGE
0-28050-800-0
01
1
1507-
29
BOLT; BRKT,POWER STRG
(A) M8X16 FLANGE
0-28050-816-0
03
1
1507-
29
BOLT; BRKT,POWER STRG
(E) M8X60 FLANGE
0-28050-860-0
01
1
1507-
29
BOLT; BRKT,POWER STRG
(C) M10X100 FLANGE
0-28051-000-0
01
1
1507-
29
BOLT; BRKT,POWER STRG
(B) M10X20 FLANGE
0-28651-020-0
05
1
1507-
32
PULLEY; IDLER,P/S
8-98217-771-0
01
1
1507-
42
NUT; ADJ PLATE
(A) M8 FLANGE
0-91180-108-0
01
1
1507-
42
NUT; ADJ PLATE
(B) M10 FLANGE
0-91180-110-0
01
1
1507-
47
BELT; P/S PUMP
8-97085-131-0
01
1
1507-
47
BELT; P/S PUMP
BEST VALUE PARTS
5-87610-096-0
01
1
1507-
54
IDLER ASM; P/S OIL PUMP
8-94128-866-0
01
1
1507-
