◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#162079) — 12 parça

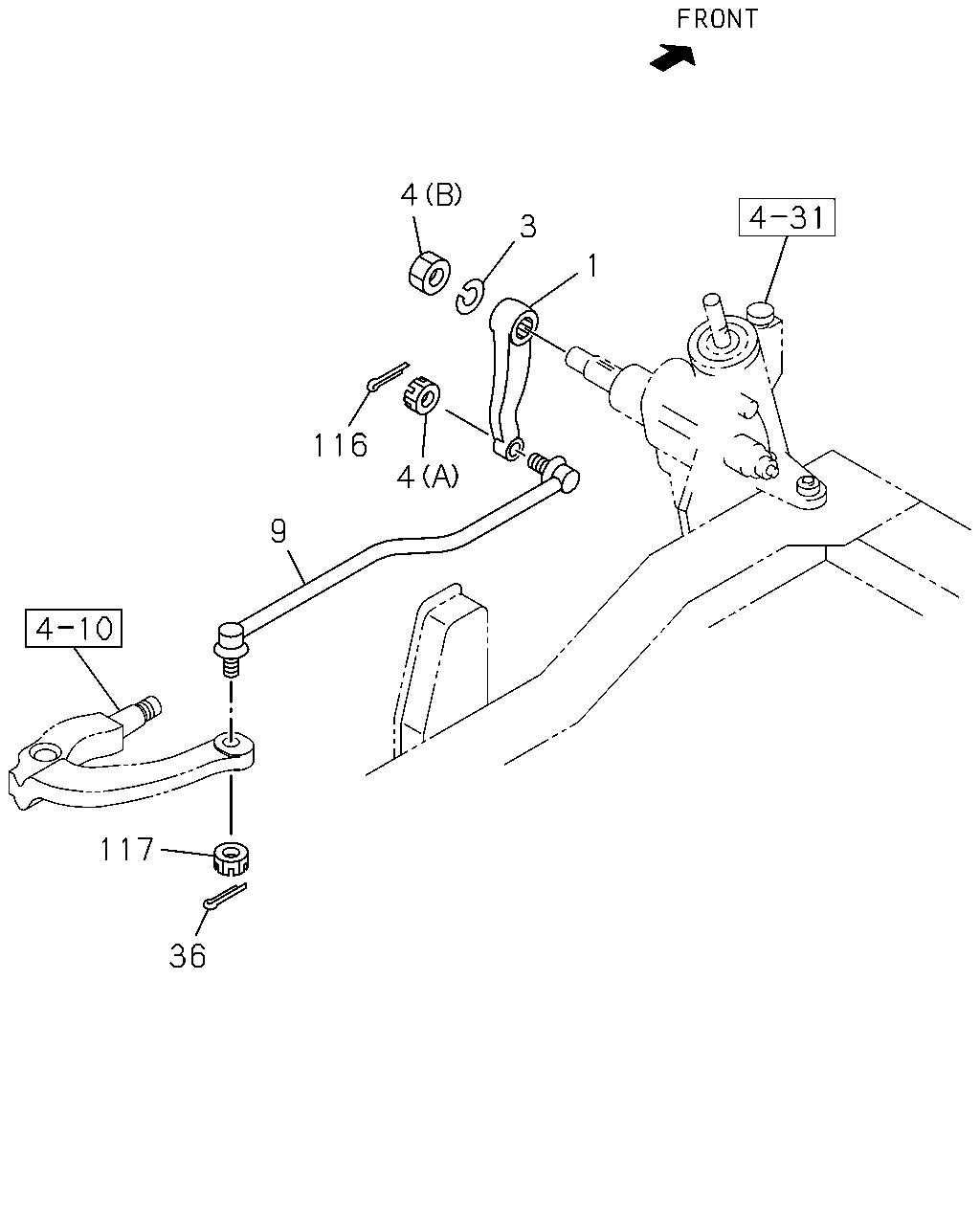

çizim 480296
4 1 3 4 116 9 117 36
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG
COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		5-87220-534-0 01 1 1507-
1 ARM; PITMAN,STRG
EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97109-289-1 01 1 1507-
3 WASHER; LK,PITMAN ARM
ID=22.5 		0-91510-522-0 01 1 1507-
4 NUT; PITMAN ARM
COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) 		5-87220-522-0 01 1 1507-
4 NUT; PITMAN ARM
(B) M22 		0-91111-522-0 01 1 1507-
4 NUT; PITMAN ARM
EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) M18 SLOTTED 		8-97245-632-0 01 1 1507-
9 LINK; DRAG
COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		5-87220-523-0 01 1 1507-
9 LINK; DRAG
EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97175-323-1 01 1 1507-
36 PIN; SPLIT,DRAG LINK
L=19 		8-98098-024-0 01 1 1507-
116 PIN; SPLIT,TRACK ROD,CENTER
COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		5-87220-524-0 01 1 1507-
116 PIN; SPLIT,TRACK ROD,CENTER
EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> L=19 		8-97349-766-0 01 1 1507-
117 NUT; DRAG LINK
M18 SLOTTED 		8-97245-632-0 01 1 1507-
