4-31 — STEERING COLUMN AND SHAFT (#162078) — 82 parça

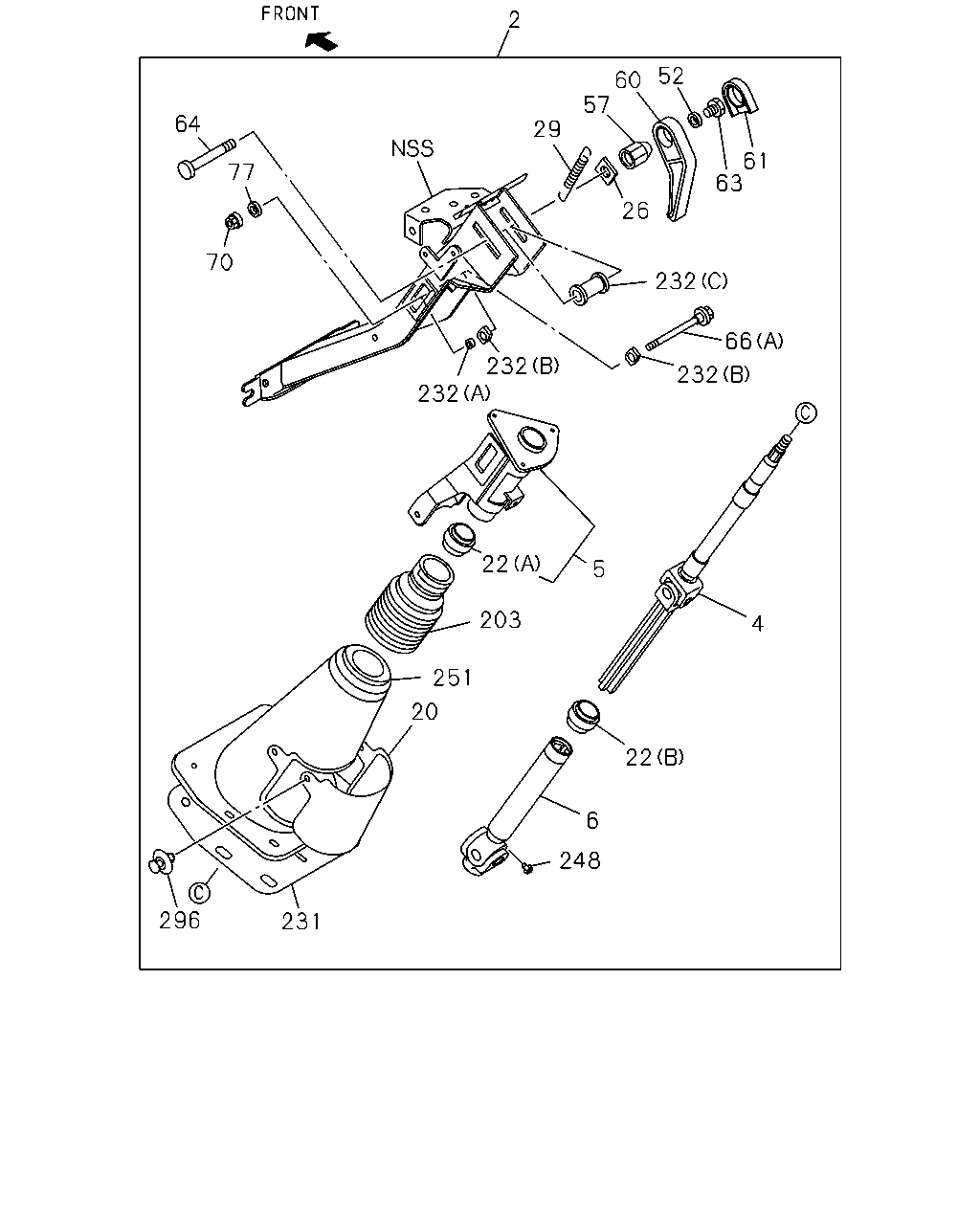

64 77 70 2 29 57 60 52 26 63 61 232 232 66 232 232 22 203 251 20 296 231 248 6 22 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	1507-
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-057-1	01	1	1507-
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97402-345-1	01	1	1507-
4	SHAFT; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97378-634-0	01	1	1507-
4	SHAFT; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33>	8-97378-634-0	01	1	1507-
4	SHAFT; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97378-638-0	01	1	1507-
5	COLUMN; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	1507-
5	COLUMN; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	1507-
5	COLUMN; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33>	8-97146-719-0	01	1	1507-
6	SHAFT; STRG LWR MANUAL TILT CAB<RWZ>	8-97378-632-0	01	1	1507-
20	COVER; STRG SHAFT TILT STEERING<N33> BLACK	8-97291-634-1	01	1	1507-
22	BUSHING; STRG COLUMN MANUAL TILT CAB<RWZ> (A)	8-97076-821-0	01	1	1507-
22	BUSHING; STRG COLUMN MANUAL TILT CAB<RWZ> (B)	8-97378-617-0	01	1	1507-
26	PLATE; ADJ TILT STEERING<N33> MANUAL TILT CAB<RWZ>	8-97222-989-0	01	1	1507-
29	SPRING; COLUMN TILT STEERING<N33> MANUAL TILT CAB<RWZ>	8-97076-811-0	01	1	1507-
52	WASHER; PL,ADJ LEVER TILT STEERING<N33> MANUAL TILT CAB<RWZ>	8-97076-813-0	01	1	1507-
57	NUT; ADJ BOLT TILT STEERING<N33> MANUAL TILT CAB<RWZ>	8-97222-988-0	01	1	1507-
60	LEVER; ADJ,STRG COLUMN TILT STEERING<N33> MANUAL TILT CAB<RWZ>	8-97076-830-0	01	1	1507-
61	CAP; ADJ LEVER,TILT STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ>	8-97076-814-0	01	1	1507-
63	BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ>	8-97222-986-0	01	1	1507-
64	BOLT; ADJ,PROTECTOR TILT STEERING<N33> MANUAL TILT CAB<RWZ>	8-97222-987-0	01	1	1507-
66	BOLT; STRG COLUMN TILT STEERING<N33> MANUAL TILT CAB<RWZ> (A)	8-97076-831-0	01	1	1507-
66	BOLT; STRG COLUMN MANUAL TILT CAB<RWZ> (B) M8X20 FLANGE	0-28650-820-0	03	1	1507-
66	BOLT; STRG COLUMN MANUAL TILT CAB<RWZ> (C) M5X18 TAPPING	0-72180-518-0	06	1	1507-
66	BOLT; STRG COLUMN MANUAL TILT CAB<RWZ> (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1507-
70	NUT; STRG COLUMN TILT STEERING<N33> MANUAL TILT CAB<RWZ>	8-97076-807-0	01	1	1507-
77	WASHER; PL,COLUMN TILT STEERING<N33> MANUAL TILT CAB<RWZ>	8-97076-804-0	01	1	1507-
203	BOOT; STRG COLUMN LWR MANUAL TILT CAB<RWZ>	8-97076-822-0	01	1	1507-
231	SEAL; RUBBER,STRG COLUMN MANUAL TILT CAB<RWZ>	8-97076-808-1	01	1	1507-
232	SPACER; STRG SHAFT TILT STEERING<N33> MANUAL TILT CAB<RWZ> (B)	8-97076-805-0	02	1	1507-
232	SPACER; STRG SHAFT TILT STEERING<N33> MANUAL TILT CAB<RWZ> (A)	8-97076-806-0	01	1	1507-
232	SPACER; STRG SHAFT TILT STEERING<N33> MANUAL TILT CAB<RWZ> (C)	8-97148-277-0	01	1	1507-
248	SCREW; YOKE MANUAL TILT CAB<RWZ>	8-97222-984-0	01	1	1507-
251	COVER; LWR TILT STEERING<N33> MANUAL TILT CAB<RWZ> BLACK	8-97159-168-2	01	1	1507-
251	COVER; LWR MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97398-450-1	01	1	1507-
296	CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	1507-
296	CLIP; COVER TILT STEERING<N33> MANUAL TILT CAB<RWZ> BLACK	8-97868-409-0	01	1	1507-

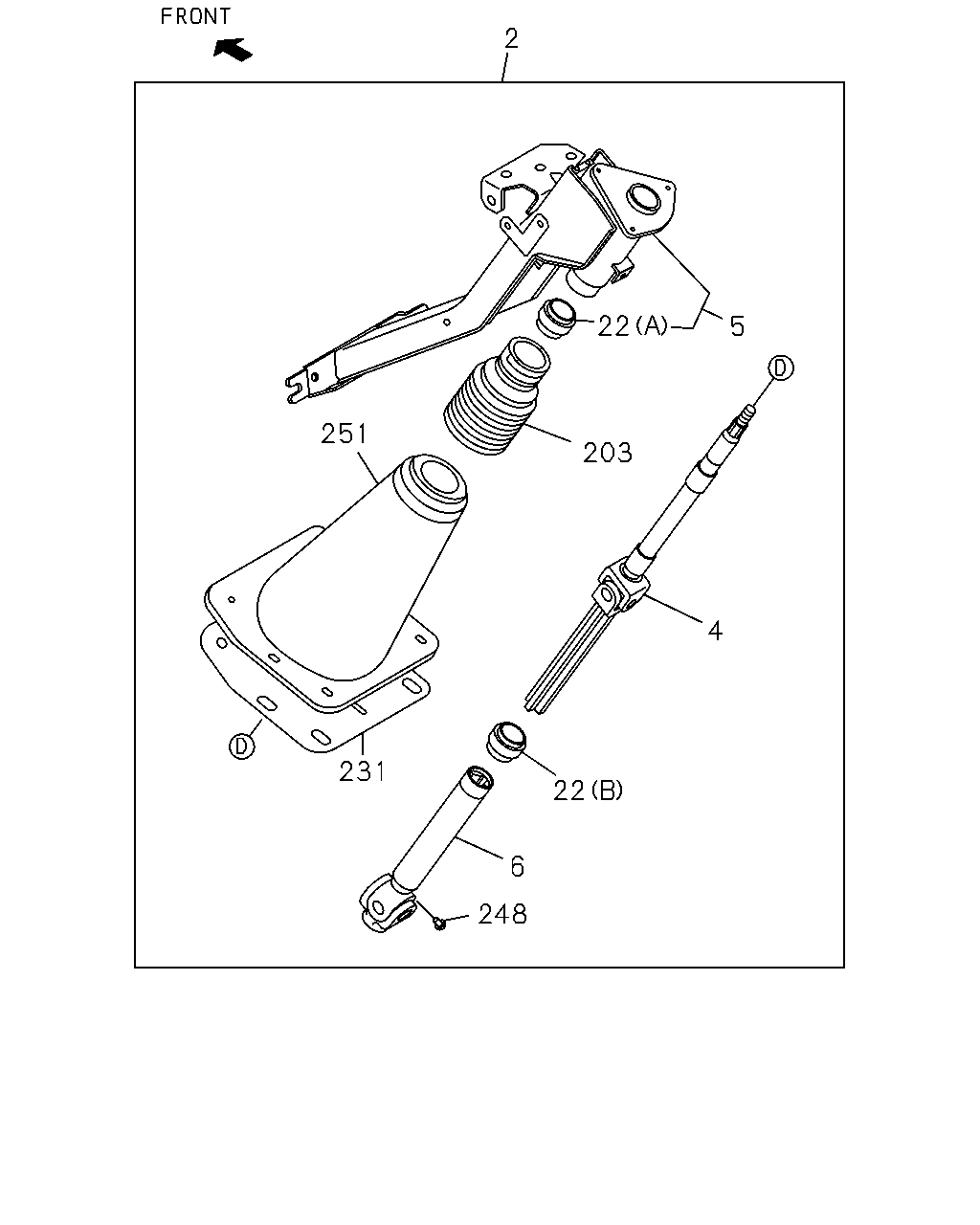

2 22 5 203 251 231 6 22 248 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	1507-
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-057-1	01	1	1507-
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97402-345-1	01	1	1507-
4	SHAFT; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97378-634-0	01	1	1507-
4	SHAFT; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33>	8-97378-634-0	01	1	1507-
4	SHAFT; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97378-638-0	01	1	1507-
5	COLUMN; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	1507-
5	COLUMN; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	1507-
5	COLUMN; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33>	8-97146-719-0	01	1	1507-
6	SHAFT; STRG LWR MANUAL TILT CAB<RWZ>	8-97378-632-0	01	1	1507-
22	BUSHING; STRG COLUMN MANUAL TILT CAB<RWZ> (A)	8-97076-821-0	01	1	1507-
22	BUSHING; STRG COLUMN MANUAL TILT CAB<RWZ> (B)	8-97378-617-0	01	1	1507-
203	BOOT; STRG COLUMN LWR MANUAL TILT CAB<RWZ>	8-97076-822-0	01	1	1507-
231	SEAL; RUBBER,STRG COLUMN MANUAL TILT CAB<RWZ>	8-97076-808-1	01	1	1507-
248	SCREW; YOKE MANUAL TILT CAB<RWZ>	8-97222-984-0	01	1	1507-
251	COVER; LWR TILT STEERING<N33> MANUAL TILT CAB<RWZ> BLACK	8-97159-168-2	01	1	1507-
251	COVER; LWR MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97398-450-1	01	1	1507-

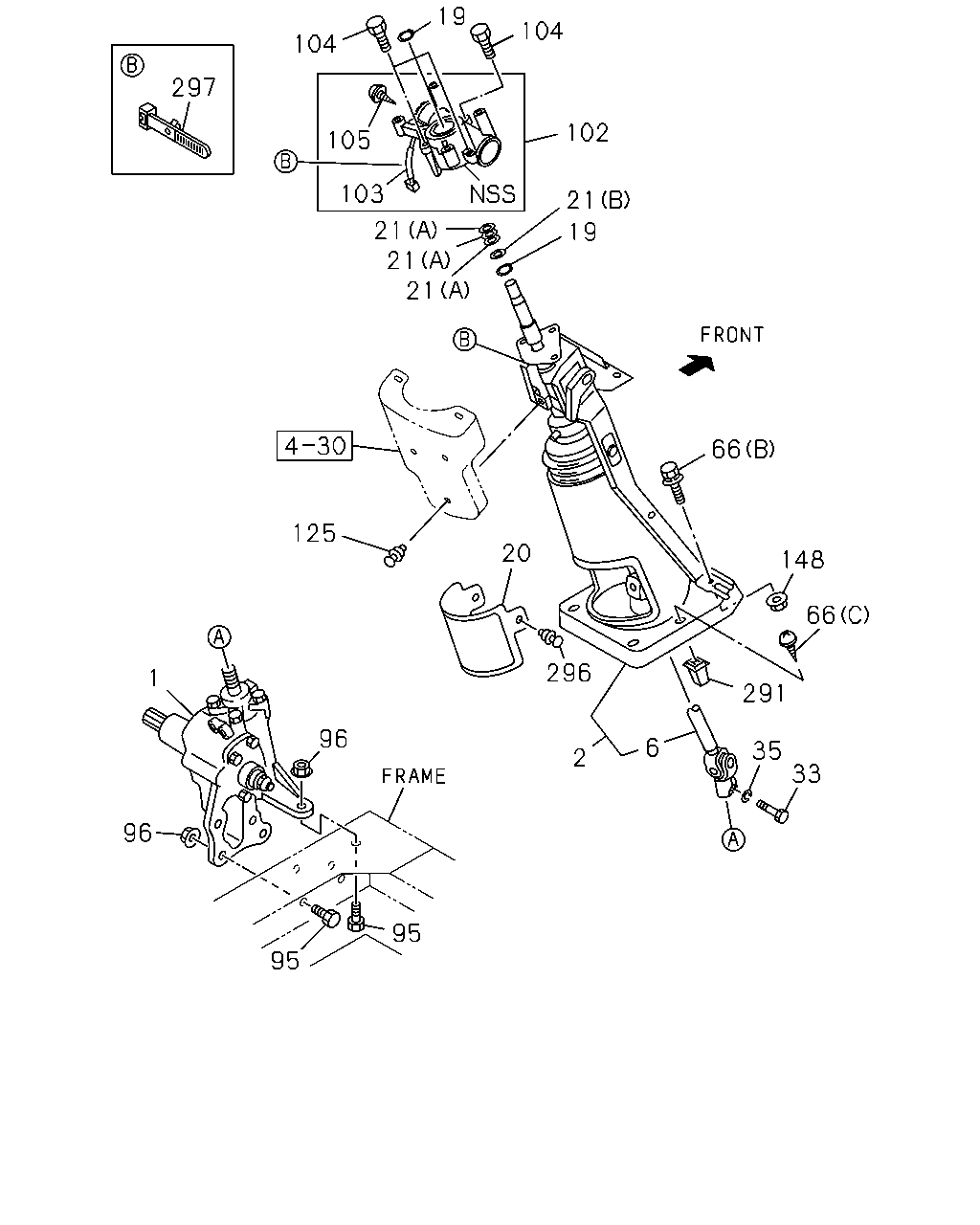

297 104 19 104 102 21 21 21 21 103 105 19 66 148 66 33 35 291 6 296 20 125 1 96 95 95 96 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98251-947-0	01	1	1507-
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	1507-
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-057-1	01	1	1507-
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97402-345-1	01	1	1507-
6	SHAFT; STRG LWR MANUAL TILT CAB<RWZ>	8-97378-632-0	01	1	1507-
19	RING; SNAP,STRG SHAFT MANUAL TILT CAB<RWZ> ID=17.5	9-09180-019-0	02	1	1507-
20	COVER; STRG SHAFT TILT STEERING<N33> BLACK	8-97291-634-1	01	1	1507-
21	WASHER; WAVE,STRG LOCK TO SHAFT MANUAL TILT CAB<RWZ> (B) ID=19	8-94146-919-0	01	1	1507-
21	WASHER; WAVE,STRG LOCK TO SHAFT MANUAL TILT CAB<RWZ> (A)	8-94174-865-0	03	1	1507-
33	BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	1507-
35	WASHER; LK,STRG SHAFT ID=8.2	0-91510-808-0	01	1	1507-
66	BOLT; STRG COLUMN TILT STEERING<N33> MANUAL TILT CAB<RWZ> (A)	8-97076-831-0	01	1	1507-
66	BOLT; STRG COLUMN MANUAL TILT CAB<RWZ> (B) M8X20 FLANGE	0-28650-820-0	03	1	1507-
66	BOLT; STRG COLUMN MANUAL TILT CAB<RWZ> (C) M5X18 TAPPING	0-72180-518-0	06	1	1507-
66	BOLT; STRG COLUMN MANUAL TILT CAB<RWZ> (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1507-
95	BOLT; STRG UNIT M12X45	8-97212-810-1	05	1	1507-
96	NUT; STRG UNIT M12 FLANGE	8-97359-618-0	05	1	1507-
102	LOCK ASM; STRG	8-97170-364-0	01	1	1507-
103	SWITCH; IGNITION	8-97088-268-0	01	1	1507-
104	BOLT; STRG LOCK TO COLUMN M6X21 TORQUE BOLT	8-94331-124-0	01	1	1507-
104	BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	02	1	1507-
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	1507-
125	CLIP; STRG SHAFT DARK GRAY	8-97582-246-0	01	1	1507-
148	NUT; COLUMN TO BRKT MANUAL TILT CAB<RWZ> M8 W/DISHED WASHER	8-97329-625-0	02	1	1507-
291	GROMMET; STRG SHAFT COVER MANUAL TILT CAB<RWZ> H=15	8-94463-268-1	06	1	1507-
296	CLIP; COVER TILT STEERING<N33> BLACK	8-97868-409-0	01	1	1507-
296	CLIP; COVER TILT STEERING<N33> MANUAL TILT CAB<RWZ> BLACK	8-97868-409-0	01	1	1507-
297	CLIP; BAND L=145	8-94257-575-1	03	1	1507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
