Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

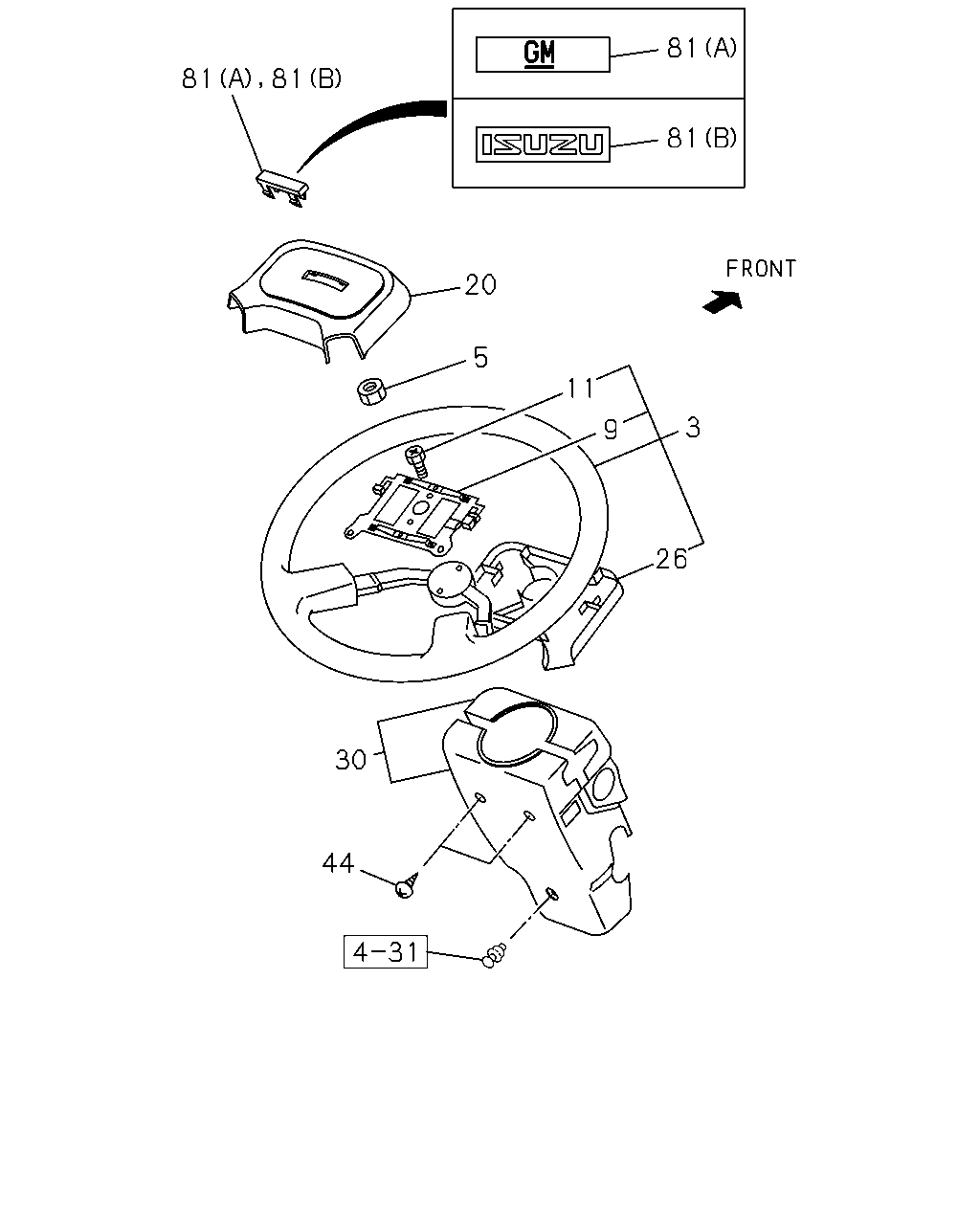

4-30 — STEERING WHEEL AND COWL
(#162077) — 11 parça
81
81
20
5
9
3
26
30
44
81
81
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
WHEEL; STRG
DARK GRAY
8-97400-081-2
01
1
1507-
5
NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1507-
9
PLATE; HORN CONTACT
8-97076-688-1
01
1
1507-
11
SCREW; PLATE TO BUTTON
8-97076-690-1
01
1
1507-
20
SHROUD; PAD,STRG WHEEL
DARK GRAY
8-97400-049-0
01
1
1507-
26
COVER; STRG WHEEL,LWR
DARK GRAY
8-97400-089-1
01
1
1507-
30
COWL; STEERING
TILT STEERING<N33> DARK GRAY
8-97582-824-8
01
1
1507-
30
COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY
8-97587-492-7
01
1
1507-
44
SCREW; STRG COWL
M5X12
0-38050-512-0
02
1
1507-
81
EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> (B) DARK GRAY
8-97400-060-0
01
1
1507-
81
EMBLEM; STRG WHEEL
EXC. ISUZU BRAND<7WL> (A) DARK GRAY
8-97400-048-0
01
1
1507-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
