Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

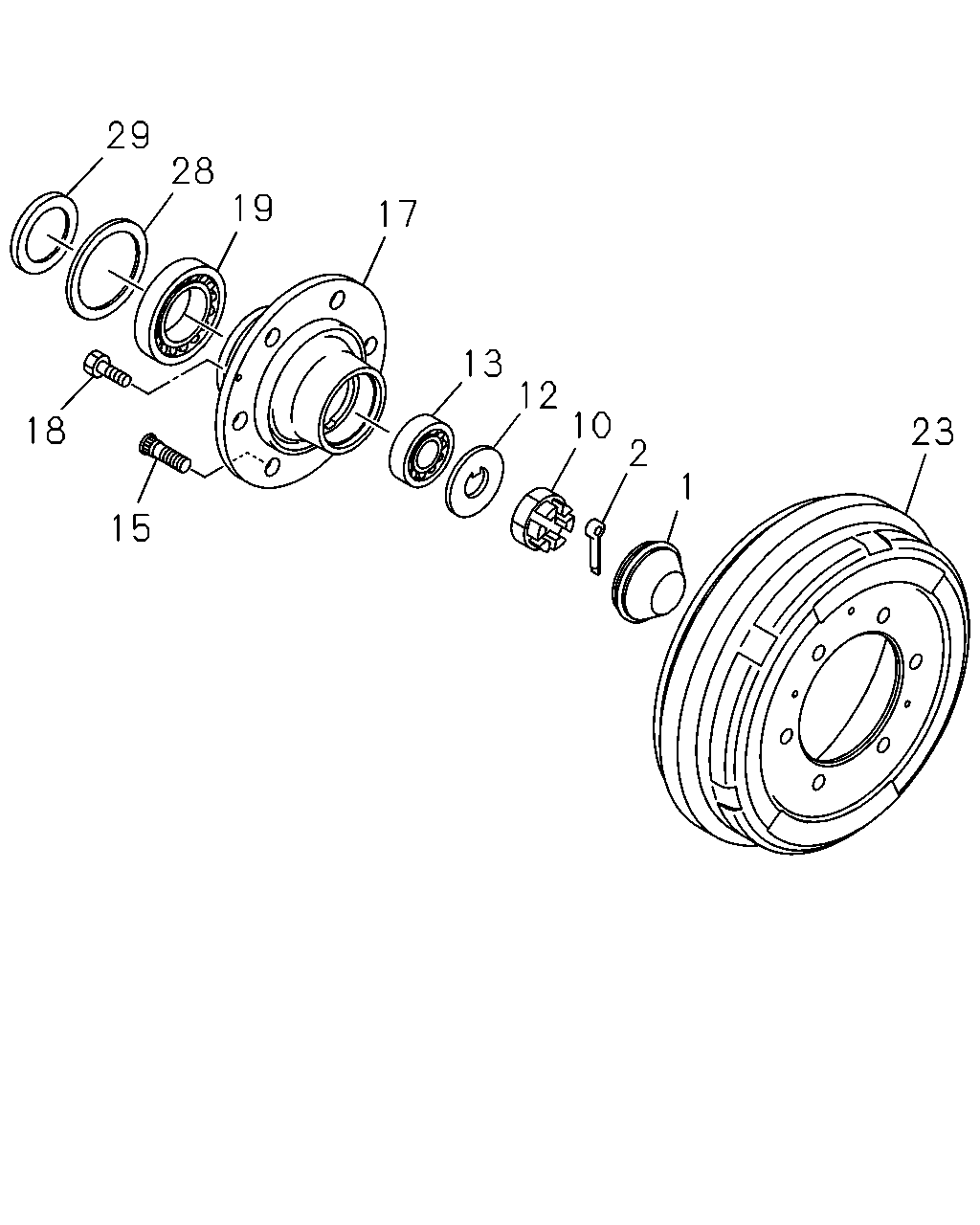

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#162074) — 16 parça
29
19
28
17
13
2
10
12
1
23
15
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
8-98276-604-0
02
1
1507-1511
1
CAP; HUB,FRT AXLE
8-98331-242-0
02
1
1512-
2
PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
0-81125-040-0
02
1
1507-
10
NUT; FRT HUB BRG
8-94247-357-1
02
1
1507-
12
WASHER; LK,FRT HUB BRG
8-98282-435-0
02
1
1507-
13
BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-172-0
02
1
1507-
13
BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS
5-87610-134-0
02
1
1507-
15
PIN; WHEEL,FRT AXLE
M14X50 RH THREAD
9-42331-605-5
06
1
1507-
15
PIN; WHEEL,FRT AXLE
M14X50 LH THREAD
9-42332-605-5
06
1
1507-
17
HUB; FRT AXLE
8-94420-597-1
02
1
1507-
18
BOLT; DRUM TO HUB
M6X18
0-20800-618-0
02
1
1507-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
8-98171-254-0
02
1
1507-
19
BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS
1-87610-134-0
02
1
1507-
23
DRUM; BRK,FRT
8-98242-348-0
02
1
1507-
28
SEAL; OIL,FRT HUB
8-94248-117-1
02
1
1507-
29
DISTANCE PIECE; HUB BRKT
NTN
8-97234-513-0
02
1
1507-
