Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#162071) — 37 parça
◀
[360A] OTHER PARTS (6 parça)

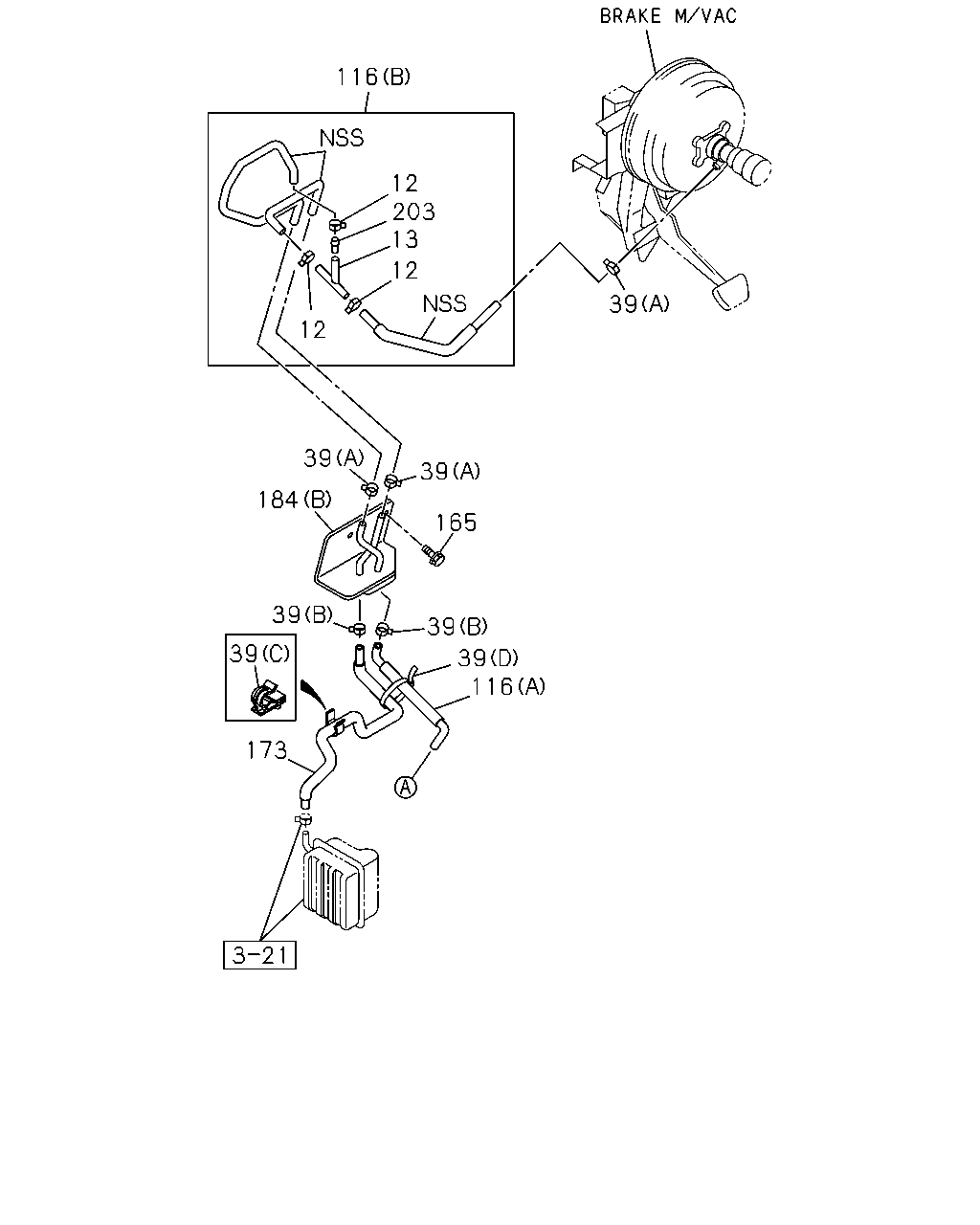

[360A] CAB SIDE (15 parça)

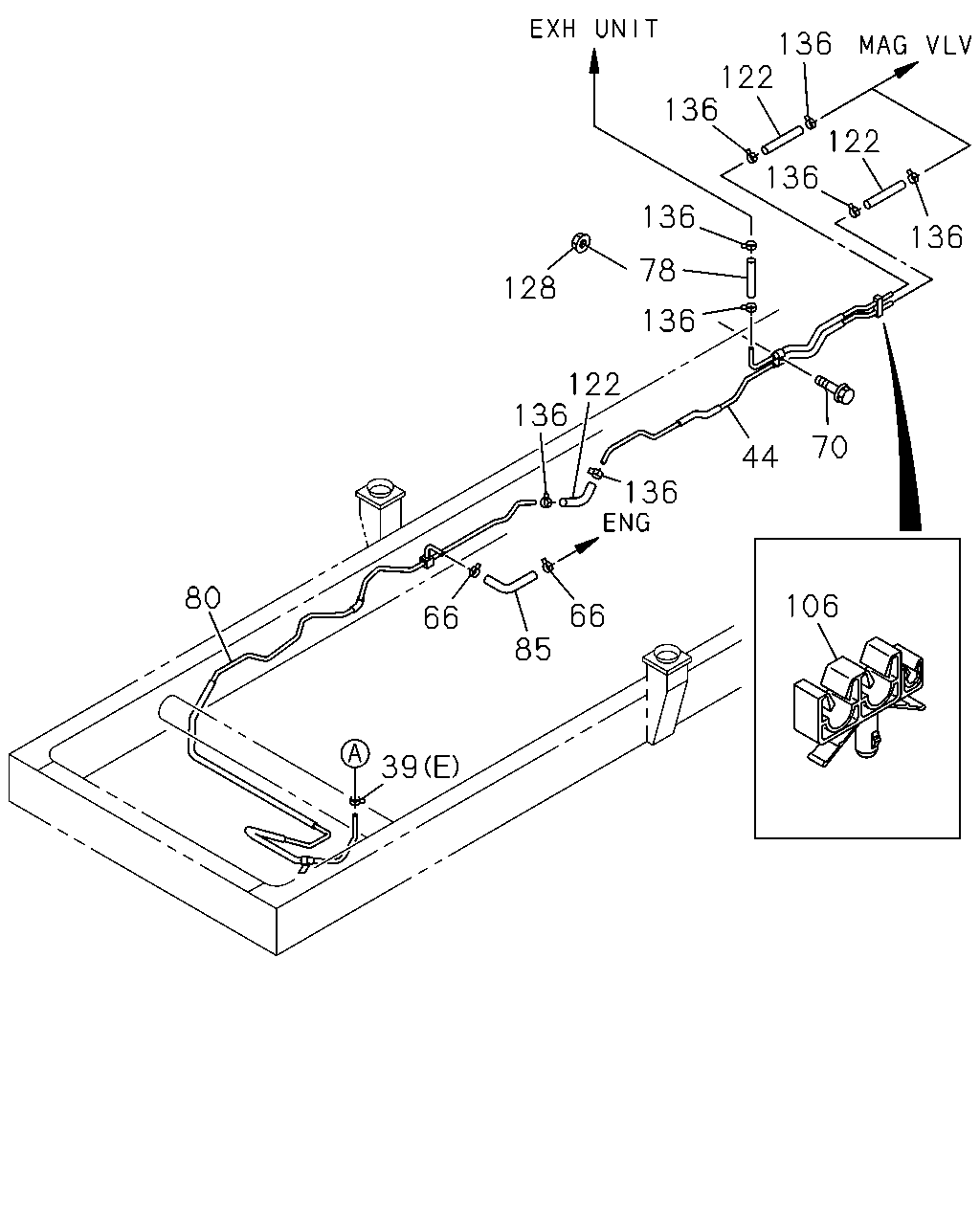

[360A] FRAME SIDE (16 parça)
▶
165
184
200
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
155
HOSE; VAC,AIR FILTER
EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000
0-08258-300-0
01
1
1507-
165
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
02
1
1507-
165
BOLT; BRKT
M5X16 TAPPING W/PL WASHER
0-74365-516-0
02
1
1507-
184
BRACKET; UNION FIX
(A)
8-97094-014-4
01
1
1507-
184
BRACKET; UNION FIX
(B)
8-97094-377-4
01
1
1507-
200
GROMMET; SCREW
H=15
8-94463-268-1
02
1
1507-
116
12
203
13
12
12
39
39
39
184
165
39
39
173
39
39
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
CLIP; HOSE
ID=14.5
8-94167-480-0
03
1
1507-
13
JOINT; HOSE,VAC
3WAY
8-94441-184-0
01
1
1507-
39
CLIP; HOSE,VAC
(D) L=219.5
1-09987-136-0
01
1
1507-
39
CLIP; HOSE,VAC
(B) ID=16
5-09707-023-2
02
1
1507-
39
CLIP; HOSE,VAC
(A) ID=16
8-94238-568-0
03
1
1507-
39
CLIP; HOSE,VAC
(C) ID=25.5
8-97077-492-0
01
1
1507-
39
CLIP; HOSE,VAC
(E) ID=16
8-98008-098-0
01
1
1507-
116
HOSE; VAC,M/VAC
(A)
8-97078-785-0
01
1
1507-
116
HOSE; VAC,M/VAC
(B)
8-97314-597-1
01
1
1507-
165
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
02
1
1507-
165
BOLT; BRKT
M5X16 TAPPING W/PL WASHER
0-74365-516-0
02
1
1507-
173
HOSE; VAC,VAC TANK SIDE
8-97129-872-0
01
1
1507-
184
BRACKET; UNION FIX
(A)
8-97094-014-4
01
1
1507-
184
BRACKET; UNION FIX
(B)
8-97094-377-4
01
1
1507-
203
VALVE; CHECK
8-94386-540-0
01
1
1507-
136
122
136
122
136
136
136
78
128
122
136
136
44
70
106
66
66
85
80
39
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
CLIP; HOSE,VAC
(D) L=219.5
1-09987-136-0
01
1
1507-
39
CLIP; HOSE,VAC
(B) ID=16
5-09707-023-2
02
1
1507-
39
CLIP; HOSE,VAC
(A) ID=16
8-94238-568-0
03
1
1507-
39
CLIP; HOSE,VAC
(C) ID=25.5
8-97077-492-0
01
1
1507-
39
CLIP; HOSE,VAC
(E) ID=16
8-98008-098-0
01
1
1507-
44
PIPE; VAC,MAG VLV
EXHAUST BRAKE<NF8>
8-97325-995-1
01
1
1507-
66
CLIP; VAC HOSE,M/VAC
ID=16
8-98008-098-0
02
1
1507-
70
BOLT; CLIP FIX
M6X20 FLANGE
0-28650-620-0
01
1
1507-
78
HOSE; VAC,PIPE TO PIPE
EXHAUST BRAKE<NF8> L=510 SERVICED BY L=3000
0-08258-300-0
01
1
1507-
80
PIPE; VAC,ENG SIDE
EXHAUST BRAKE<NF8>
8-97325-987-0
01
1
1507-
80
PIPE; VAC,ENG SIDE
EXC. EXHAUST BRAKE<NF8>
8-98183-901-0
01
1
1507-
85
HOSE; VAC,ENG SIDE
L=130
8-94438-246-0
01
1
1507-
106
CLIP; PIPE
EXHAUST BRAKE<NF8> ID=10X2 & 4.76
8-97170-259-0
02
1
1507-
122
HOSE; AIR,MAG VLV TO AIR PIPE
EXHAUST BRAKE<NF8> L=140 SERVICED BY L=3000
0-08258-300-0
03
1
1507-
128
NUT; CLIP
M6 FLANGE
0-91180-106-0
01
1
1507-
136
CLIP; VAC HOSE
EXHAUST BRAKE<NF8> ID=16
8-98008-098-0
08
1
1507-
