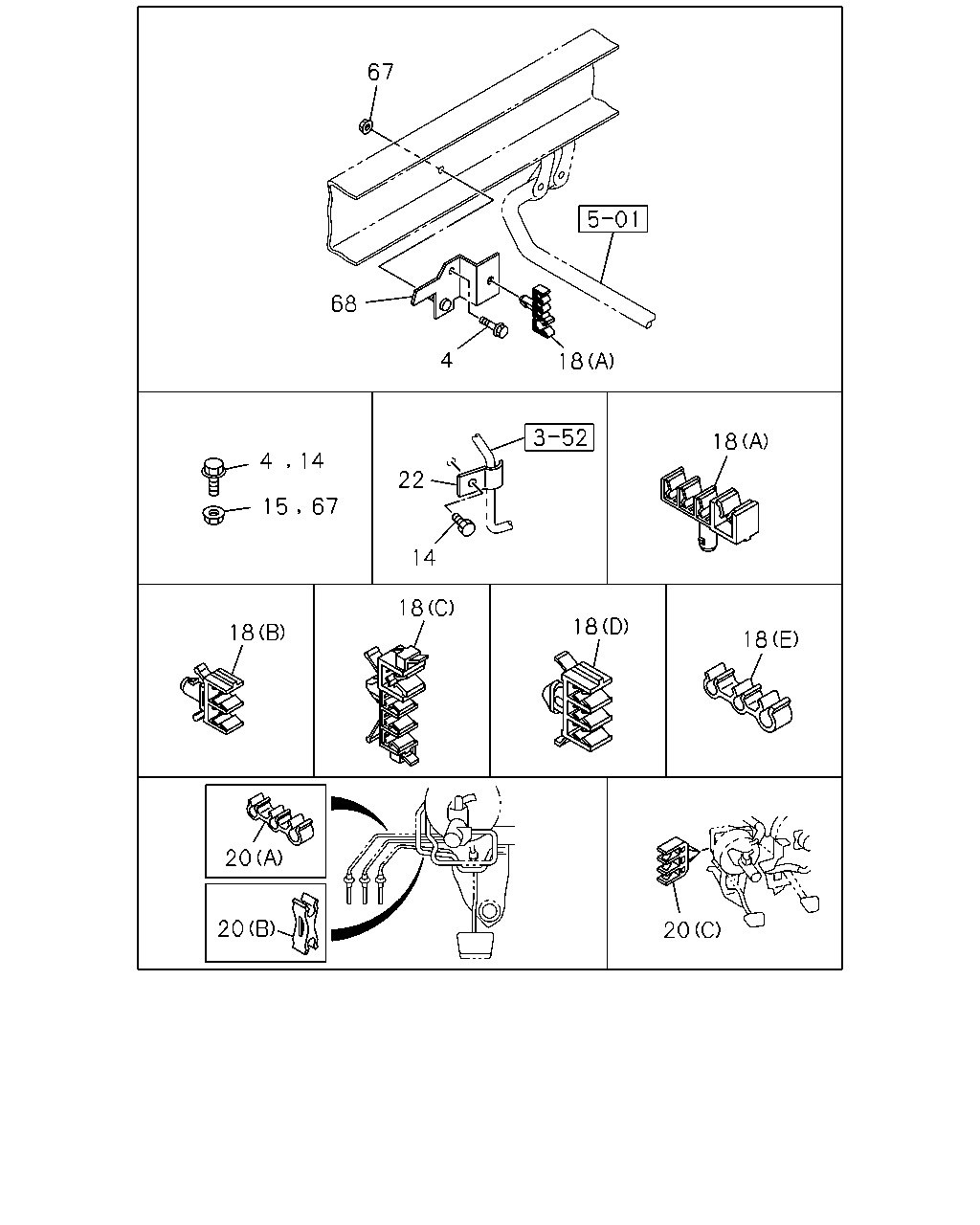

3-58 — FIXING PARTS; OIL PIPING
(#162070) — 16 parça
67
4
18
68
4
14
15
67
22
14
18
18
18
18
18
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOLT; BRKT
M6X25 FLANGE
0-28650-625-0
01
1
1507-
14
BOLT; CLIP,OIL PIPE
M8X20 FLANGE
0-28650-820-0
02
1
1507-
15
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
01
1
1507-
18
CLIP; BRK PIPE
(E) ID=6.4 & 4.8X2
8-94146-043-0
02
1
1507-
18
CLIP; BRK PIPE
(B) ID=4.8X2
8-94316-410-0
02
1
1507-
18
CLIP; BRK PIPE
(A) ID=10 & 4.76X3
8-97168-819-0
02
1
1507-
18
CLIP; BRK PIPE
(C) ID=10 & 4.76X3
8-97326-158-1
02
1
1507-
18
CLIP; BRK PIPE
(C) ID=10 & 4.76X3
8-97326-158-1
05
1
1507-
18
CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 H=29
8-94249-689-2
02
1
1507-
18
CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 H=29
8-94249-689-2
02
1
1507-
20
CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2
8-94146-043-0
03
1
1507-
20
CLIP; BRK PIPE
(B) ID=4.6X2
8-94241-454-0
01
1
1507-
20
CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2
8-94250-923-2
01
1
1507-
22
CLIP; PIPE TO FRAME
B=18 L=20
1-09700-372-0
02
1
1507-
67
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1507-
68
BRACKET; CLIP
8-97349-917-1
01
1
1507-
