Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

6-75 — MAT AND CARPET (#16207) — 117 parça

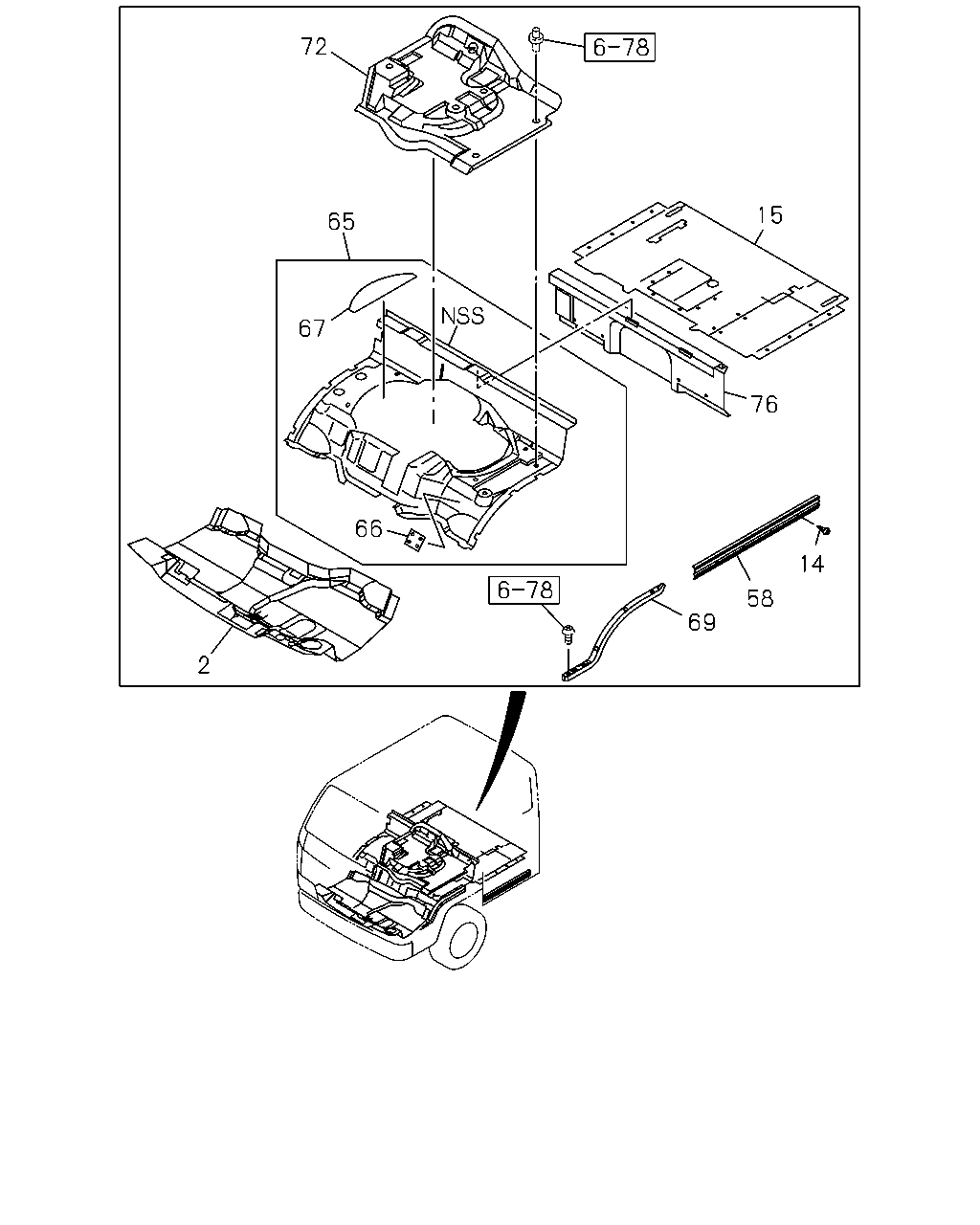

72 15 65 67 76 66 14 58 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97859-691-4	01	1	9811-0203	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-644-1	01	1	0204-	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97867-120-4	01	1	9811-0203	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-642-1	01	1	0204-	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97868-591-0	01	1	9811-0203	●		●	●		●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-676-1	01	1	0204-	●		●	●		●
2	16.800 MAT; FLOOR AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-590-0	01	1	9811-0203	●		●	●		●
2	16.800 MAT; FLOOR AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-674-1	01	1	0204-	●		●	●		●
14	16.870 SCREW; PLATE 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	9811-		●			●
15	16.800 MAT; FLOOR REAR DARK GRAY	8-97868-592-0	01	1	9811-0203		●			●
15	16.800 MAT; FLOOR REAR DARK GRAY	8-97996-668-1	01	1	0204-		●			●
58	08.153 PLATE; GUARD,RR FLOOR MAT	8-97081-344-3	02	1	9811-		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY	8-97890-572-1	01	1	9811-0203	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-738-0	01	1	0204-	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-637-1	01	1	9811-0105	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-637-1	01	1	9811-0105			●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97868-637-1	01	1	0106-0203	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-637-1	01	1	0106-0203	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-637-1	01	1	0106-0203						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97996-696-0	01	1	0204-	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-696-0	01	1	0204-	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-696-0	01	1	0204-						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97868-636-1	01	1	9811-0105	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97868-636-1	01	1	0106-0203	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97868-636-1	01	1	0106-0203						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-694-0	01	1	0204-	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-694-0	01	1	0204-						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97859-703-8	01	1	9811-9906		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97898-057-1	01	1	9907-0203		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-775-0	01	1	0204-		●			●
66	16.549 HOOK; COVER EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97859-705-0	02	1	9811-0105	●					●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9811-0105		●			●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97859-705-0	02	1	9811-0105			●	●
66	16.549 HOOK; COVER EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-705-0	02	1	9811-0105			●	●
66	16.549 HOOK; COVER HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-705-0	02	1	9811-0105			●	●
66	16.549 HOOK; COVER EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97859-705-0	02	1	0106-0203	●		●	●		●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	0106-0203		●			●
66	16.549 HOOK; COVER EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97997-582-0	02	1	0204-	●		●	●		●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0204-		●			●
67	16.549 LID; COVER EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-704-0	01	1	9811-0105	●		●	●		●
67	16.549 LID; COVER DARK GRAY	8-97859-704-0	01	1	9811-0105		●			●
67	16.549 LID; COVER HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-704-0	01	1	9811-0105			●	●
67	16.549 LID; COVER HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97859-704-0	01	1	0106-0203	●		●	●
67	16.549 LID; COVER EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-704-0	01	1	0106-0203	●		●	●
67	16.549 LID; COVER DARK GRAY	8-97859-704-0	01	1	0106-0203		●			●
67	16.549 LID; COVER EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-704-0	01	1	0106-0203						●
67	16.549 LID; COVER HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97997-586-0	01	1	0204-	●		●	●
67	16.549 LID; COVER EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-586-0	01	1	0204-	●		●	●
67	16.549 LID; COVER DARK GRAY	8-97997-586-0	01	1	0204-		●			●
67	16.549 LID; COVER EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-586-0	01	1	0204-						●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9811-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9811-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97890-373-1	01	1	9811-0203	●		●	●		●
72	16.800 MAT; SILENCER,ENG COVER AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-745-0	01	1	0204-	●		●	●		●
72	16.800 MAT; SILENCER,ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97859-707-0	01	1	9811-0203	●		●	●		●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97859-707-0	01	1	9811-0203		●			●
72	16.800 MAT; SILENCER,ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-720-0	01	1	0204-	●		●	●		●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-720-0	01	1	0204-		●			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97867-155-7	01	1	9811-9911		●			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97898-298-0	01	1	9912-0203		●			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97996-782-0	01	1	0204-0211		●			●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97985-065-0	01	1	0212-		●			●

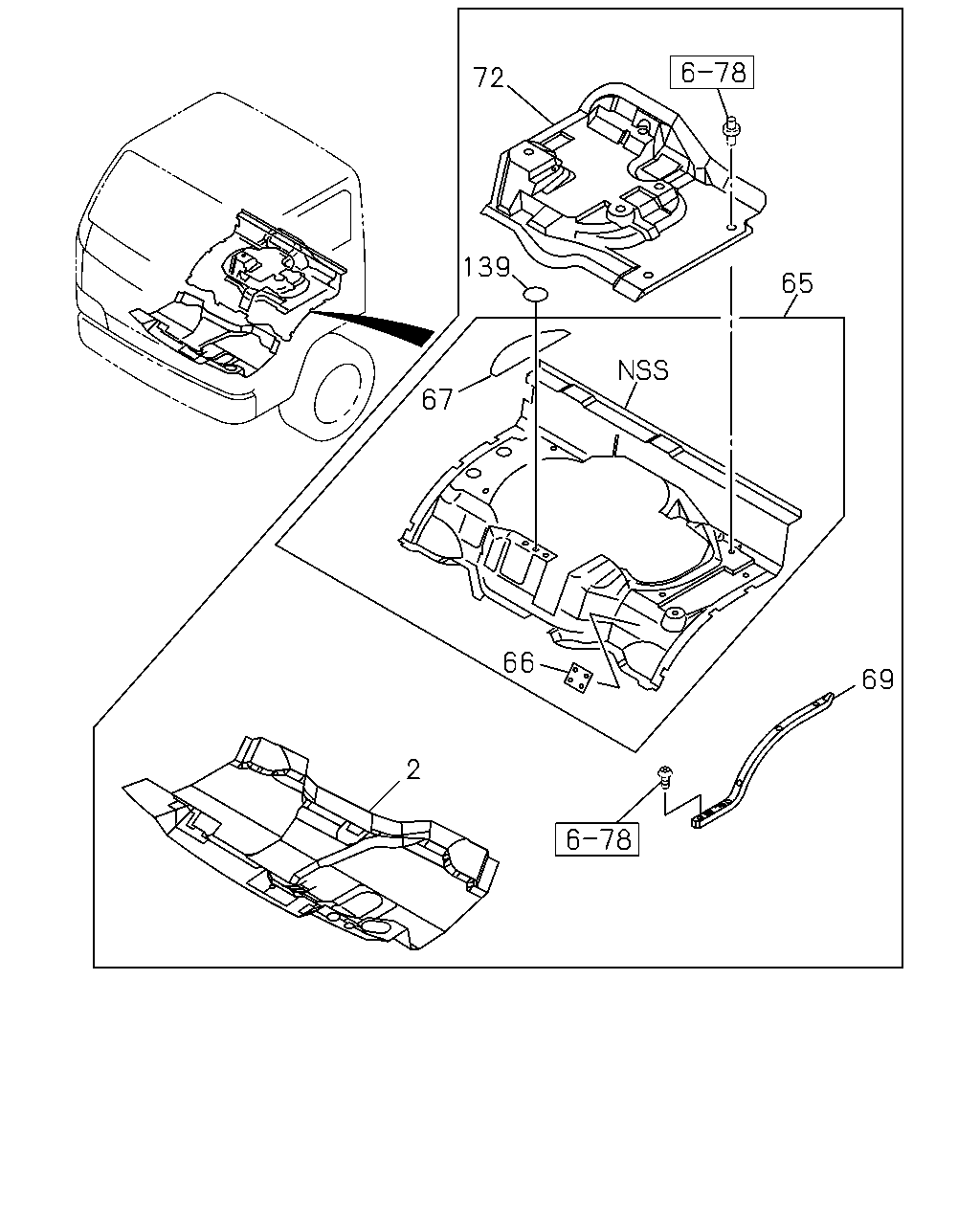

72 139 65 67 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97859-691-4	01	1	9811-0203	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-644-1	01	1	0204-	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97867-120-4	01	1	9811-0203	●	●	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-642-1	01	1	0204-	●	●	●	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97868-591-0	01	1	9811-0203	●		●	●		●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-676-1	01	1	0204-	●		●	●		●
2	16.800 MAT; FLOOR AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-590-0	01	1	9811-0203	●		●	●		●
2	16.800 MAT; FLOOR AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-674-1	01	1	0204-	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY	8-97890-572-1	01	1	9811-0203	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR AUSTRALIA EQUIPMENT(RR3) MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-738-0	01	1	0204-	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-637-1	01	1	9811-0105	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-637-1	01	1	9811-0105			●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97868-637-1	01	1	0106-0203	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-637-1	01	1	0106-0203	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97868-637-1	01	1	0106-0203						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97996-696-0	01	1	0204-	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-696-0	01	1	0204-	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-696-0	01	1	0204-						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97868-636-1	01	1	9811-0105	●		●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97868-636-1	01	1	0106-0203	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97868-636-1	01	1	0106-0203						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-694-0	01	1	0204-	●		●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-694-0	01	1	0204-						●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97859-703-8	01	1	9811-9906		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97898-057-1	01	1	9907-0203		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-775-0	01	1	0204-		●			●
66	16.549 HOOK; COVER EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97859-705-0	02	1	9811-0105	●					●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9811-0105		●			●
66	16.549 HOOK; COVER MANUAL TILT CAB<RWZ> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97859-705-0	02	1	9811-0105			●	●
66	16.549 HOOK; COVER EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-705-0	02	1	9811-0105			●	●
66	16.549 HOOK; COVER HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-705-0	02	1	9811-0105			●	●
66	16.549 HOOK; COVER EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97859-705-0	02	1	0106-0203	●		●	●		●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	0106-0203		●			●
66	16.549 HOOK; COVER EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97997-582-0	02	1	0204-	●		●	●		●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0204-		●			●
67	16.549 LID; COVER EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-704-0	01	1	9811-0105	●		●	●		●
67	16.549 LID; COVER DARK GRAY	8-97859-704-0	01	1	9811-0105		●			●
67	16.549 LID; COVER HONG KONG EQUIPMENT(PQ1) EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-704-0	01	1	9811-0105			●	●
67	16.549 LID; COVER HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97859-704-0	01	1	0106-0203	●		●	●
67	16.549 LID; COVER EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-704-0	01	1	0106-0203	●		●	●
67	16.549 LID; COVER DARK GRAY	8-97859-704-0	01	1	0106-0203		●			●
67	16.549 LID; COVER EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97859-704-0	01	1	0106-0203						●
67	16.549 LID; COVER HONG KONG EQUIPMENT(PQ1) DARK GRAY	8-97997-586-0	01	1	0204-	●		●	●
67	16.549 LID; COVER EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-586-0	01	1	0204-	●		●	●
67	16.549 LID; COVER DARK GRAY	8-97997-586-0	01	1	0204-		●			●
67	16.549 LID; COVER EXC. AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-586-0	01	1	0204-						●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9811-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9811-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97890-373-1	01	1	9811-0203	●		●	●		●
72	16.800 MAT; SILENCER,ENG COVER AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-745-0	01	1	0204-	●		●	●		●
72	16.800 MAT; SILENCER,ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97859-707-0	01	1	9811-0203	●		●	●		●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97859-707-0	01	1	9811-0203		●			●
72	16.800 MAT; SILENCER,ENG COVER EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97996-720-0	01	1	0204-	●		●	●		●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-720-0	01	1	0204-		●			●
139	16.800 SEAL; FLOOR AUSTRALIA EQUIPMENT(RR3) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9811-	●		●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
