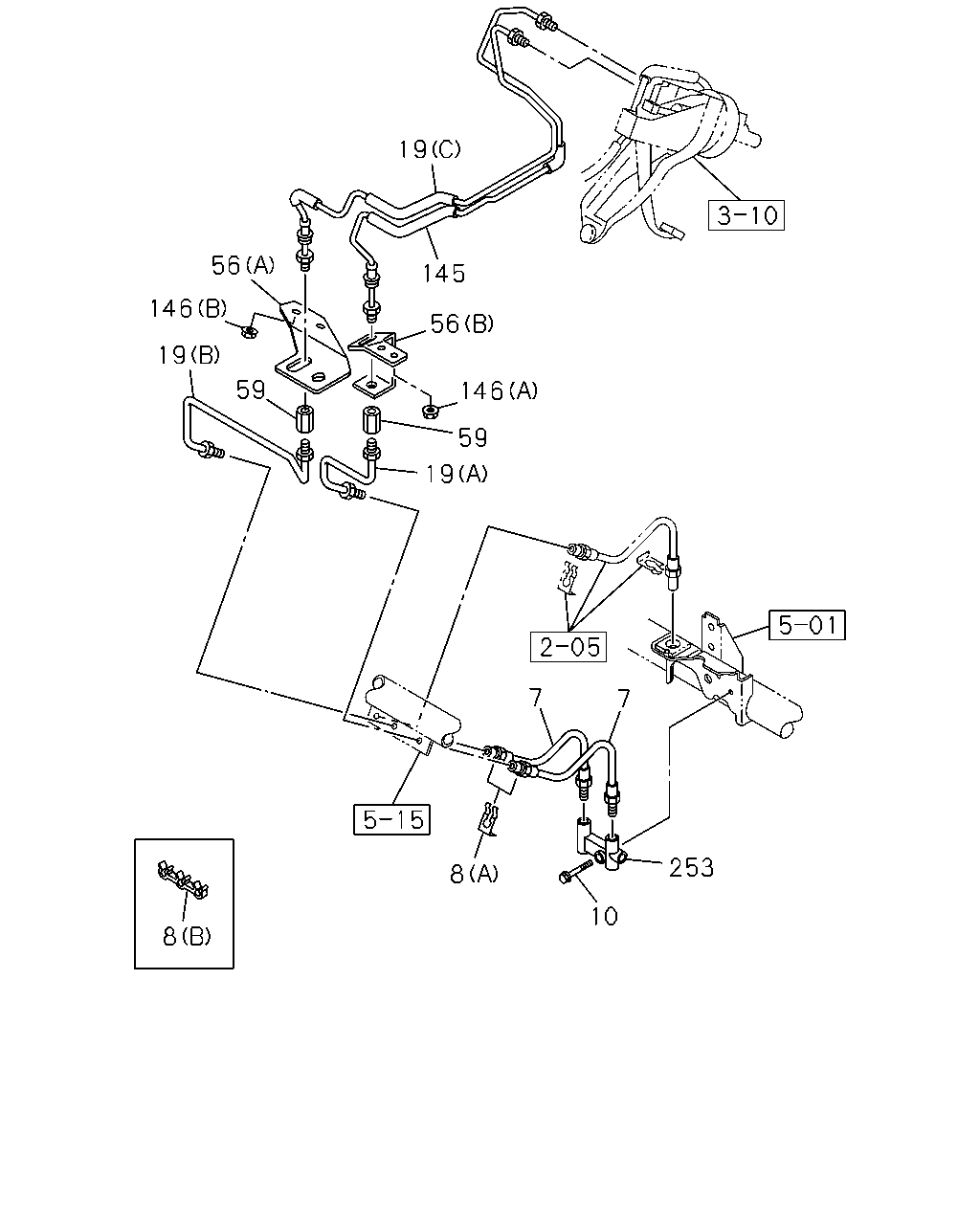

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#162067) — 14 parça
56
19
145
146
59
19
146
19
59
8
10
253
8
56
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97171-031-0
02
1
1507-
8
CLIP; FLEX HOSE,CABLE SIDE
(B)
8-97076-471-0
01
1
1507-
8
CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
1507-
10
BOLT; JOINT
M6X40 FLANGE
0-28650-640-0
01
1
1507-
19
PIPE; BRK,M/CYL TO UNION
(A) REAR
8-97070-296-2
01
1
1507-
19
PIPE; BRK,M/CYL TO UNION
(B) FRONT
5-47411-763-0
01
1
1507-
19
PIPE; BRK,M/CYL TO UNION
(C)
8-97314-591-0
01
1
1507-
56
BRACKET; UNION,BRK
(A)
8-97102-365-0
01
1
1507-
56
BRACKET; UNION,BRK
(B)
8-97102-366-2
01
1
1507-
59
UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
1507-
145
PIPE; BRK,METERING VLV TO UNION
8-97314-584-0
01
1
1507-
146
NUT; BRKT
(A) M6 FLANGE
0-91180-106-0
02
1
1507-
146
NUT; BRKT
(B) M8 FLANGE
0-91180-108-0
02
1
1507-
253
JOINT
5-47456-009-1
01
1
1507-
