◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#162065) — 14 parça

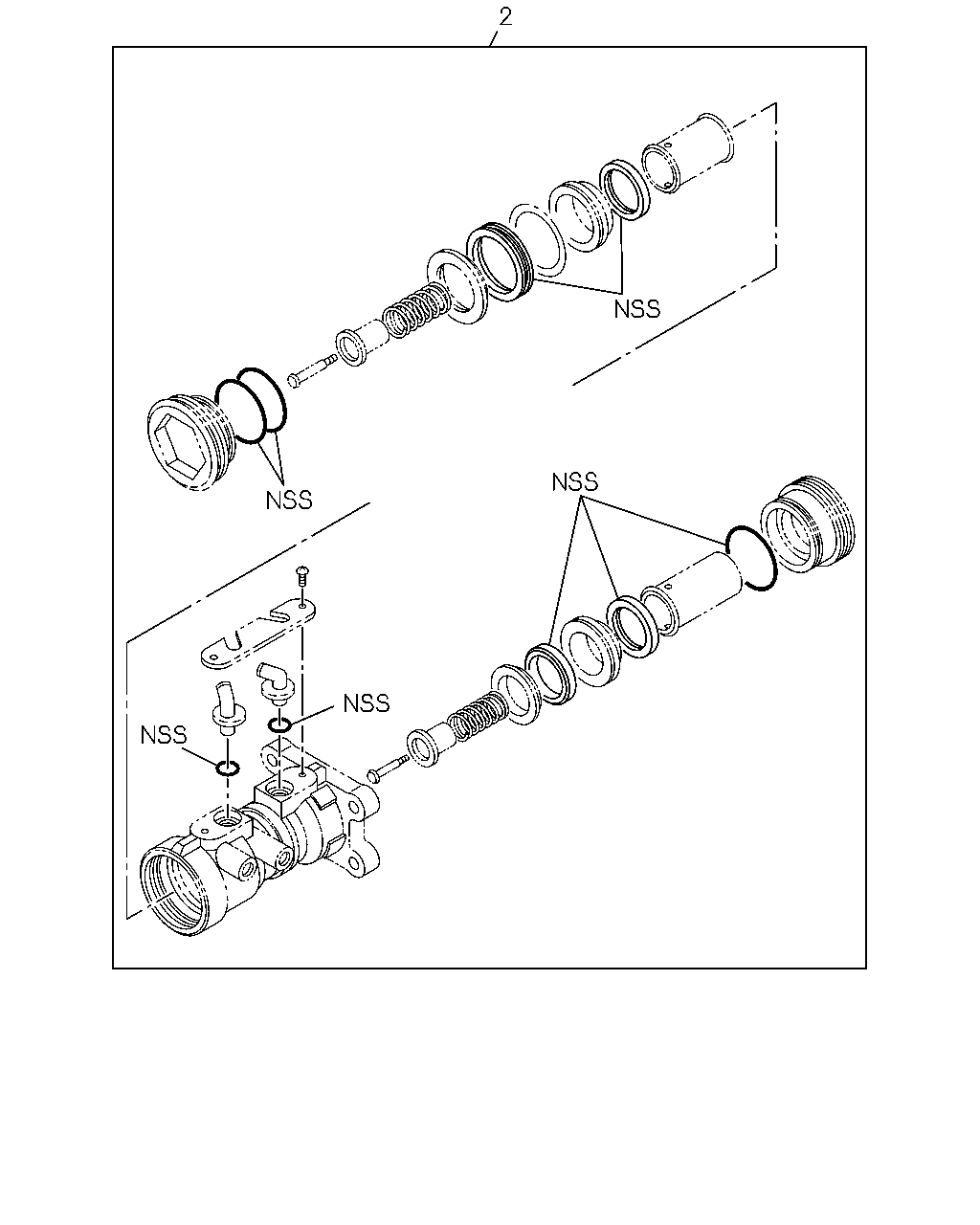

çizim 479719
2
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1507-

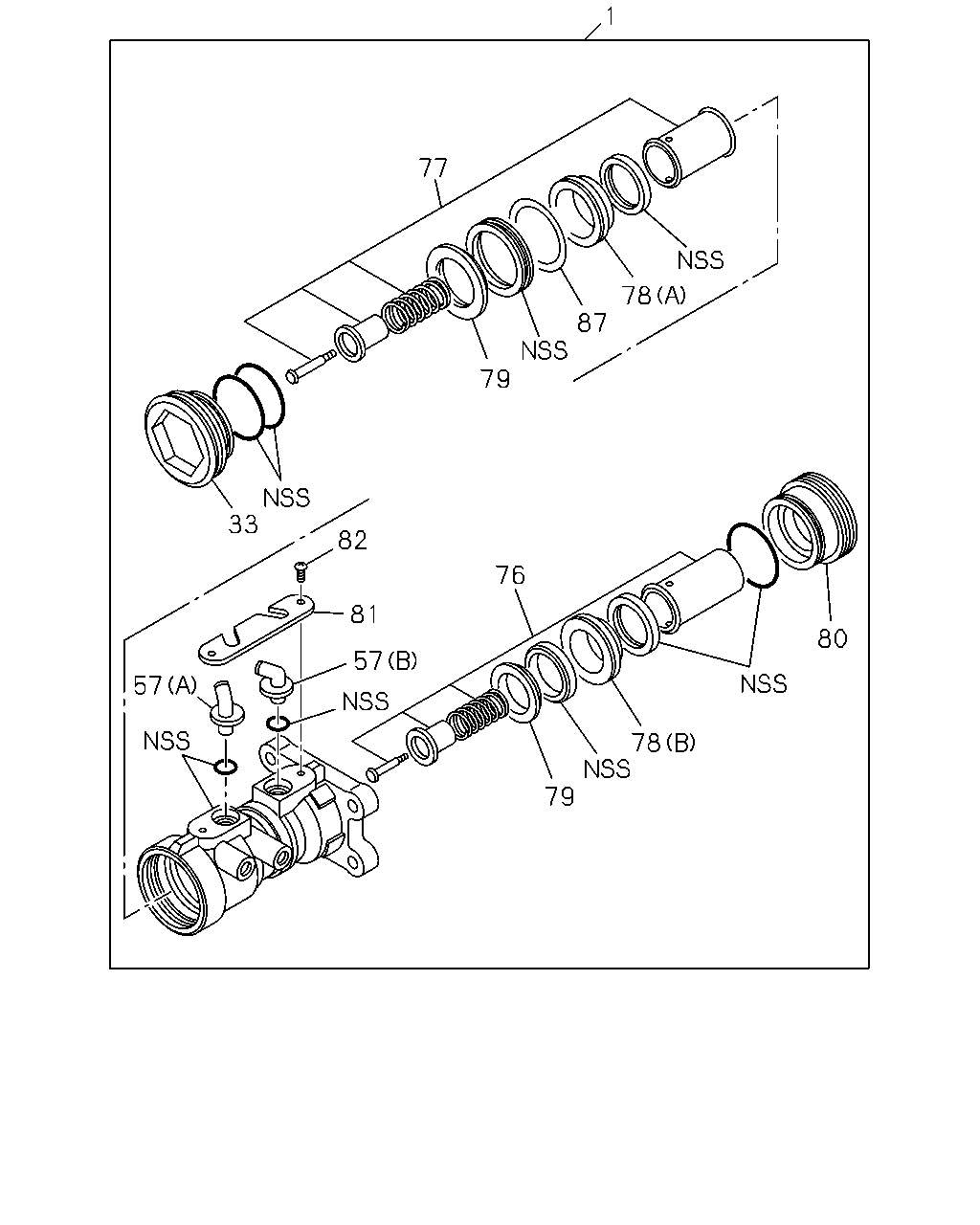

çizim 479840
77 1 78 87 79 76 80 78 79 81 57 57 82 33
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; BRK MASTER 8-97315-164-0 01 1 1507-
33 PLUG; END,M/CYL 8-97186-696-0 01 1 1507-
57 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1507-
57 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1507-
76 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1507-
77 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1507-
78 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1507-
78 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1507-
79 SUPPORTER; CUP 8-97130-462-0 02 1 1507-
80 COVER; MASTER CYL 8-97130-448-0 01 1 1507-
81 HOLDER; NIPPLE 8-97315-168-0 01 1 1507-
82 SCREW; HOLDER 8-97130-446-0 02 1 1507-
87 SPACER; CUP 8-97130-458-0 01 1 1507-
