Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

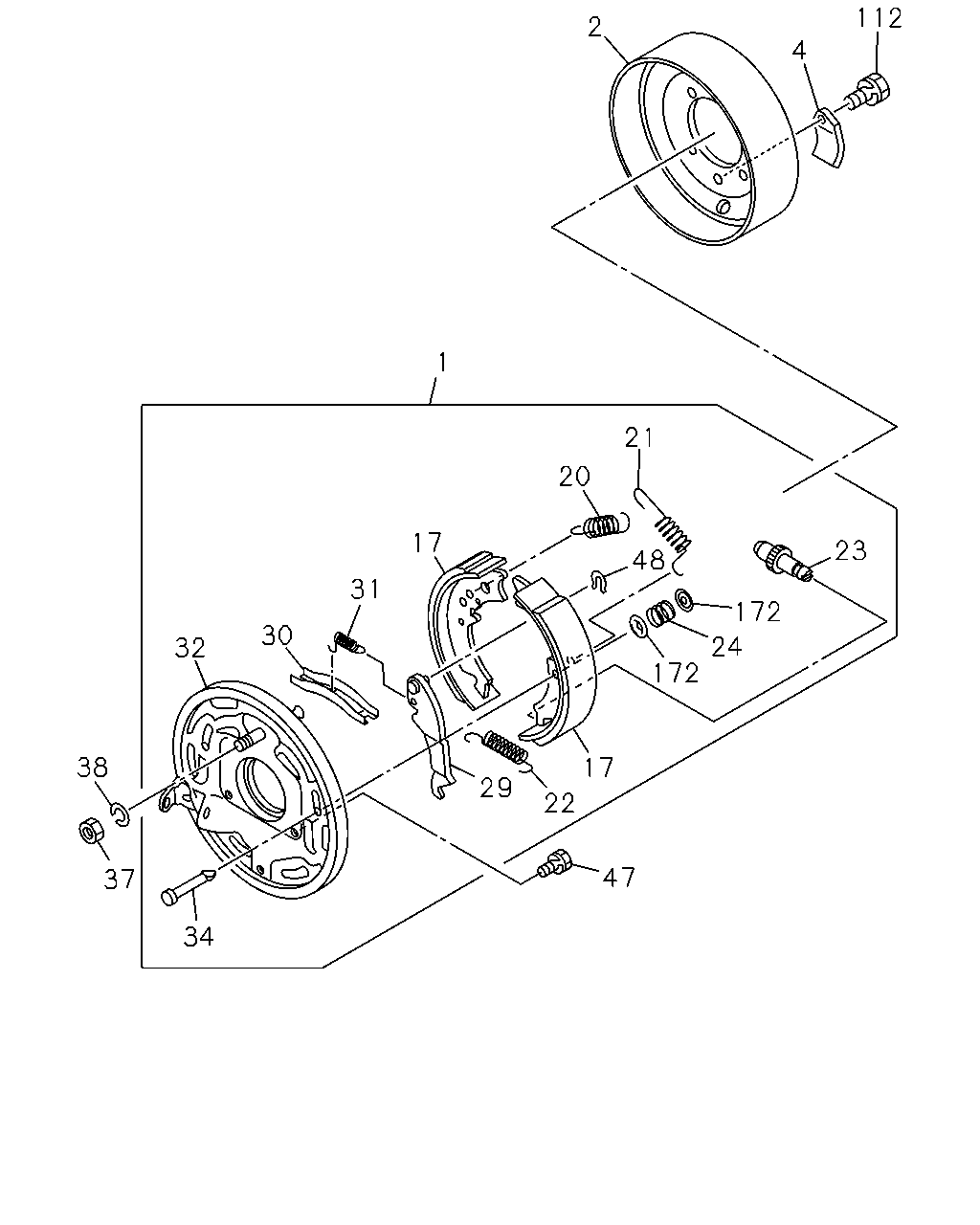

3-08 — PARKING BRAKE
(#162061) — 20 parça
38
37
34
32
30
31
17
20
21
48
29
22
17
47
172
24
172
23
1
2
4
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRAKE ASM; CENTER,PARKING
8-97034-553-2
01
1
1507-
2
DRUM; PARKING BRK
5-46210-005-3
01
1
1507-
4
COVER; ADJ HOLE
5-42319-003-0
01
1
1507-
17
SHOE; PARKING BRK
8-97042-933-1
02
1
1507-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-553-1
01
1
1507-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-552-1
01
1
1507-
22
SPRING; ADJ SCREW,PARKING BRK
9-09942-340-1
01
1
1507-
23
SCREW; ADJ,PARKING BRK SHOE
5-47165-025-0
01
1
1507-
24
SPRING; BRK SHOE
9-09941-062-1
02
1
1507-
29
LEVER; PARKING BRK
8-94128-765-0
01
1
1507-
30
STRUT; PARKING BRK
5-46251-007-0
01
1
1507-
31
SPRING; SHOE TO STRUT
9-09942-521-1
01
1
1507-
32
PLATE; SUPPORT,PARKING BRK
9-46213-601-2
01
1
1507-
34
PIN; BRK SHOE
9-47162-034-0
02
1
1507-
37
NUT; SUPPORT PLATE
M12
8-97033-122-0
01
1
1507-
38
WASHER; LK,SUPPORT PLATE
ID=8.2
0-91510-808-0
02
1
1507-
47
BOLT; SUPPORT PLATE
8-98073-190-0
02
1
1507-
48
RETAINER; PIN,PARKING BRK
9-46349-005-1
01
1
1507-
112
BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER
0-50540-616-0
01
1
1507-
172
CUP; SHOE HOLD
8-94378-404-0
04
1
1507-
