51625 - ELF100(MEXICO)
▶
3 - Brakes, Brake System
▶

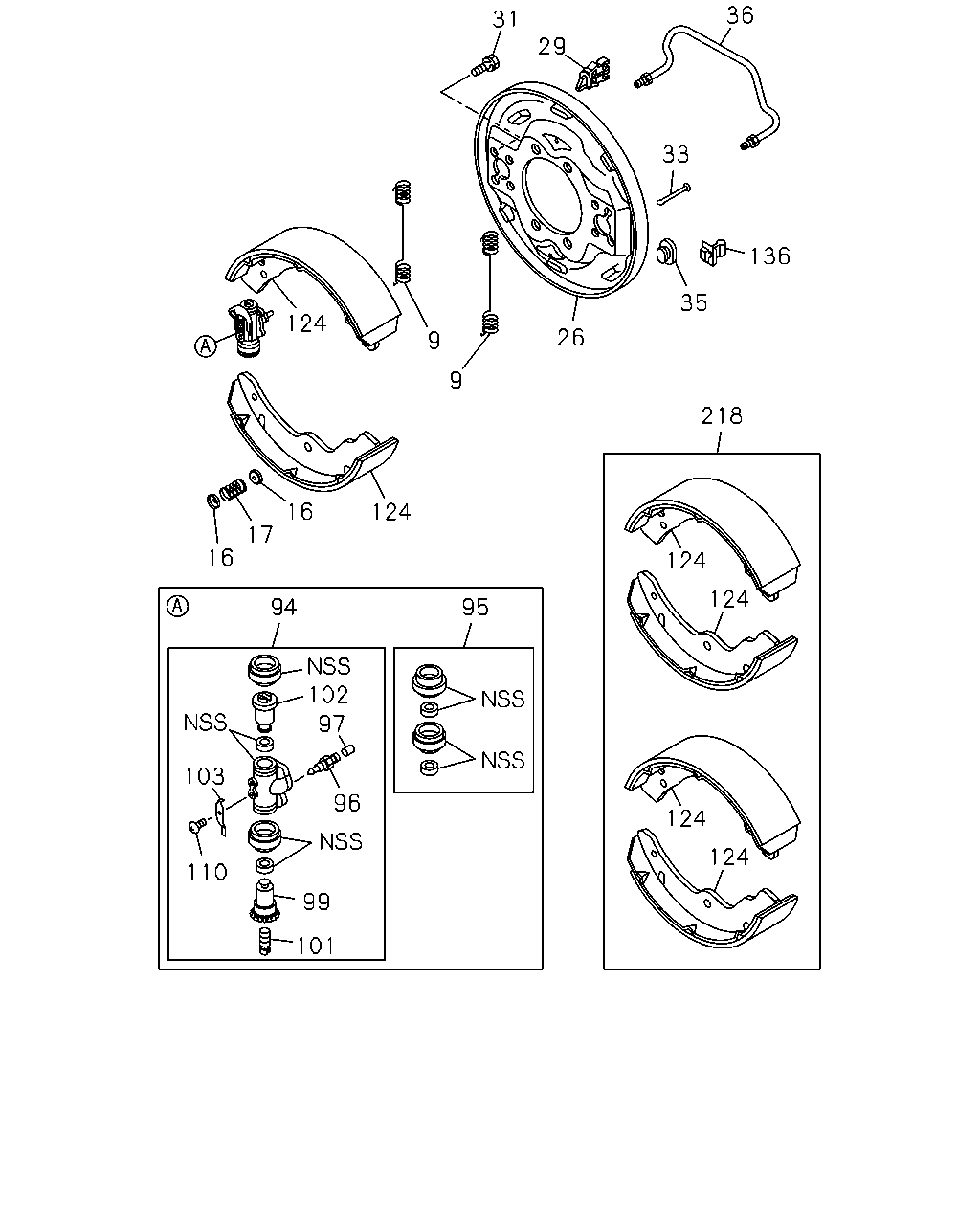

3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#162060) — 24 parça
31
29
33
136
36
35
26
218
9
9
124
124
16
17
16
94
102
95
97
96
99
101
110
103
124
124
124
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
SPRING; RETURN,BRK SHOE
8-97078-739-0
04
1
1507-
16
CUP; SHOE HOLDING
9-47162-033-0
08
1
1507-
17
SPRING; SHOE HOLD DOWN
9-09940-989-1
04
1
1507-
26
PLATE; BACK,RR BRK
8-97093-934-0
01
1
1507-
26
PLATE; BACK,RR BRK
8-97093-935-0
01
1
1507-
29
CLIP; PIPE,BRK
8-94128-307-0
02
1
1507-
31
BOLT; RR WHEEL CYL
5-09030-036-1
16
1
1507-
33
PIN; SHOE HOLD DOWN
9-47162-607-0
04
1
1507-
35
GROMMET; CHECK HOLE
8-94344-919-0
02
1
1507-
36
PIPE; OIL,RR BRK
8-94128-192-0
02
1
1507-
94
CYLINDER; WHEEL,RR BRK
FRONT
8-97179-335-0
01
1
1507-
94
CYLINDER; WHEEL,RR BRK
REAR
8-97179-336-0
01
1
1507-
94
CYLINDER; WHEEL,RR BRK
8-97179-337-0
02
1
1507-
95
CUP SET; RR WHEEL CYL
5-87831-625-0
01
1
1507-
96
SCREW; BLEEDER,RR BRK
8-98050-476-0
01
1
1507-
97
CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
01
1
1507-
99
PISTON; RR WHEEL CYL
8-97081-149-0
04
1
1507-
101
SCREW; ADJ,RR WHEEL CYL
8-97078-623-0
04
1
1507-
102
PISTON; REAR WHEEL CYL
D=22.22
8-94128-533-1
04
1
1507-
103
SPRING; LK,RR WHEEL CYL,ADJ
8-94128-486-0
04
1
1507-
110
SCREW; LOCK SPRING,RR WHEEL CYL
8-94128-727-0
04
1
1507-
124
SHOE ASM; BRK,RR
8-97035-085-1
04
1
1507-
136
GROMMET
9-09956-640-0
04
1
1507-
218
SHOE KIT; BRK,RR
5-87832-045-0
01
1
1507-
