Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

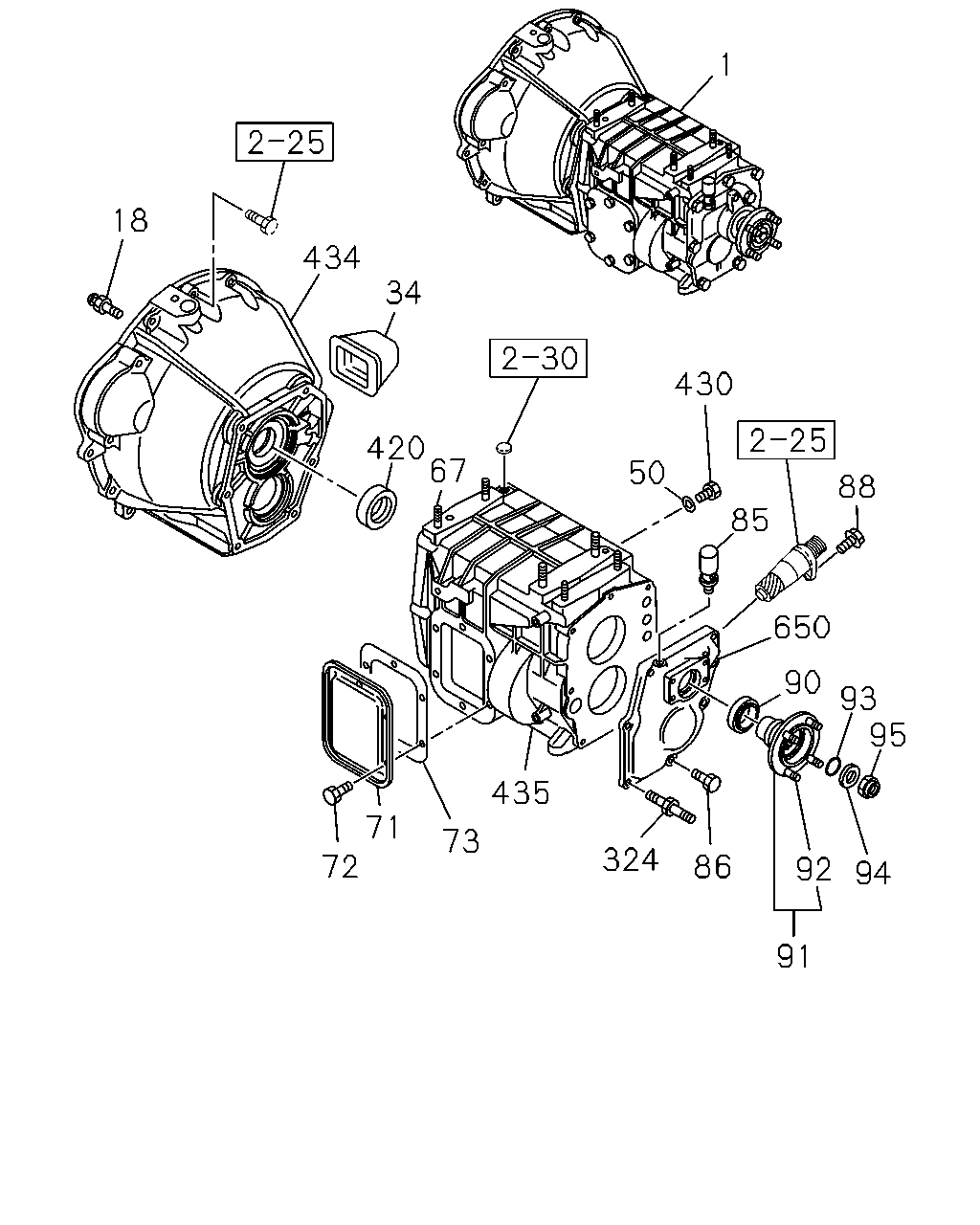

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#162051) — 23 parça
18
434
420
72
73
71
435
324
86
91
92
95
94
93
90
650
88
85
50
430
67
34
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
8-98214-130-0
01
1
1507-
18
SUPPORT; DRAW LEVER
L=47.5
8-98189-389-0
01
1
1507-
34
COVER; DUST,SHIFT FORK
8-98190-416-0
01
1
1507-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.5
8-98189-969-0
01
1
1507-
67
STUD; CASE TRANS
8-98189-390-0
06
1
1507-
71
COVER; SIDE,TRANS CASE
8-98189-244-0
01
1
1507-
72
BOLT; SIDE COVER
M10X12 FLANGE
0-28051-012-0
06
1
1507-
73
GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
8-98189-272-0
01
1
1507-
85
BREATHER; RR COVER
8-98189-454-0
01
1
1507-
86
BOLT; RR COVER
M8X25 FLANGE
0-28050-825-0
04
1
1507-
88
SCREW; SPEEDOMETER BUSHING
M8X12 FLANGE
0-28050-812-0
01
1
1507-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-98189-443-0
01
1
1507-
91
DRIVER; COUPLING
8-98190-298-0
01
1
1507-
92
BOLT; COUPLING DRIVER
M10X33
8-98189-989-0
04
1
1507-
93
GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T).
8-98189-967-0
01
1
1507-
94
WASHER; COUPLING DRIVER
8-98189-951-0
01
1
1507-
95
NUT; MAINSHAFT
M24 FLANGE
8-98189-932-0
01
1
1507-
324
STUD; RR COVER
8-98189-391-0
03
1
1507-
420
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-98189-424-0
01
1
1507-
430
PLUG; OIL DRAIN
8-98190-430-0
01
1
1507-
434
HOUSING; CLU
8-98188-568-0
01
1
1507-
435
CASE; TRANS
8-97373-564-0
01
1
1507-
650
COVER; RR
8-97174-087-0
01
1
1507-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
