Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

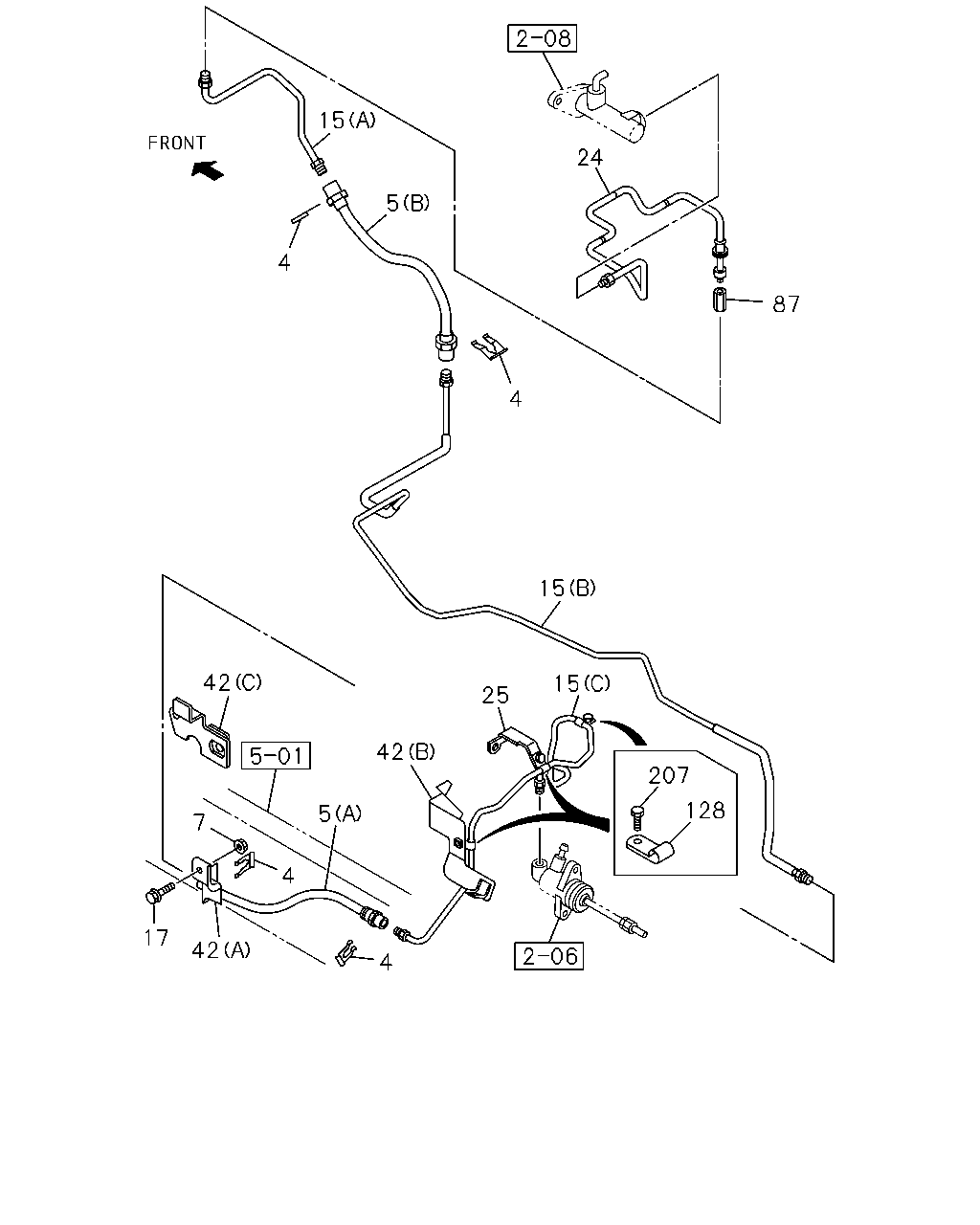

2-05 — CLUTCH PIPING
(#162047) — 16 parça
15
4
5
24
87
4
42
15
15
25
42
7
5
207
128
4
42
17
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
04
1
1507-
5
HOSE; FLEX,CLU PIPE
(B)
8-98090-655-0
01
1
1507-
5
HOSE; FLEX,CLU PIPE
(A)
8-98227-954-1
01
1
1507-
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE
0-91180-108-0
01
1
1507-
15
PIPE; CLU,FLEX HOSE
(A)
8-97328-481-0
01
1
1507-
15
PIPE; CLU,FLEX HOSE
(B)
8-98188-224-0
01
1
1507-
15
PIPE; CLU,FLEX HOSE
(C)
8-98272-493-0
01
1
1507-
17
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1507-
24
PIPE ASM; CLU,M/CYL TO UNION
8-97094-343-2
01
1
1507-
25
BRACKET; OIL PIPE
8-97013-211-1
01
1
1507-
42
BRACKET; FLEX HOSE,CLU CONT
(A)
8-97063-755-0
01
1
1507-
42
BRACKET; FLEX HOSE,CLU CONT
(B)
8-98246-414-1
01
1
1507-
42
BRACKET; FLEX HOSE,CLU CONT
(C)
8-98272-480-0
01
1
1507-
87
UNION; OIL PIPE
M12 STRAIGHT
0-92107-006-0
01
1
1507-
128
CLIP; AIR PIPE
ID=7 L=16
0-95234-622-0
03
1
1507-
207
BOLT; CLIP
M6X12 FLANGE
0-28050-612-0
03
1
1507-
