◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#162046) — 20 parça

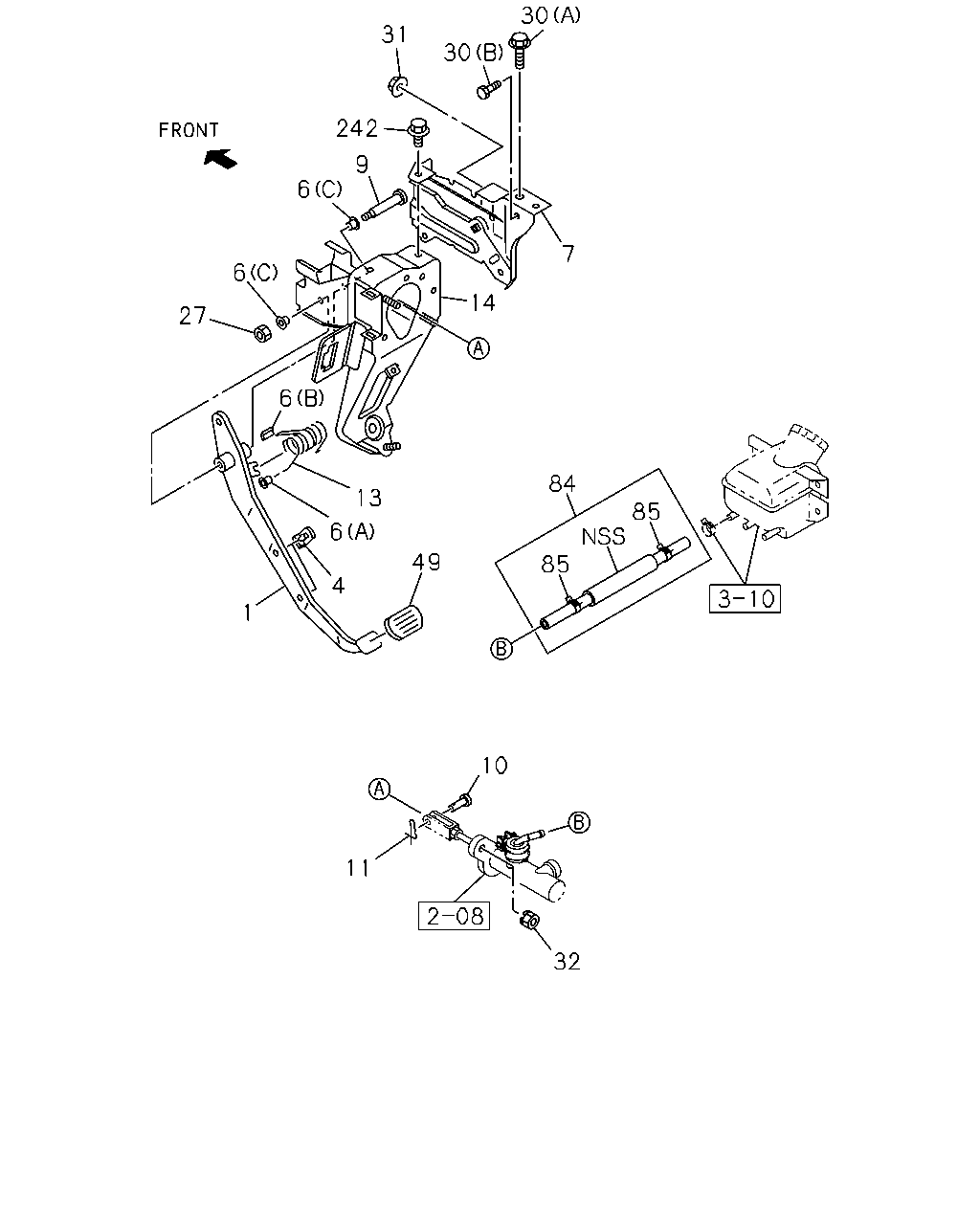

çizim 479628
31 30 30 242 6 6 27 14 7 6 13 6 4 1 11 10 32 49 85 84 85 9
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU 8-97853-219-2 01 1 1507-
4 STOPPER; CLU PEDAL 8-97853-534-1 02 1 1507-
6 BUSHING; CLU PEDAL
(C) 		8-94238-596-0 02 1 1507-
6 BUSHING; CLU PEDAL
(A) 		8-97853-619-0 02 1 1507-
6 BUSHING; CLU PEDAL
(B) 		8-97853-620-0 01 1 1507-
7 BRACKET; CLU PEDAL 8-97856-307-3 01 1 1507-
9 PIN; CLU PEDAL 8-97866-667-0 01 1 1507-
10 PIN; CLU PEDAL 8-97359-812-0 01 1 1507-
11 PIN; SNAP,PUSH ROD TO PEDAL 8-94279-912-0 01 1 1507-
13 SPRING; ASSIST,CLU PEDAL 8-97853-221-1 01 1 1507-
14 BRACKET ASM; CLU PEDAL MTG 8-97892-859-1 01 1 1507-
27 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 1507-
30 BOLT; CLU MTG BRKT
(A) M10X25 FLANGE 		0-28661-025-0 01 1 1507-
30 BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1507-
31 NUT; MTG BRKT TO BODY
M8 W/LK WASHER 		8-94279-050-0 02 1 1507-
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1507-
49 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 1507-
84 HOSE; RUBBER,CLU LINE 8-98193-588-1 01 1 1507-
85 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1507-
242 BOLT; BRKT,CLUTCH
M8X16 FLANGE 		0-28450-816-0 02 1 1507-
