1-40 — FUEL TANK (#162040) — 18 parça

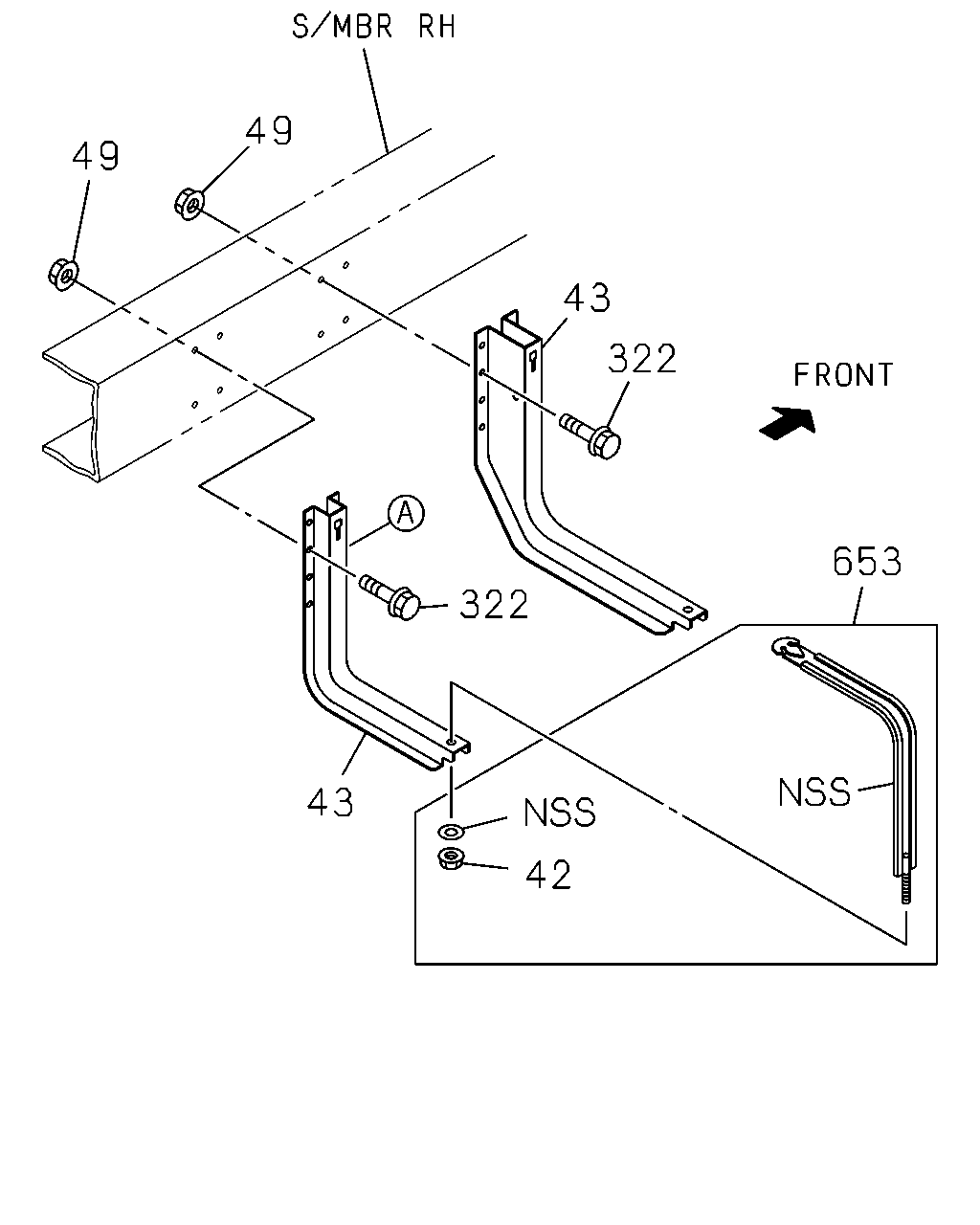

49 49 43 322 653 322 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1507-
43	BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	1507-
43	BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	1507-
49	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	1507-
322	BOLT; BRKT FIX M10X30 FLANGE	0-28661-030-0	06	1	1507-
653	BAND KIT; FUEL TANK	5-87411-970-0	02	1	1507-

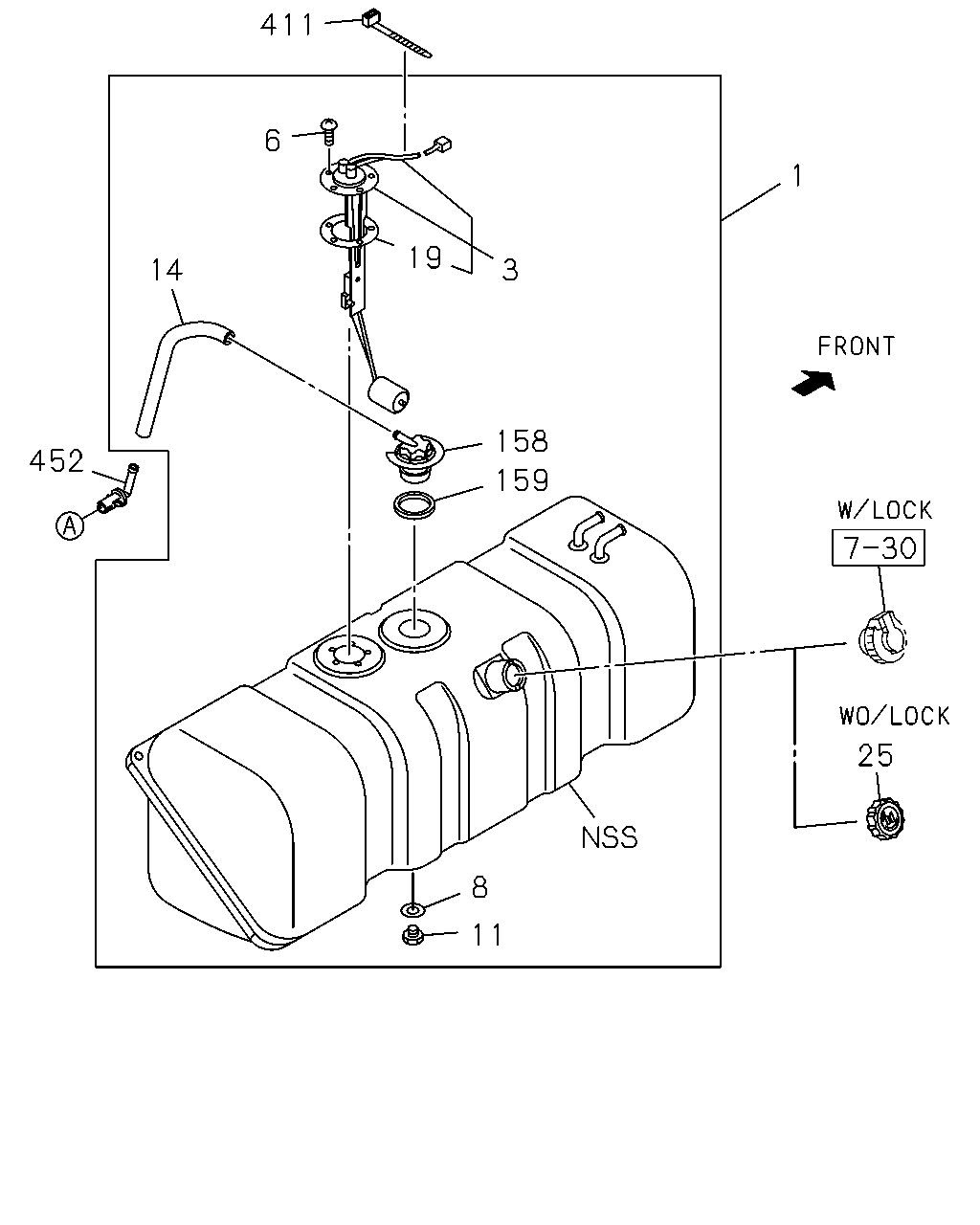

1 411 6 14 19 3 158 159 25 8 11 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL 732X375X375 75L	8-98280-480-0	01	1	1507-
3	UNIT; FUEL TANK,SUB	8-98278-778-0	01	1	1507-
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	0-36220-510-0	05	1	1507-
8	GASKET; DRAIN PLUG,FUEL TANK ID=8.2 OD=17	9-09572-008-0	01	1	1507-
11	PLUG; DRAIN,FUEL TANK M8X12 FLANGE	0-28050-812-0	01	1	1507-
14	HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	1507-
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1507-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-94258-609-1	01	1	1507-
158	VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1507-
159	SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1507-
411	CLIP; FUEL TANK UNIT HARNESS L=140	5-09707-031-1	02	1	1507-
452	BREATHER; FUEL TANK	8-97357-261-0	01	1	1507-
