1-31 — AIR DUCT (#162038) — 109 parça

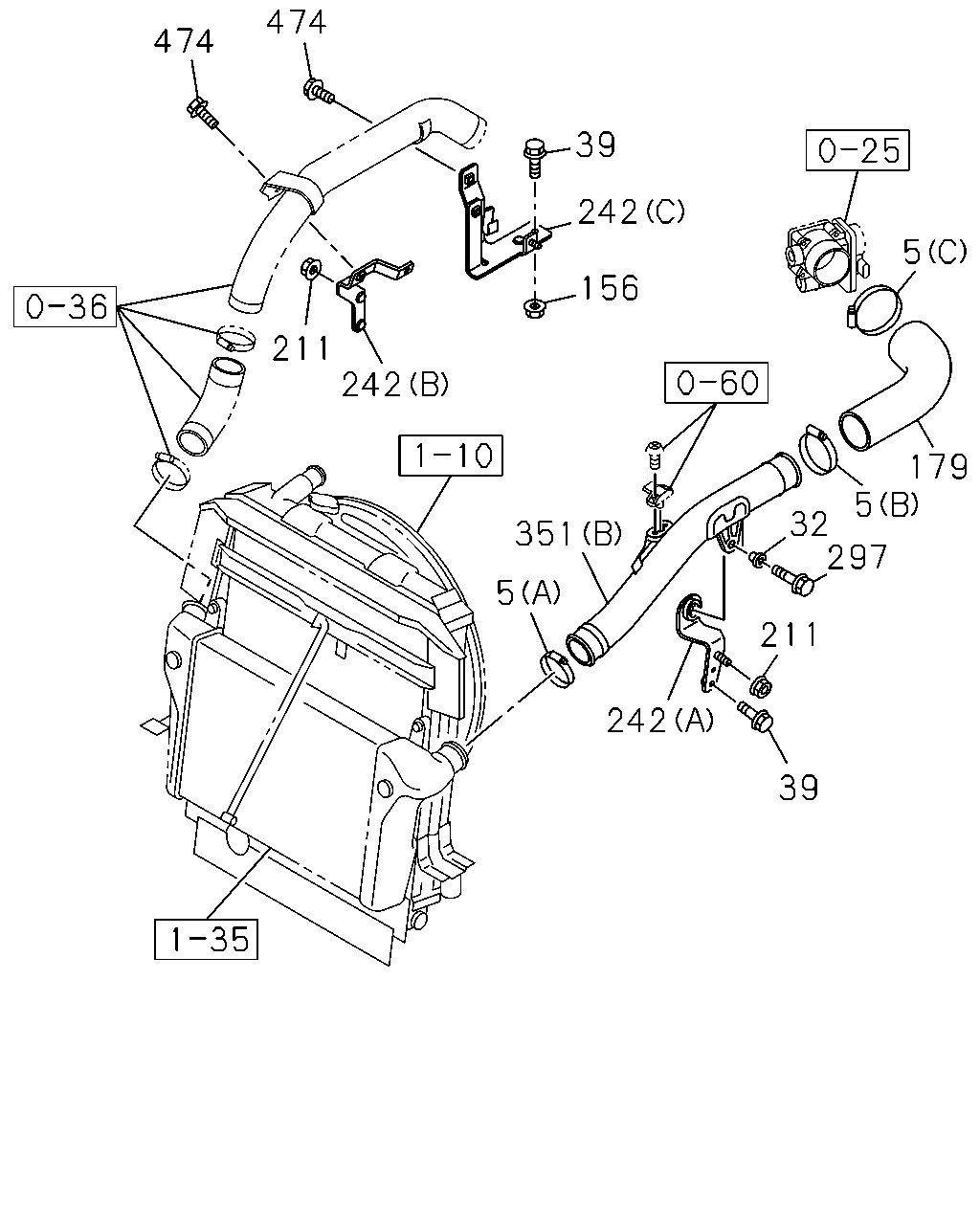

çizim 479363
179 32 297 211 242 39 474 474 211 242 39 156 242 351 5 5 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 01 1 1507-
5 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1507-
5 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1507-
5 CLIP; AIR DUCT
(D) ID=127 		1-14239-263-0 01 1 1507-
5 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1507-
5 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 01 1 1507-
5 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1507-
32 RUBBER; AIR DUCT MTG
OD=23 		8-97105-689-6 01 1 1507-
39 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1507-
156 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1507-
179 HOSE; AIR INT 8-98245-592-1 01 1 1507-
211 NUT; BRKT
M8 W/DISHED WASHER 		8-97329-625-0 01 1 1507-
242 BRACKET; AIR DUCT
(E) 		8-97312-894-1 01 1 1507-
242 BRACKET; AIR DUCT
(F) 		8-97329-201-0 01 1 1507-
242 BRACKET; AIR DUCT
(D) 		8-97329-306-0 01 1 1507-
242 BRACKET; AIR DUCT
(A) 		8-98222-739-1 01 1 1507-
242 BRACKET; AIR DUCT
(B) 		8-98253-025-0 01 1 1507-
242 BRACKET; AIR DUCT
(C) 		8-98253-046-2 01 1 1507-
242 BRACKET; AIR DUCT
(G) 		8-98290-405-0 01 1 1507-
297 BOLT; DUCT
M8X35 FLANGE 		0-28650-835-0 01 1 1507-
351 DUCT; AIR
(A) 		8-98115-594-0 01 1 1507-
351 DUCT; AIR
(B) 		8-98245-589-0 01 1 1507-
474 BOLT; PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1507-

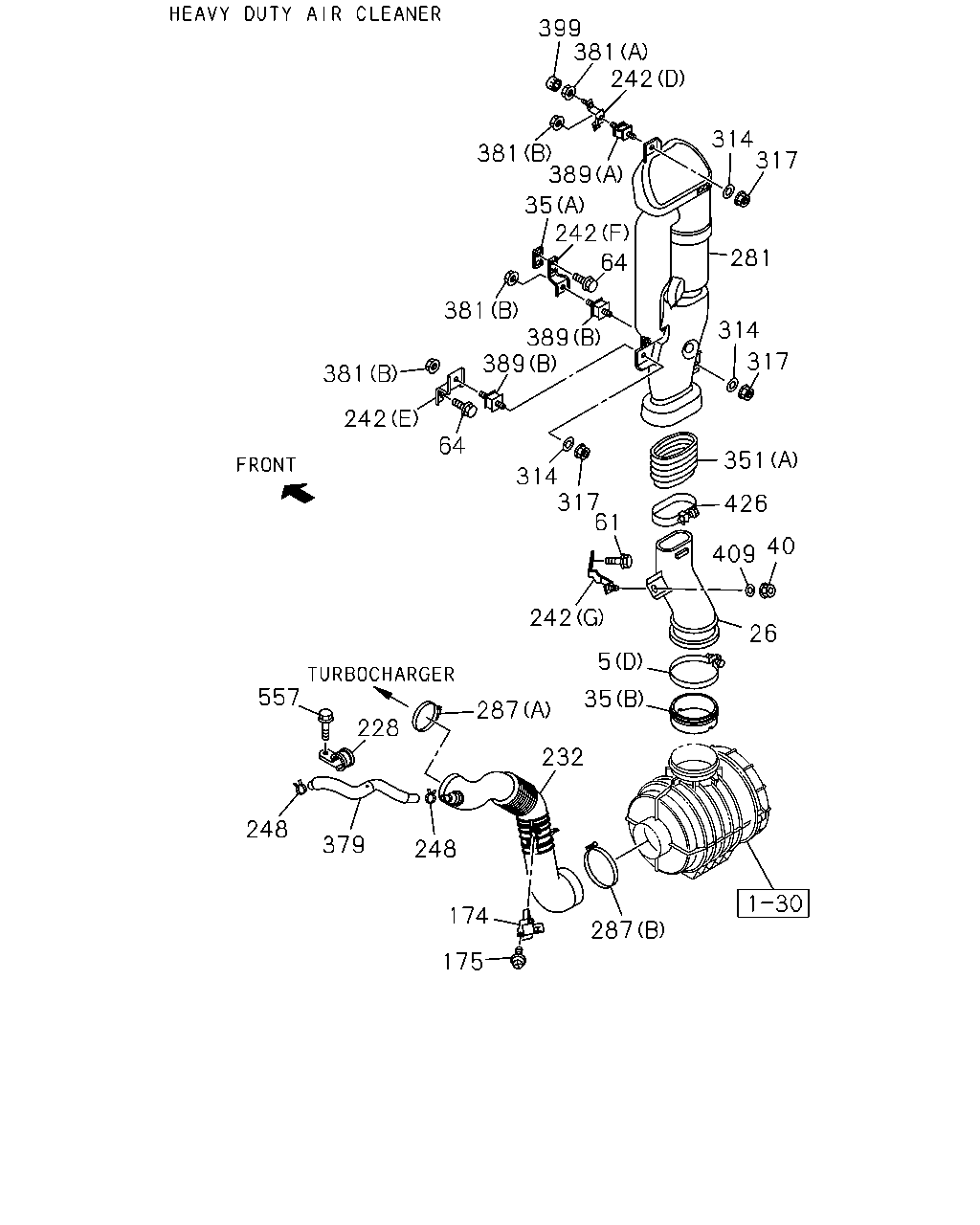

çizim 480015
399 381 381 389 35 242 242 314 281 314 317 317 351 314 242 381 64 381 389 389 64 317 61 242 287 228 557 248 379 248 174 287 232 35 26 5 409 426 40 175
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 01 1 1507-
5 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1507-
5 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1507-
5 CLIP; AIR DUCT
(D) ID=127 		1-14239-263-0 01 1 1507-
5 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1507-
5 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 01 1 1507-
5 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1507-
26 DUCT; AIR INT 8-98023-339-0 01 1 1507-
35 SEAL; DUCT,INT
(A) 		8-97853-699-2 01 1 1507-
35 SEAL; DUCT,INT
(B) 		8-98029-332-0 01 1 1507-
40 NUT; AIR INT DUCT
M10 FLANGE 		0-91180-110-0 01 1 1507-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		0-28650-825-0 01 1 1507-
64 BOLT; BRKT,AIR DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1507-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1507-
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1507-
228 CLIP; PCV HOSE
ID=31 L=44 		8-98170-379-0 01 1 1507-
232 HOSE; CONN 8-98245-586-1 01 1 1507-
242 BRACKET; AIR DUCT
(E) 		8-97312-894-1 01 1 1507-
242 BRACKET; AIR DUCT
(F) 		8-97329-201-0 01 1 1507-
242 BRACKET; AIR DUCT
(D) 		8-97329-306-0 01 1 1507-
242 BRACKET; AIR DUCT
(A) 		8-98222-739-1 01 1 1507-
242 BRACKET; AIR DUCT
(B) 		8-98253-025-0 01 1 1507-
242 BRACKET; AIR DUCT
(C) 		8-98253-046-2 01 1 1507-
242 BRACKET; AIR DUCT
(G) 		8-98290-405-0 01 1 1507-
248 CLIP; RUBBER HOSE
ID=20.4 		8-94121-113-0 02 1 1507-
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-994-2 01 1 1507-
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97369-706-0 01 1 1507-
287 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=65-85 		8-98133-350-0 01 1 1507-
287 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1507-
287 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=70-90 		8-98122-372-0 01 1 1507-
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1507-
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1507-
351 DUCT; AIR
(A) 		8-98115-594-0 01 1 1507-
351 DUCT; AIR
(B) 		8-98245-589-0 01 1 1507-
379 HOSE; RUBBER 8-98245-593-2 01 1 1507-
381 NUT; BRKT,AIR DUCT
(A) M6 FLANGE 		1-09984-018-0 02 1 1507-
381 NUT; BRKT,AIR DUCT
(B) M8 W/LK WASHER 		8-97581-234-0 03 1 1507-
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1507-
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1507-
399 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 1507-
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1507-
426 CLIP; DUCT
D=101.6 		9-09915-502-1 01 1 1507-
557 BOLT; HOSE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1507-

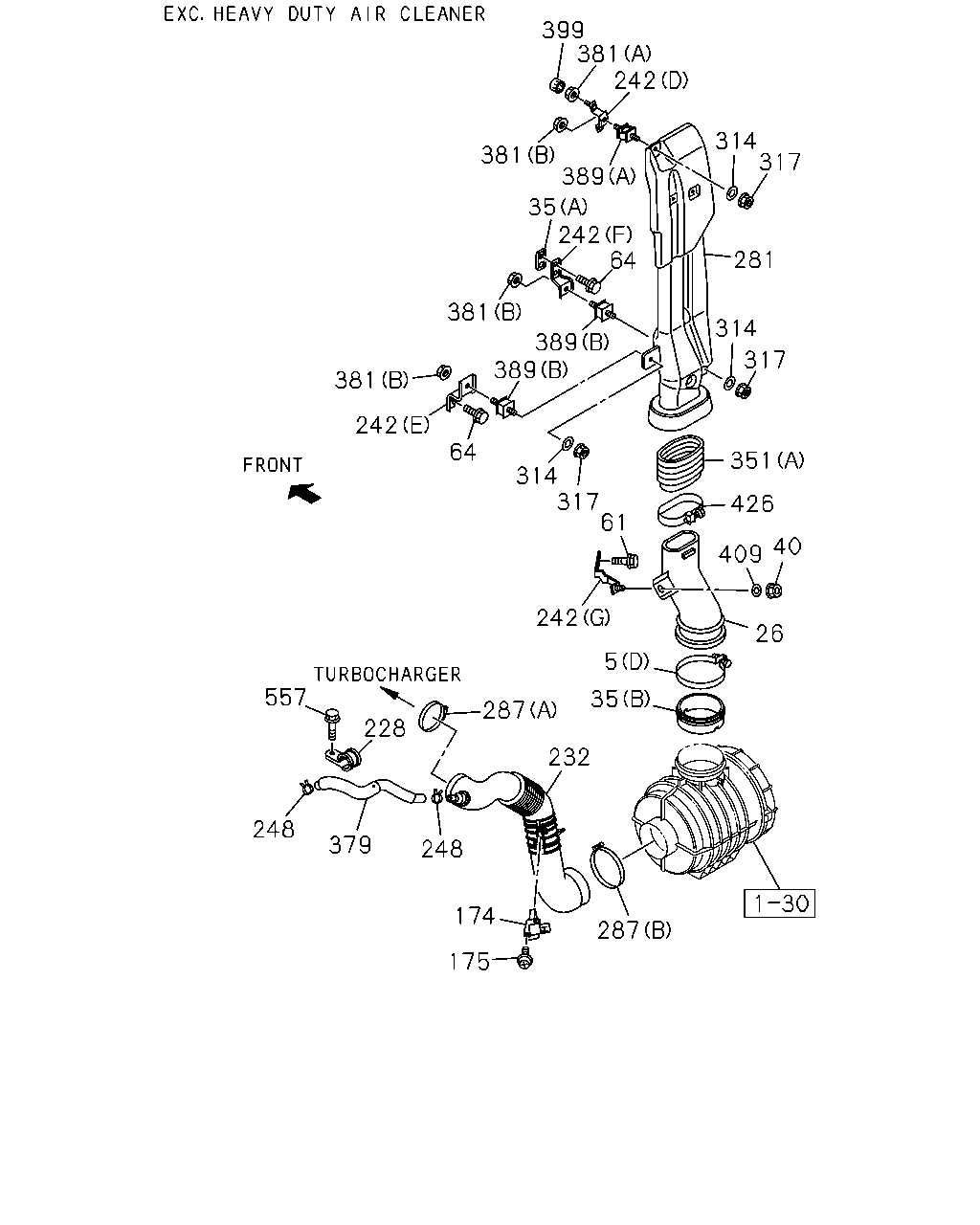

çizim 480047
399 381 35 381 242 389 242 381 314 281 314 317 389 64 389 381 64 242 557 248 228 379 248 287 174 232 287 35 242 317 314 426 317 351 40 409 26 5 61 175
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 01 1 1507-
5 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 01 1 1507-
5 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1507-
5 CLIP; AIR DUCT
(D) ID=127 		1-14239-263-0 01 1 1507-
5 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 01 1 1507-
5 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 01 1 1507-
5 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1507-
26 DUCT; AIR INT 8-98023-339-0 01 1 1507-
35 SEAL; DUCT,INT
(A) 		8-97853-699-2 01 1 1507-
35 SEAL; DUCT,INT
(B) 		8-98029-332-0 01 1 1507-
40 NUT; AIR INT DUCT
M10 FLANGE 		0-91180-110-0 01 1 1507-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		0-28650-825-0 01 1 1507-
64 BOLT; BRKT,AIR DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1507-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1507-
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1507-
228 CLIP; PCV HOSE
ID=31 L=44 		8-98170-379-0 01 1 1507-
232 HOSE; CONN 8-98245-586-1 01 1 1507-
242 BRACKET; AIR DUCT
(E) 		8-97312-894-1 01 1 1507-
242 BRACKET; AIR DUCT
(F) 		8-97329-201-0 01 1 1507-
242 BRACKET; AIR DUCT
(D) 		8-97329-306-0 01 1 1507-
242 BRACKET; AIR DUCT
(A) 		8-98222-739-1 01 1 1507-
242 BRACKET; AIR DUCT
(B) 		8-98253-025-0 01 1 1507-
242 BRACKET; AIR DUCT
(C) 		8-98253-046-2 01 1 1507-
242 BRACKET; AIR DUCT
(G) 		8-98290-405-0 01 1 1507-
248 CLIP; RUBBER HOSE
ID=20.4 		8-94121-113-0 02 1 1507-
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-994-2 01 1 1507-
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97369-706-0 01 1 1507-
287 CLIP; AIR DUCT
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=65-85 		8-98133-350-0 01 1 1507-
287 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1507-
287 CLIP; AIR DUCT
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=70-90 		8-98122-372-0 01 1 1507-
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1507-
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1507-
351 DUCT; AIR
(A) 		8-98115-594-0 01 1 1507-
351 DUCT; AIR
(B) 		8-98245-589-0 01 1 1507-
379 HOSE; RUBBER 8-98245-593-2 01 1 1507-
381 NUT; BRKT,AIR DUCT
(A) M6 FLANGE 		1-09984-018-0 02 1 1507-
381 NUT; BRKT,AIR DUCT
(B) M8 W/LK WASHER 		8-97581-234-0 03 1 1507-
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1507-
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1507-
399 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 1507-
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1507-
426 CLIP; DUCT
D=101.6 		9-09915-502-1 01 1 1507-
557 BOLT; HOSE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1507-
