1-11 — RADIATOR HOSE AND SUB TANK (#162036) — 16 parça

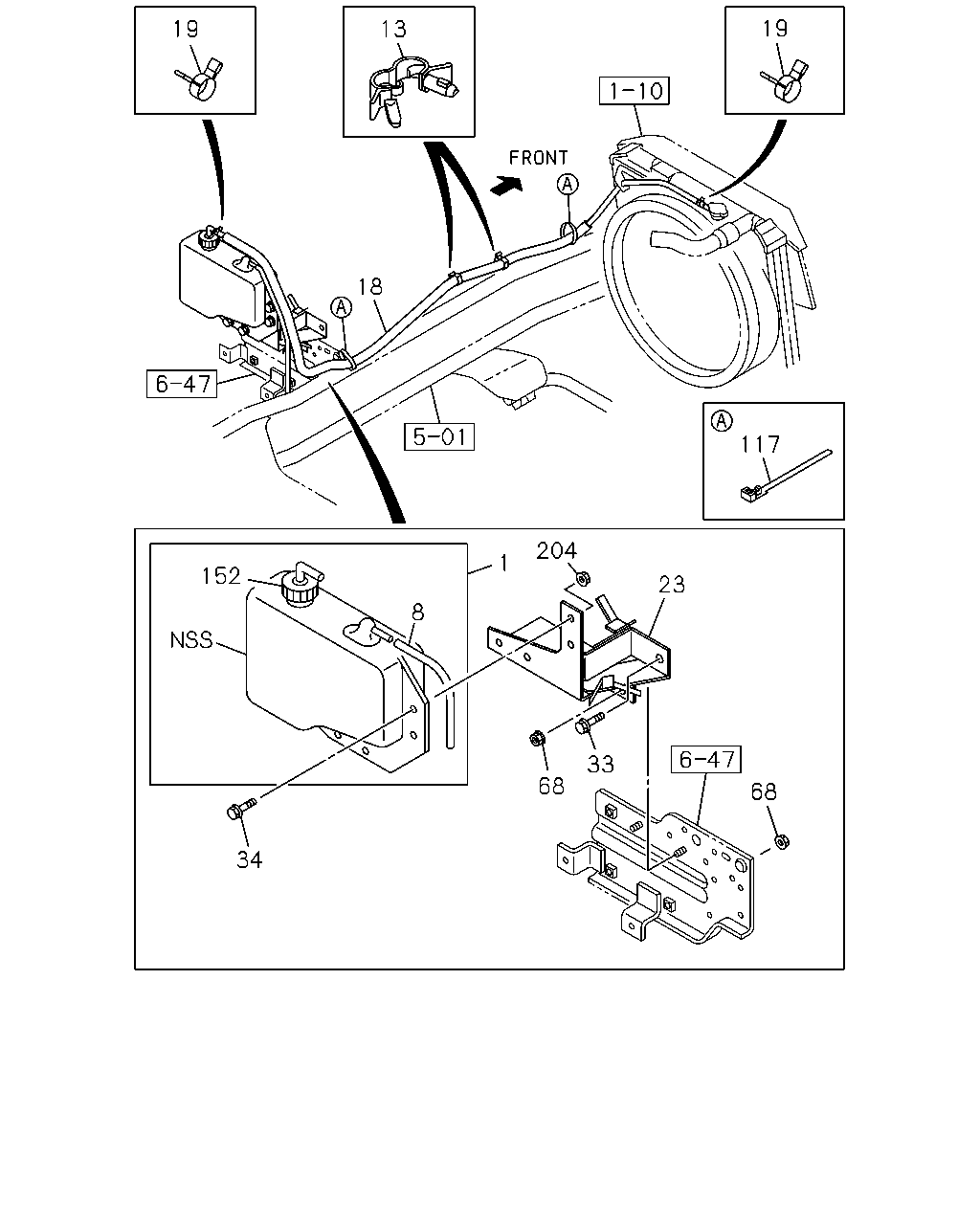

çizim 479348
19 13 19 117 18 152 8 34 1 204 23 33 68 68
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; SURGE,RAD 8-97205-136-1 01 1 1507-
8 HOSE; VINYL
L=500 		1-09366-179-0 01 1 1507-
13 CLIP; HOSE,SURGE TANK
ID=13-18 L=14.5 		1-09709-290-0 02 1 1507-
18 HOSE; RAD TO SURGE TANK 8-98250-858-2 01 1 1507-
19 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 1507-
23 BRACKET; RESERVE TANK 8-97225-271-1 01 1 1507-
33 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1507-
34 BOLT; RESERVE TANK
M8X25 FLANGE 		0-28650-825-0 04 1 1507-
68 NUT; BRKT
M8 FLANGE 		0-91180-208-0 03 1 1507-
117 CLIP; BAND
L=250 		5-09707-030-1 02 1 1507-
152 CAP ASM; SURGE TANK 8-97217-799-0 01 1 1507-
204 NUT; RESERVE TANK
M8 FLANGE 		0-91180-108-0 04 1 1507-
çizim 480136
56 128 56 56 55 56
BalonParca AdiParca NoAdetTipApplied Date
55 HOSE; WATER,RAD OUTLET 8-97260-187-2 01 1 1507-
56 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 03 1 1507-
56 CLIP; WATER HOSE,RAD
(B) ID=42 		8-98133-958-0 01 1 1507-
128 HOSE; WATER,RAD INL 8-97289-369-1 01 1 1507-
