Isuzu WW
▶
TRUCKS
▶
ELF
▶
51625 - ELF100(MEXICO)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#162035) — 44 parça
◀

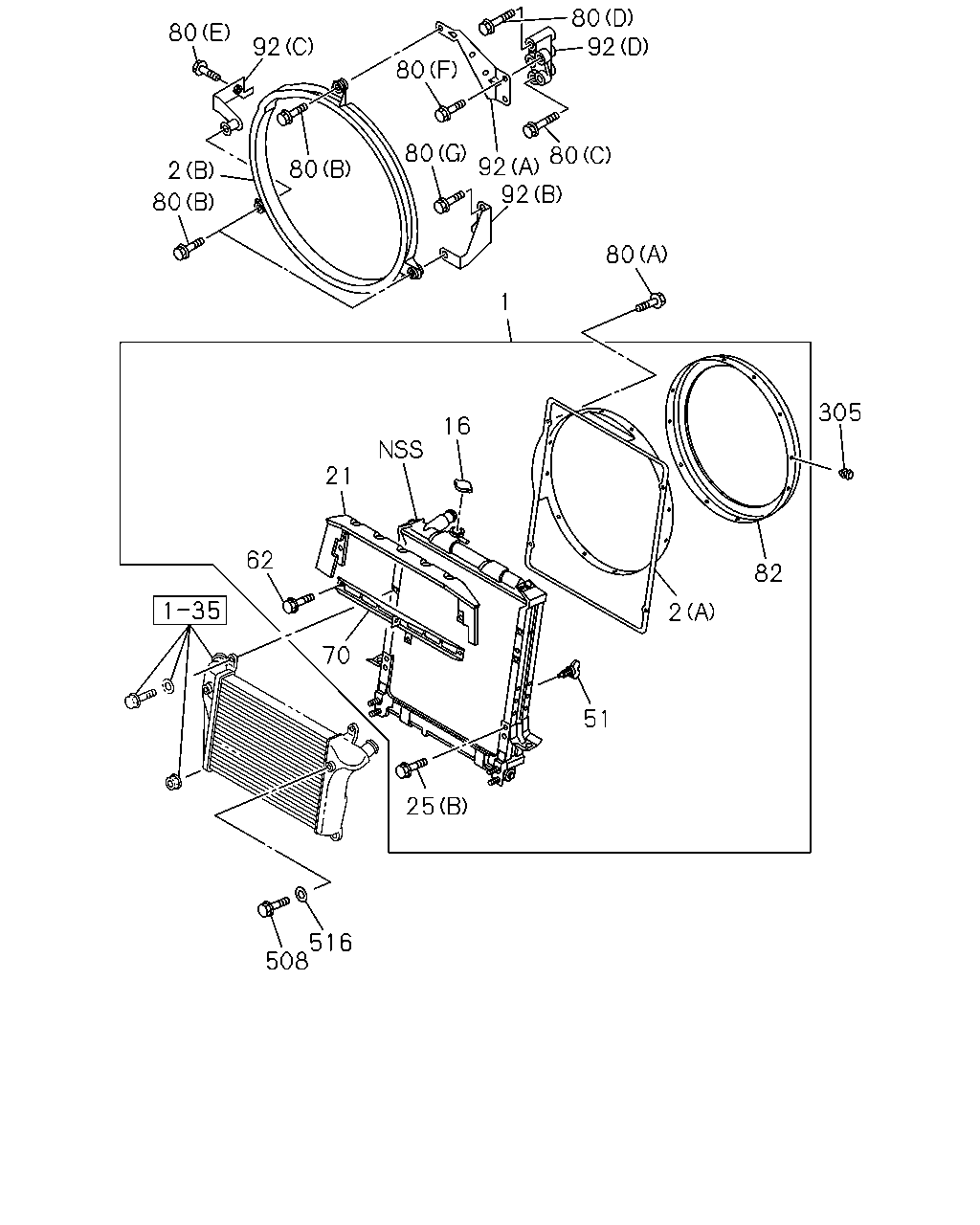

[110A] COMPONENT AND FAN GUIDE (25 parça)

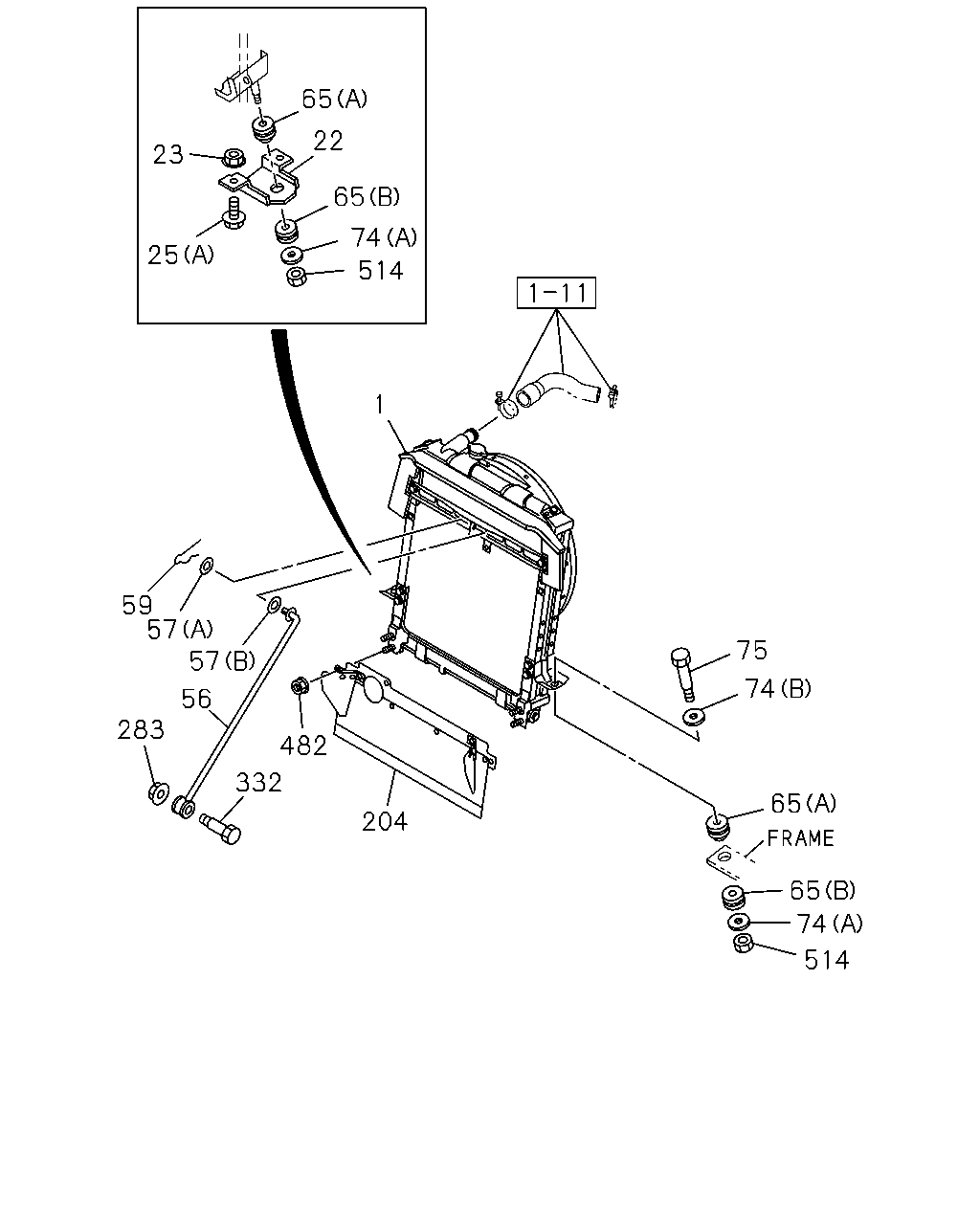

[110A] FIXING (19 parça)
▶
80
1
80
92
92
80
80
80
80
80
2
80
92
305
82
2
16
21
62
70
51
25
516
508
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98213-779-1
01
1
1507-
2
GUIDE; FAN
(B)
8-97287-037-2
01
1
1507-
2
GUIDE; FAN
(A)
8-97350-179-0
01
1
1507-
16
CAP; RAD
8-98096-226-0
01
1
1507-
21
SEAL; RAD
8-98227-081-0
01
1
1507-
25
BOLT; BRKT
(B) M6X12 FLANGE
0-28050-612-0
04
1
1507-
25
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
1507-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1507-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1507-
70
STAY; RAD
8-98018-940-0
01
1
1507-
80
BOLT; FAN GUIDE
(C) M8X60 FLANGE
0-28050-860-0
01
1
1507-
80
BOLT; FAN GUIDE
(G) M8X80 FLANGE
0-28050-880-0
02
1
1507-
80
BOLT; FAN GUIDE
(D) M10X60 FLANGE
0-28051-060-0
01
1
1507-
80
BOLT; FAN GUIDE
(E) M8X20 FLANGE
0-28650-820-0
01
1
1507-
80
BOLT; FAN GUIDE
(F) M10X25 FLANGE
0-28651-025-0
02
1
1507-
80
BOLT; FAN GUIDE
(B) M8X41 W/PL WASHER
8-97264-622-0
03
1
1507-
80
BOLT; FAN GUIDE
(A) M6X12
8-98039-672-0
04
1
1507-
82
COVER; FAN,RAD
8-97260-451-1
01
1
1507-
92
BRACKET; FAN GUIDE
(D)
8-94478-881-1
01
1
1507-
92
BRACKET; FAN GUIDE
(B)
8-97240-139-3
01
1
1507-
92
BRACKET; FAN GUIDE
(A)
8-97253-495-1
01
1
1507-
92
BRACKET; FAN GUIDE
(C)
8-97289-749-1
01
1
1507-
305
CLIP; FAN COVER TO FAN GUIDE
1-09470-009-0
12
1
1507-
508
PLUG
M10X10
1-09604-074-0
01
1
1507-
516
GASKET; PLUG
ID=10.2 OD=16.0
9-09571-410-0
01
1
1507-
65
22
65
74
514
25
23
75
74
65
65
74
514
204
482
332
283
57
57
59
1
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98213-779-1
01
1
1507-
22
BRACKET; RAD MTG
8-94257-949-1
01
1
1507-
23
NUT; RAD MTG
M10 FLANGE
0-91180-110-0
02
1
1507-
25
BOLT; BRKT
(B) M6X12 FLANGE
0-28050-612-0
04
1
1507-
25
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
1507-
56
STAY; RAD
8-97351-495-0
01
1
1507-
57
WASHER; PL,STAY
(A) ID=10.5
0-91610-510-0
01
1
1507-
57
WASHER; PL,STAY
(B) ID=12
8-97011-676-0
01
1
1507-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
01
1
1507-
65
INSULATOR; RAD
(B)
8-94249-346-0
02
1
1507-
65
INSULATOR; RAD
(A)
8-94249-347-0
02
1
1507-
74
WASHER; PL,CUSHION RUBBER
(B) ID=10.5
0-91610-710-0
01
1
1507-
74
WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36
8-97359-049-1
02
1
1507-
75
BOLT; CUSHION RUBBER,RAD MTG
M8X63
8-94249-446-0
01
1
1507-
204
GUIDE ASM; AIR
8-98165-477-1
01
1
1507-
283
NUT; BRKT
M8 FLANGE
8-94178-701-0
01
1
1507-
332
BOLT; BRKT,RAD STAY
M8X45
8-94401-350-0
01
1
1507-
482
NUT; AIR GUIDE
M8 FLANGE
0-91180-108-0
02
1
1507-
514
NUT; RAD
M8 FLANGE
0-91180-108-0
02
1
1507-
