◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51625 - ELF100(MEXICO) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#162034) — 26 parça

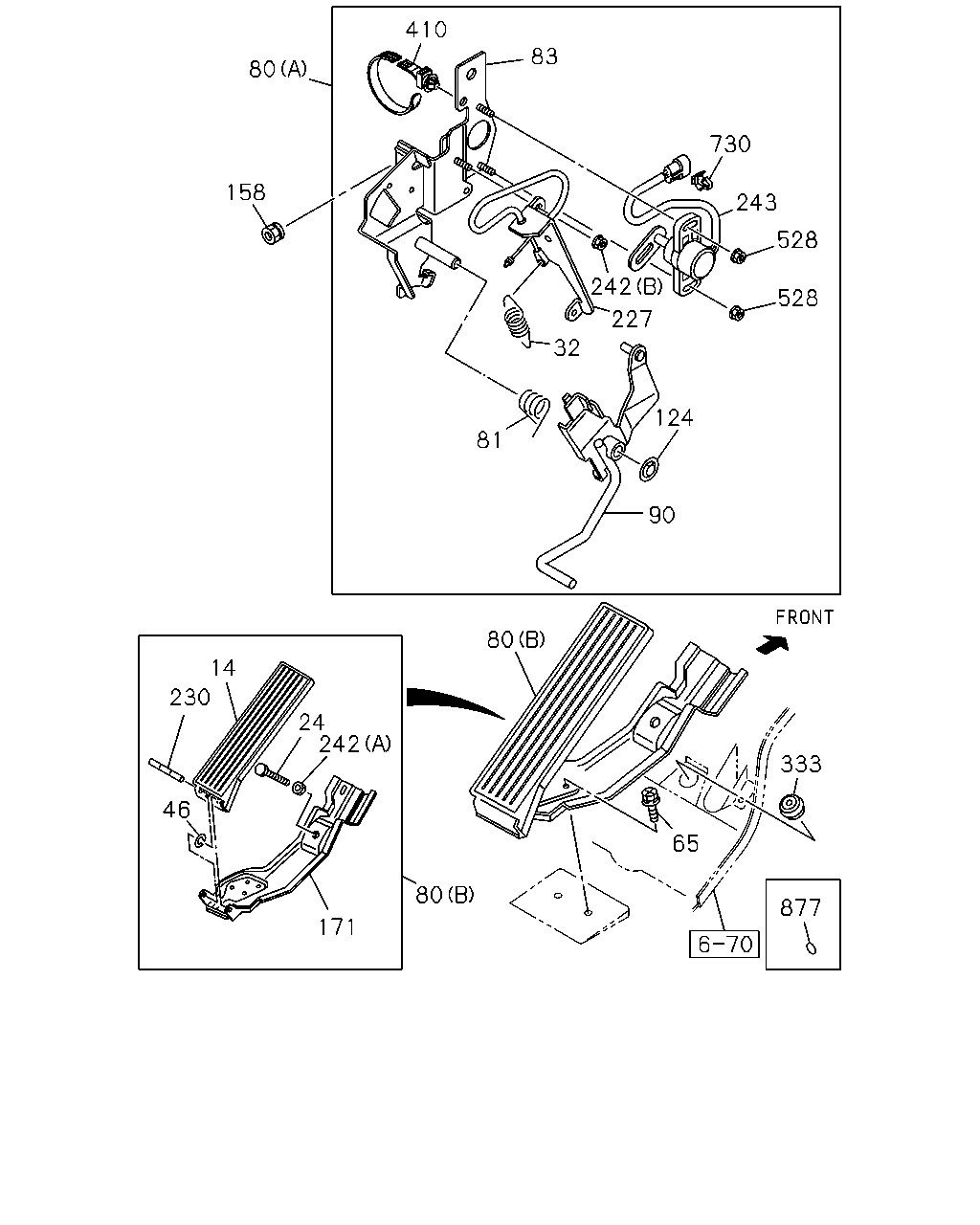

çizim 479302
158 81 90 124 528 528 243 730 242 32 227 80 410 83 80 333 80 171 14 230 46 242 24 65 877
BalonParca AdiParca NoAdetTipApplied Date
14 PAD; PEDAL,ACCEL 8-97859-101-0 01 1 1507-
24 BOLT; BRKT 0-20800-840-0 01 1 1507-
32 SPRING; RETURN,ACCEL PEDAL 8-97997-917-0 01 1 1507-
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 1507-
65 BOLT
M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 1507-
80 LINK ASM; ENG CONT
(B) 		8-97859-100-0 01 1 1507-
80 LINK ASM; ENG CONT
(A) 		8-98032-148-2 01 1 1507-
81 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 1507-
83 BRACKET; CONT LINK 8-98032-263-2 01 1 1507-
90 LEVER; RELAY,ENG CONT 8-97994-590-4 01 1 1507-
124 NUT; LEVER
ID=9.9 PUSH NUT 		8-97012-098-0 01 1 1507-
158 NUT; BRKT
M8 FLANGE 		8-94279-060-0 02 1 1507-
171 BRACKET ASM; ACCEL PEDAL 8-97857-482-1 01 1 1507-
227 CABLE ASM; RETURN,ACCEL PEDAL 8-97892-203-5 01 1 1507-
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 1507-
242 NUT; ACCEL PEDAL
(A) M8 		0-91110-508-0 01 1 1507-
242 NUT; ACCEL PEDAL
(B) M6 W/DISHED WASHER 		8-98029-921-0 01 1 1507-
243 SENSOR; ACCEL 8-98200-050-0 01 1 1507-
333 GROMMET; HOLE,CABLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 1507-
410 CLIP; BAND
L=155 		8-97173-307-0 01 1 1507-
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 1507-
730 CLIP
OD=9 H=6 		8-97368-793-0 01 1 1507-
877 SEAL; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1507-

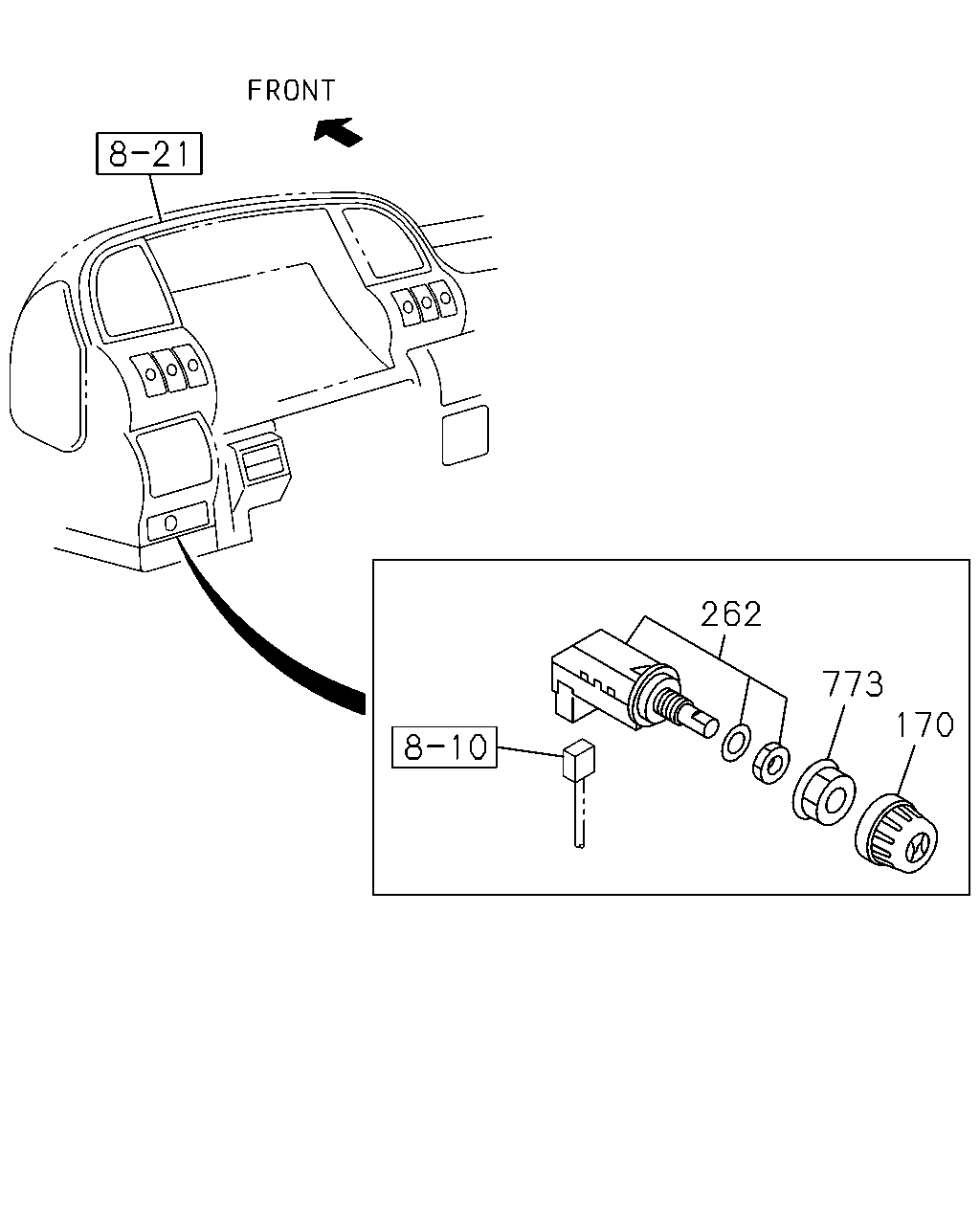

çizim 479968
262 170 773
BalonParca AdiParca NoAdetTipApplied Date
170 KNOB 8-98013-420-0 01 1 1507-
262 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 1507-
773 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 1507-
